AY25-XL-NPP-B
Radial insert ball bearing AY25-XL-NPP-B
Thêm vào yêu cầu báo giá

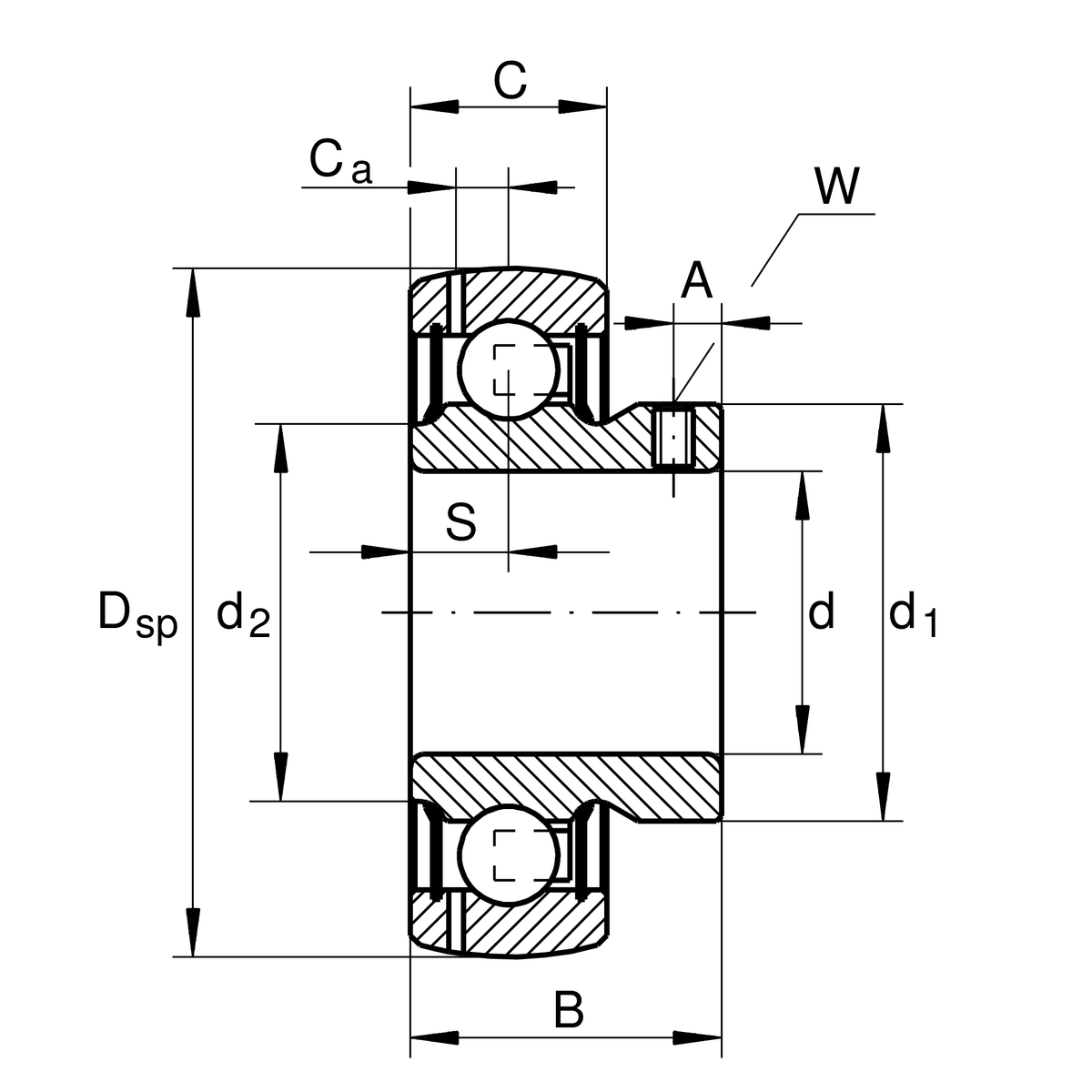

Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
27 mm
Width
Cur
335 N
Fatigue load limit, radial
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.15 kg
Weight

Dimensions
C
15 mm
Width, outer ring
S
7.5 mm
Distance raceway
d1
33.5 mm
Rib diameter inner ring
d2
30.4 mm
Rib diameter sealing inner ring
A
5 mm
Distance thread
W
2.5 mm
Width of flats

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
