FAG INA Schaeffler
INA
89326-M
Axial cylindrical roller bearing 89326-M
Thêm vào yêu cầu báo giá

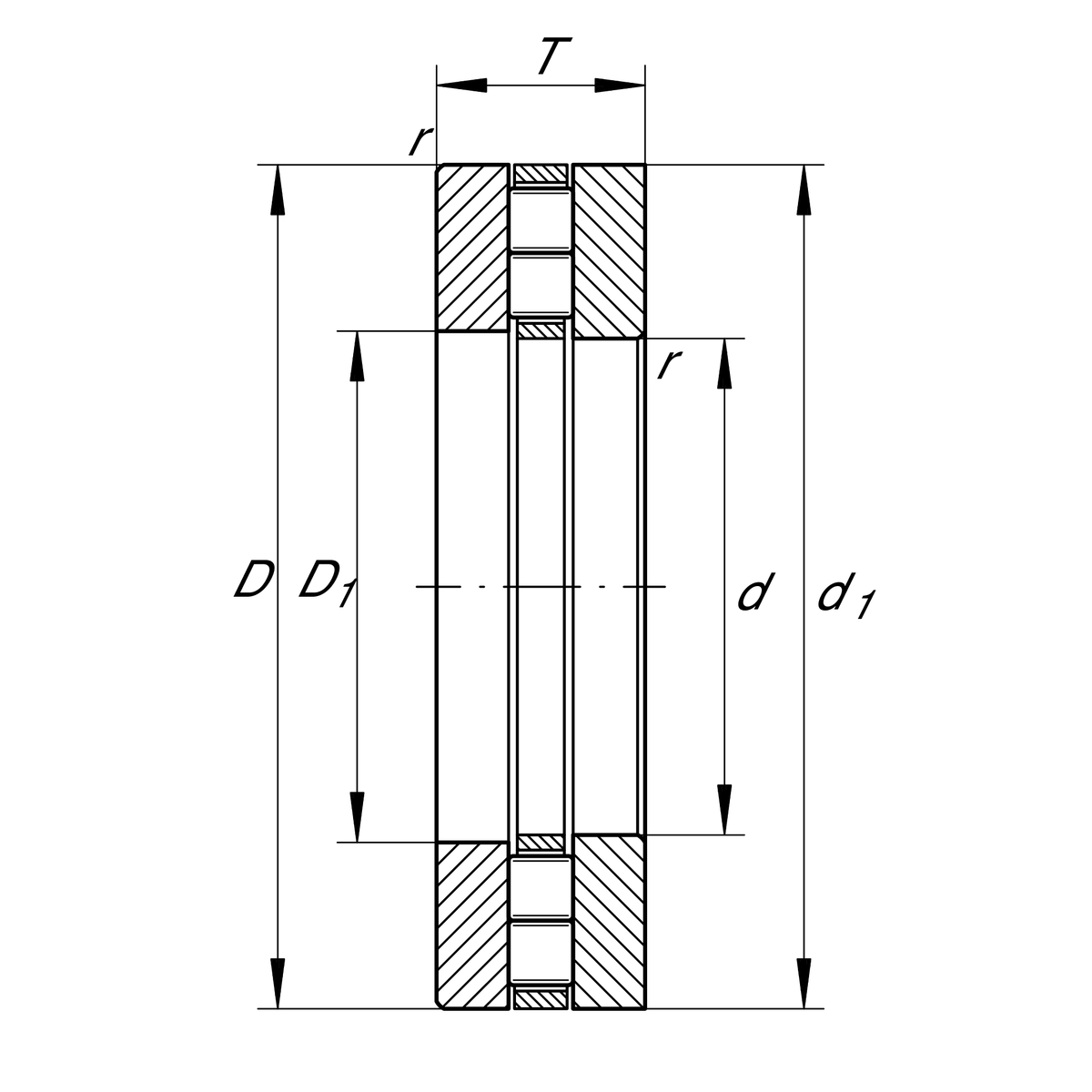

Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
225 mm
Outside diameter
T
58 mm
Height
Ca
720,000 N
Basic dynamic load rating, axial
C0a
2,700,000 N
Basic static load rating, axial
Cua
255,000 N
Fatigue load limit, axial
nG
1,620 1/min
Limiting speed
nϑr
650 1/min
Reference speed
≈m
10.76 kg
Weight

Dimensions
D1
134 mm
Bore diameter housing washer
d1
225 mm
Rip diameter shaft washer
rmin
2.1 mm
Minimum chamfer dimension

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Additional information
K89326-M
Axial roller and cage assembly
GS89326
Housing Washer
WS89326
Shaft washer

Your current product variant
CageMBrass Cage
