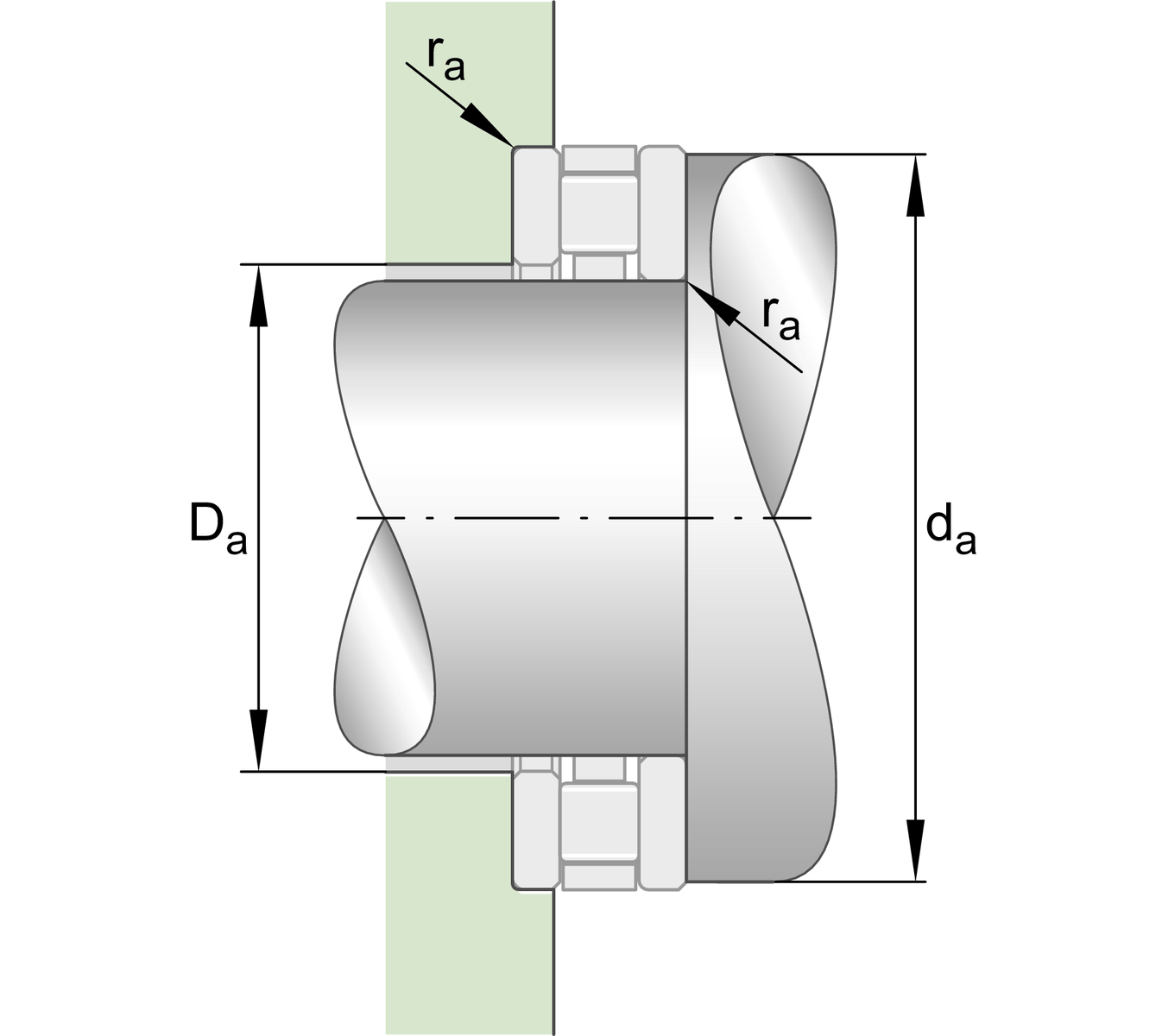

Mounting dimensions
| da | 206 mm | Minimum diameter shaft shoulder |
| Da | 130 mm | Maximum diameter of housing shoulder |
| ra | 2.1 mm | Recess radius |
| ≈m | 9.45 kg | Weight |

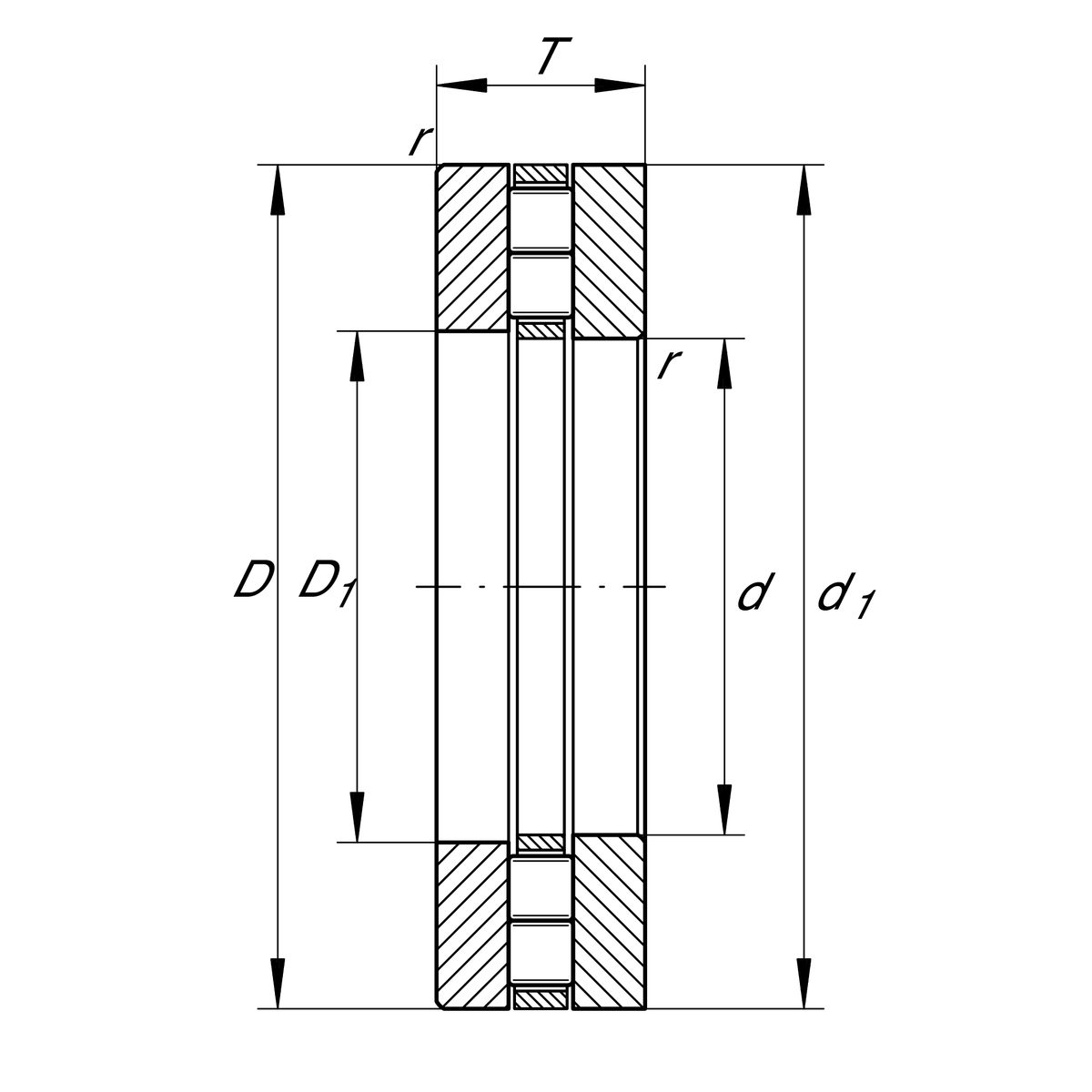

Dimensions
| Dc1 | 120 mm | Cage bore diameter |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K89324-M | Axial roller and cage assembly | |
GS89324 | Housing Washer | |
WS89324 | Shaft washer |
Your current product variant
| Cage | M | Brass Cage |
