GW16
Shaft support block GW16
Thêm vào yêu cầu báo giá

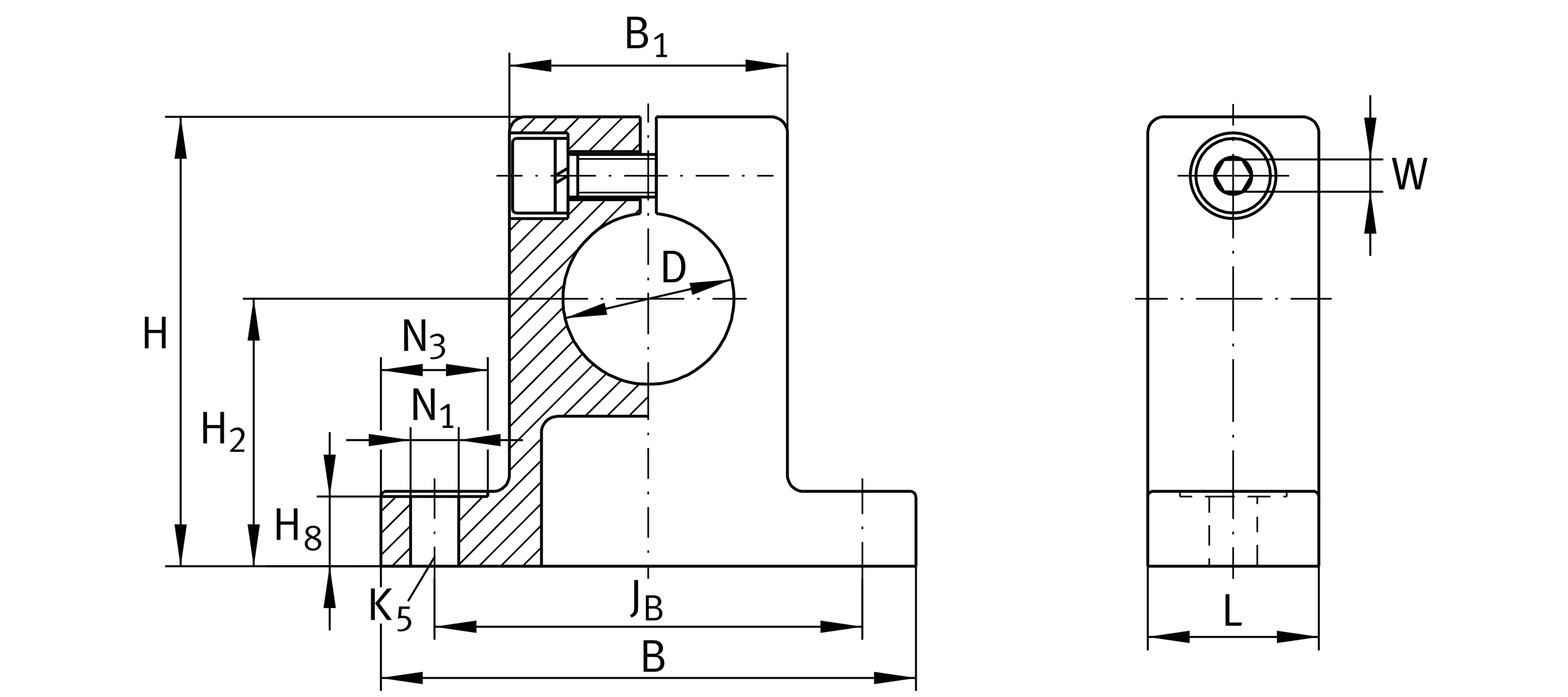

Main Dimensions & Performance Data
D
16 mm
Diameter
B
50 mm
Width
L
16 mm
Length
H
42 mm
Height
≈m
80 g
Weight

Mounting dimensions
JB
40 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
B1
26 mm
Mounting Dimension
H2
25 mm
Mounting Dimension
Tol H2
+0,15
Upper Tolerance
Tol H2
-0,15
Lower tolerance
H8
6.5 mm
Mounting Dimension
N1
4.5 mm
Mounting Dimension 1
N3
10 mm
Mounting Dimension
K5
M4
Size thread fixing screws above
W
3 mm
Width across Flat 2

Your current product variant
Size code16
