FAG INA Schaeffler
INA
GW14
Shaft support block GW14
Thêm vào yêu cầu báo giá

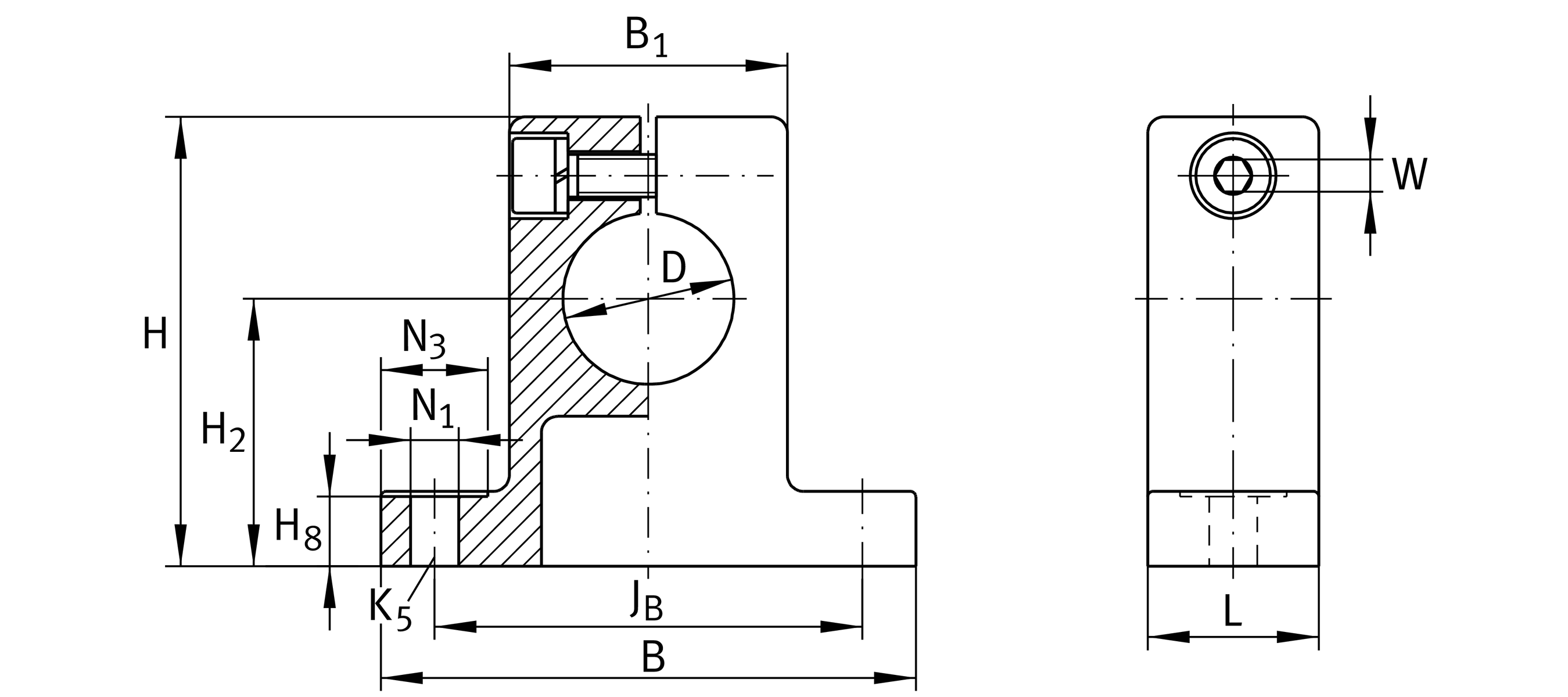

Main Dimensions & Performance Data
D
14 mm
Diameter
B
46 mm
Width
L
14 mm
Length
H
38 mm
Height
≈m
60 g
Weight

Mounting dimensions
JB
36 mm
Mounting Dimension
Tol JB
±0,15
Tolerance
B1
23 mm
Mounting Dimension
H2
22 mm
Mounting Dimension
Tol H2
+0,15
Upper Tolerance
Tol H2
-0,15
Lower tolerance
H8
6 mm
Mounting Dimension
N1
4.5 mm
Mounting Dimension 1
N3
10 mm
Mounting Dimension
K5
M4
Size thread fixing screws above
W
3 mm
Width across Flat 2

Your current product variant
Size code14
