Main Dimensions & Performance Data
| Fw | 20 mm | Under roller diameter |
| D | 28 mm | Outside diameter |
| B | 13 mm | Width |
| Cr | 12,000 N | Basic dynamic load rating, radial |
| C0r | 13,600 N | Basic static load rating, radial |
| Cur | 2,470 N | Fatigue load limit, radial |
| nG | 21,100 1/min | Limiting speed |
| nG Grease | 12,600 1/min | Limiting speed for grease lubrication |
| nϑr | 12,000 1/min | Reference speed |
| ≈m | 22.2 g | Weight |

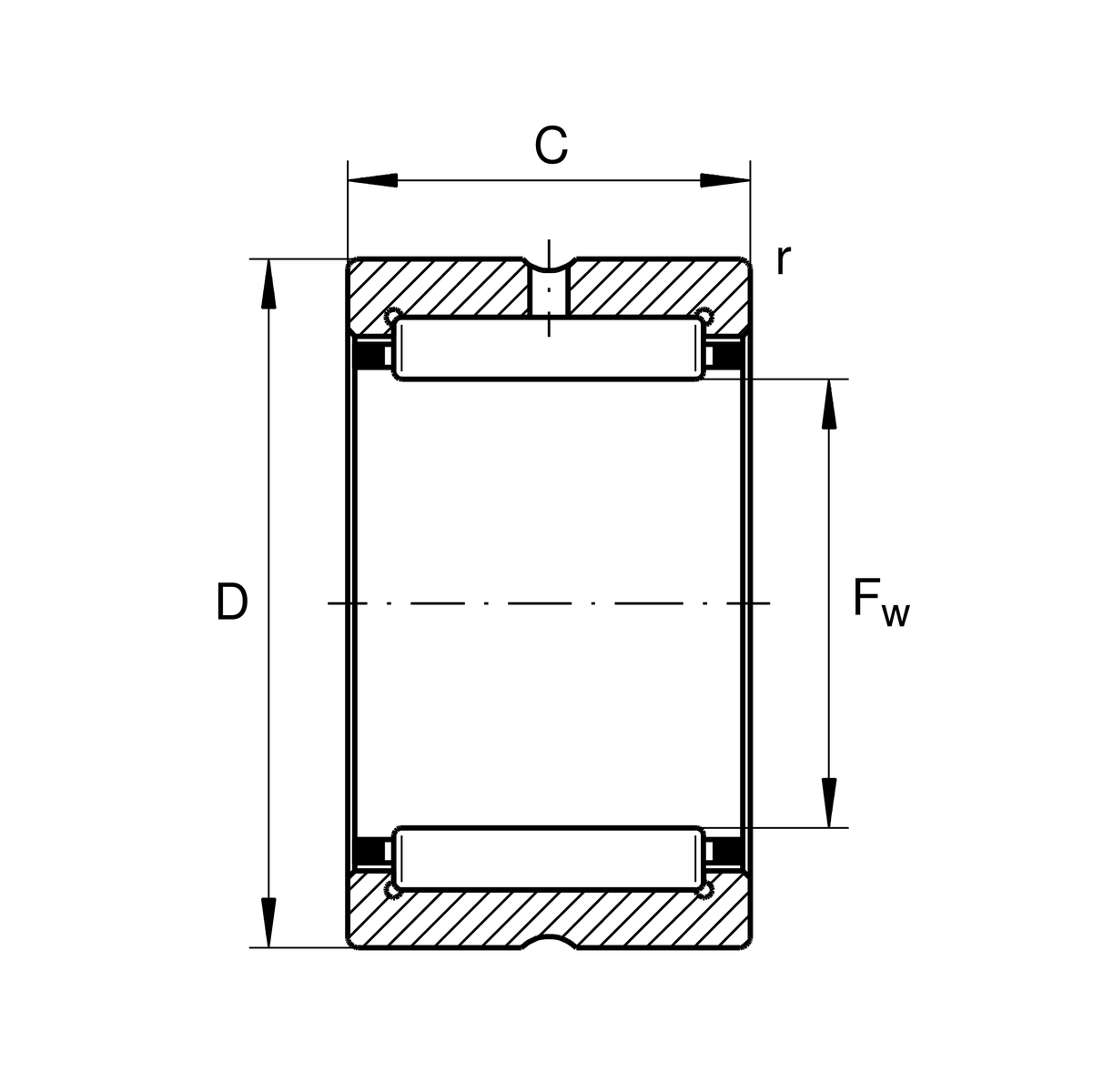

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| C | 13 mm | Width, outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
G20X28X4 | Sealing ring | |
SD20X28X4 | Sealing ring 2 |
Your current product variant
| Cage | Standard | Standard |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Tolerance class | PN | Normal (PN) |
| Lubrication hole | with | with |
| Coating | RR | Protected against corrosion by Corrotect special coating |
| Lubricant | Without | |
| Sealing | Without | |
| Special features | Without | |
| Number of rolling element rows | 1 | Single-row design |
