Main Dimensions & Performance Data
| Fw | 20 mm | Under roller diameter |
| D | 28 mm | Outside diameter |
| B | 13 mm | Width |
| Cr | 9,700 N | Basic dynamic load rating, radial |
| C0r | 10,300 N | Basic static load rating, radial |
| Cur | 2,070 N | Fatigue load limit, radial |
| nG | 12,600 1/min | Limiting speed |
| nG Grease | 12,600 1/min | Limiting speed for grease lubrication |
| ≈m | 19.5 g | Weight |

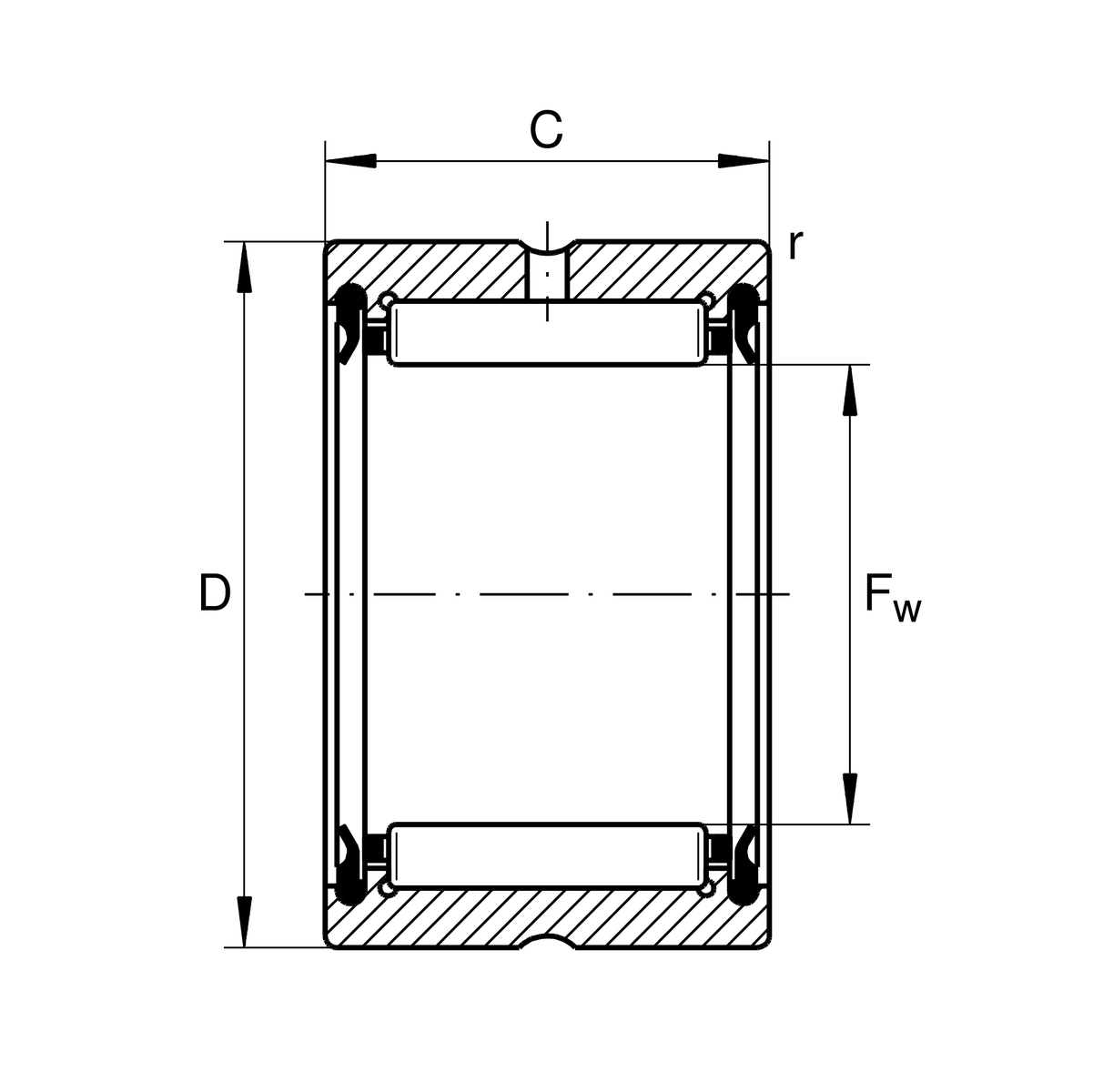

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| C | 13 mm | Width, outer ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | Standard |
| Lubrication hole | with | with |
| Coating | Without | |
| Sealing | 2RSR | Contact seals on both sides |
| Special features | Without | |
| Number of rolling element rows | 1 | Single-row design |
