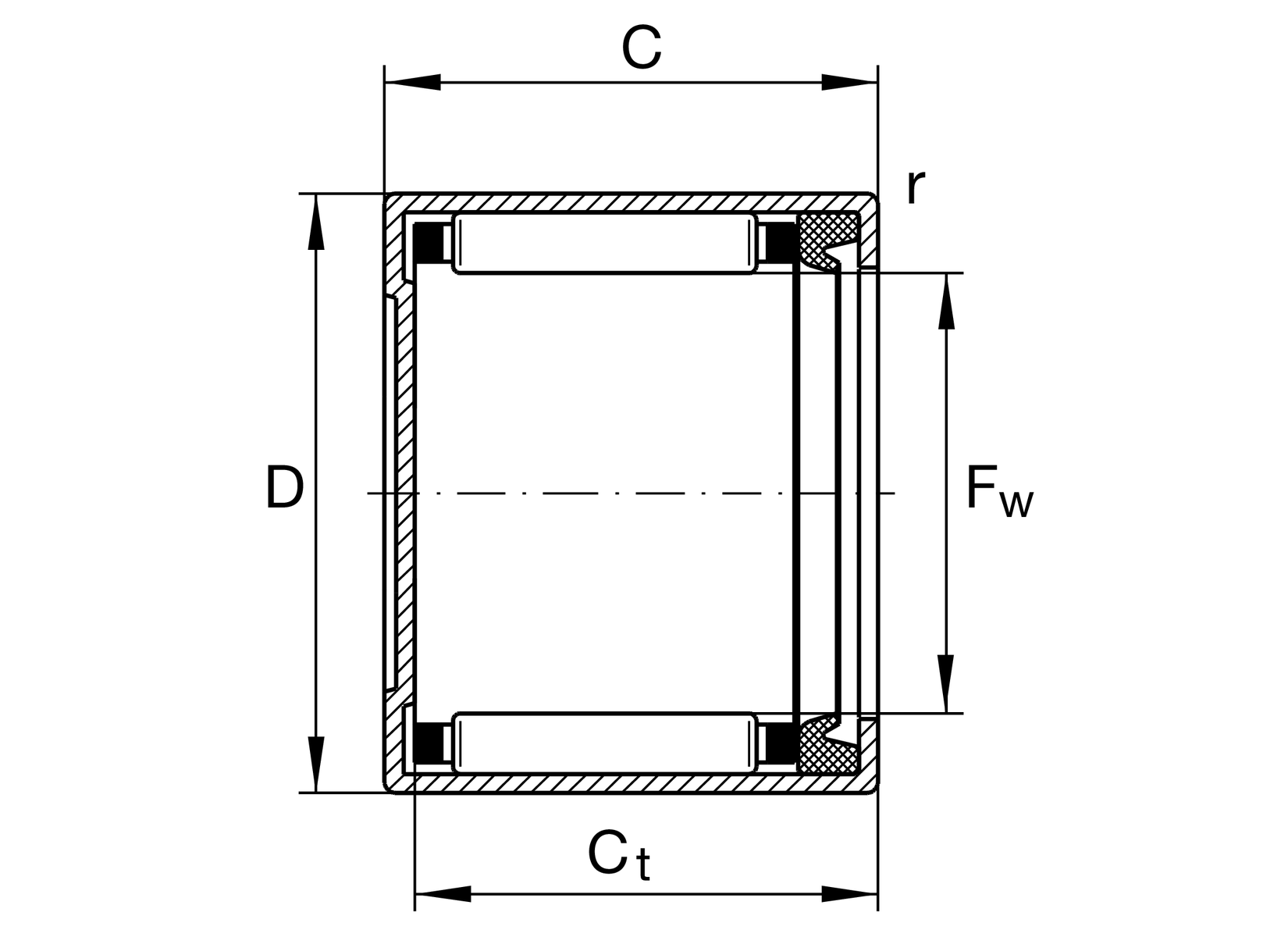

Main Dimensions & Performance Data
| Fw | 15 mm | Under roller diameter |
| D | 21 mm | Outside diameter |
| C | 14 mm | Width, outer ring |
| Cr | 7,800 N | Basic dynamic load rating, radial |
| C0r | 9,800 N | Basic static load rating, radial |
| Cur | 1,210 N | Fatigue load limit, radial |
| nG Grease | 9,900 1/min | Limiting speed for grease lubrication |
| nG | 9,900 1/min | Limiting speed |
| ≈m | 13.9 g | Weight |
Dimensions
| rmin | 0.8 mm | Minimum chamfer dimension |
| Ct min | 11.3 mm | Minimum width to base of drawn cup with closed end |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Coating | Without | |
| Sealing | RS | Contact seal on one sides |
