812/600-M
Axial cylindrical roller bearing 812/600-M
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
600 mm
Bore diameter
T
160 mm
Height
Ca
5,500,000 N
Basic dynamic load rating, axial
C0a
24,300,000 N
Basic static load rating, axial
Cua
1,600,000 N
Fatigue load limit, axial
nG
400 1/min
Limiting speed
nϑr
109 1/min
Reference speed
D
800 mm
Outside diameter
≈m
254.5 kg
Weight

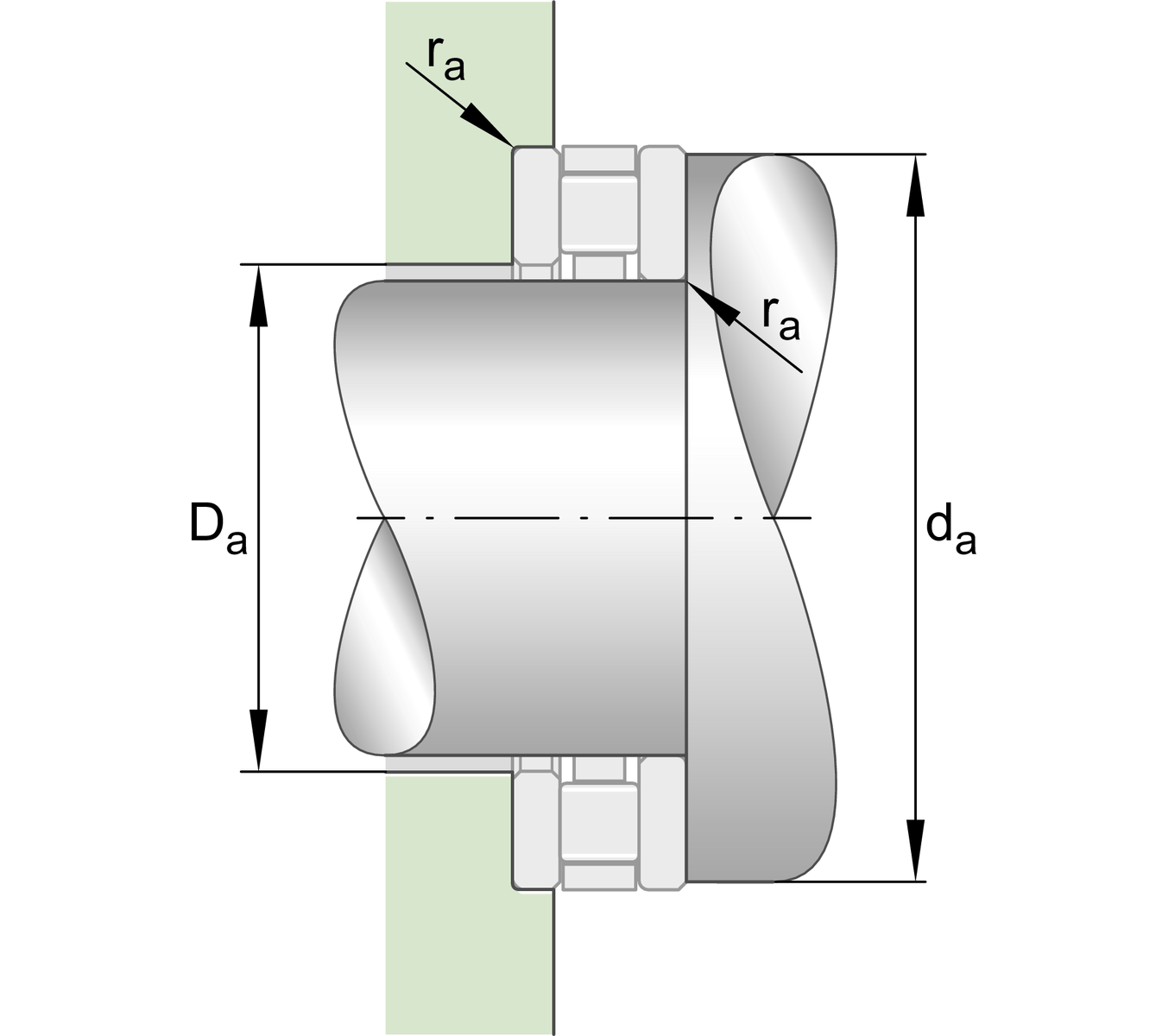

Mounting dimensions
ra max
5 mm
Maximum recess radius

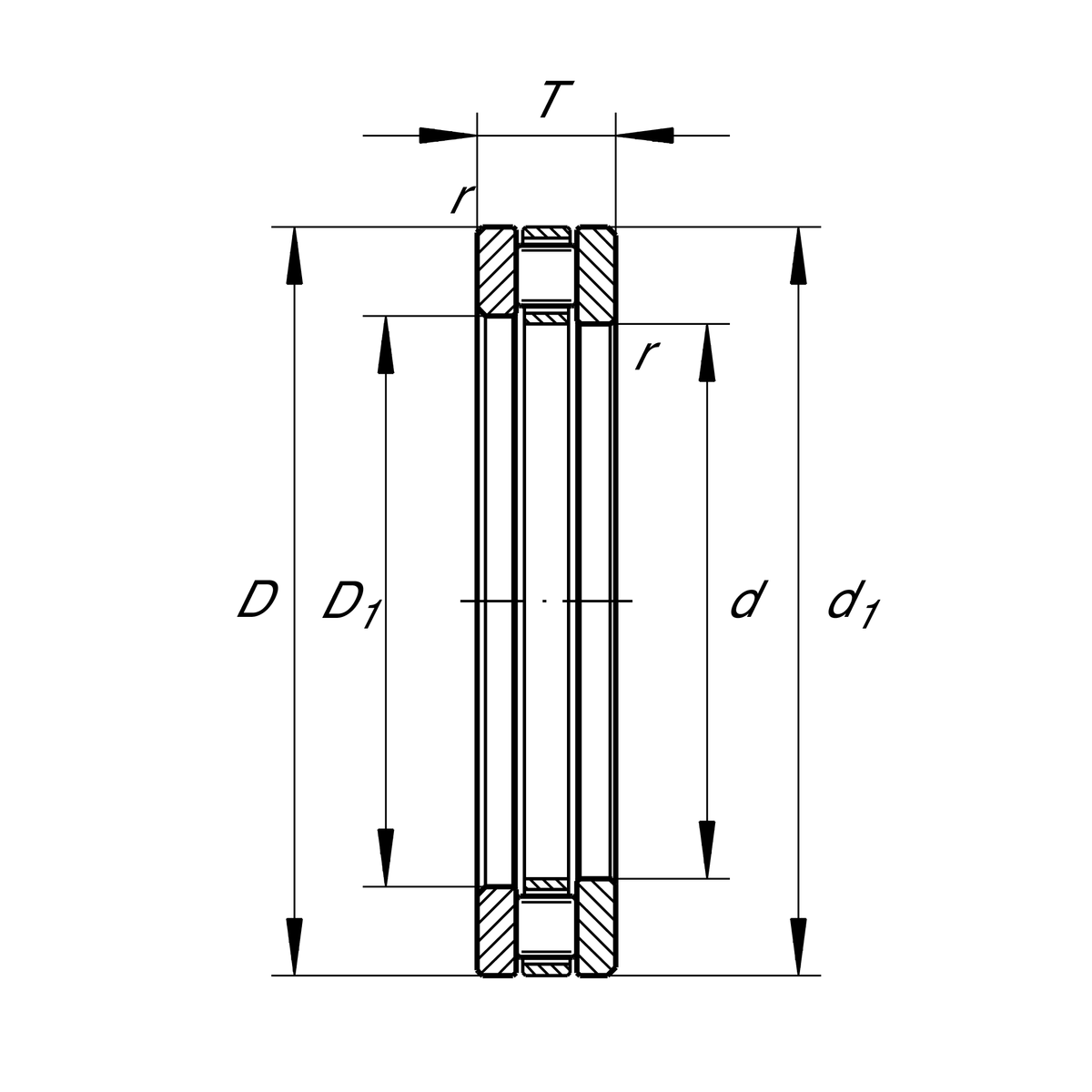

Dimensions
D1
605 mm
Bore diameter housing washer
d1
795 mm
Rip diameter shaft washer
rmin
5 mm
Minimum chamfer dimension

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Additional information
K812/600-M
Axial roller and cage assembly
GS812/600
Housing Washer
WS812/600
Shaft washer

Your current product variant
CageMBrass Cage
