811/530-M
Axial cylindrical roller bearing 811/530-M
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
530 mm
Bore diameter
T
85 mm
Height
Ca
2,140,000 N
Basic dynamic load rating, axial
C0a
10,500,000 N
Basic static load rating, axial
Cua
790,000 N
Fatigue load limit, axial
nG
490 1/min
Limiting speed
nϑr
155 1/min
Reference speed
D
640 mm
Outside diameter
≈m
64.44 kg
Weight

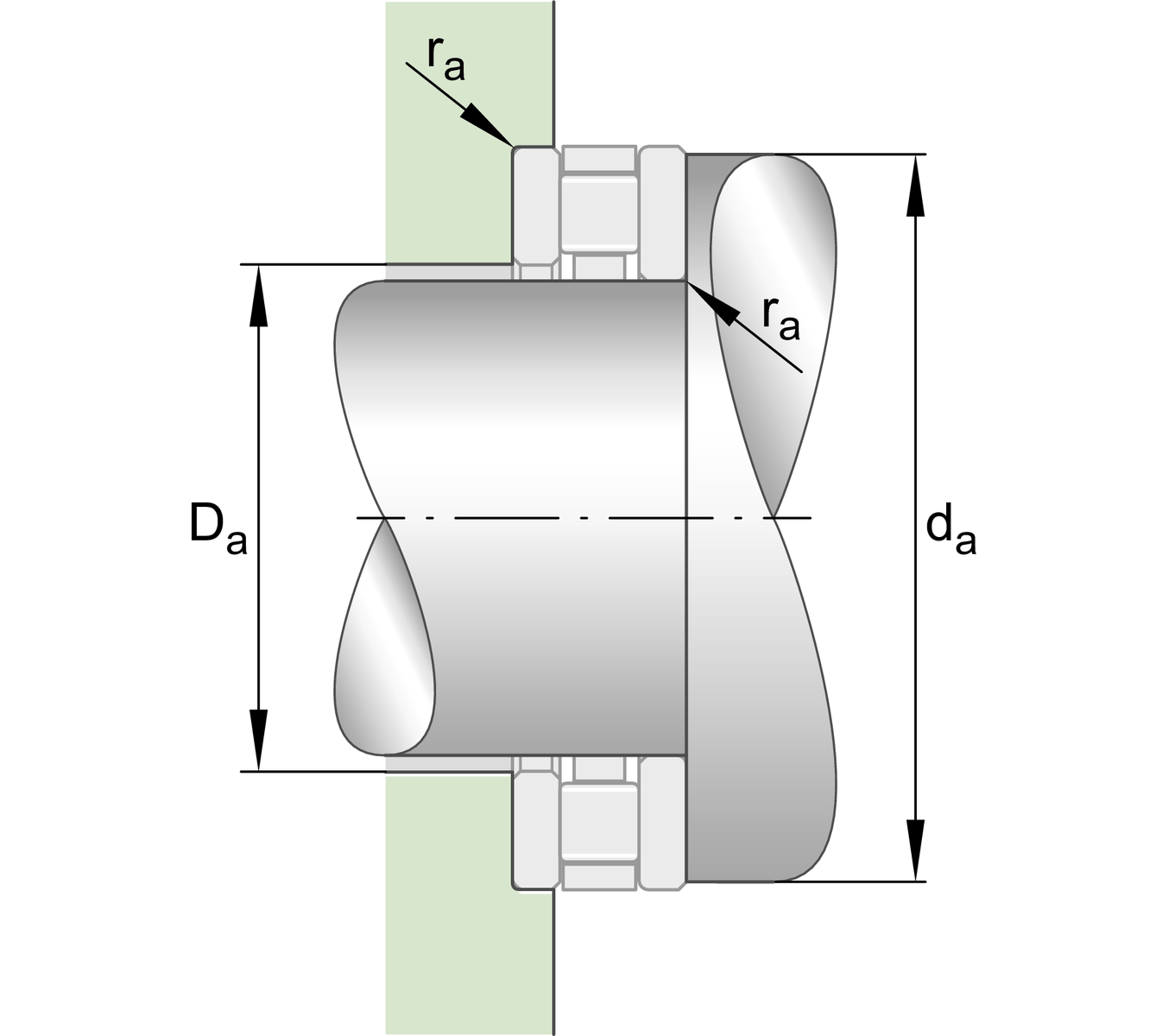

Mounting dimensions
ra max
3 mm
Maximum recess radius

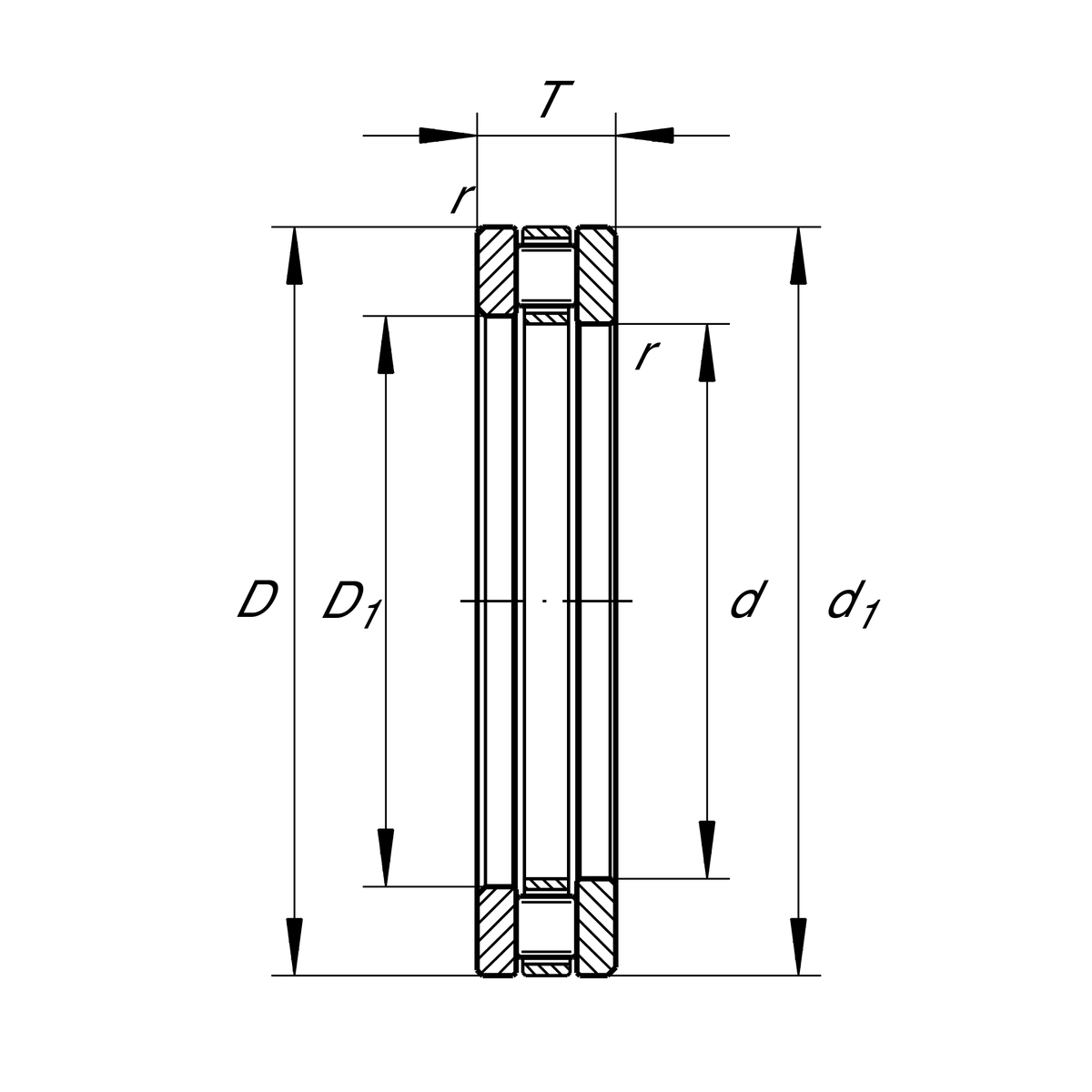

Dimensions
D1
535 mm
Bore diameter housing washer
d1
635 mm
Rip diameter shaft washer
rmin
3 mm
Minimum chamfer dimension

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Additional information
K811/530-M
Axial roller and cage assembly
GS811/530
Housing Washer
WS811/530
Shaft washer

Your current product variant
CageMBrass Cage
