RMEO60-XL
Flanged housing unit RMEO60-XL
Thêm vào yêu cầu báo giá

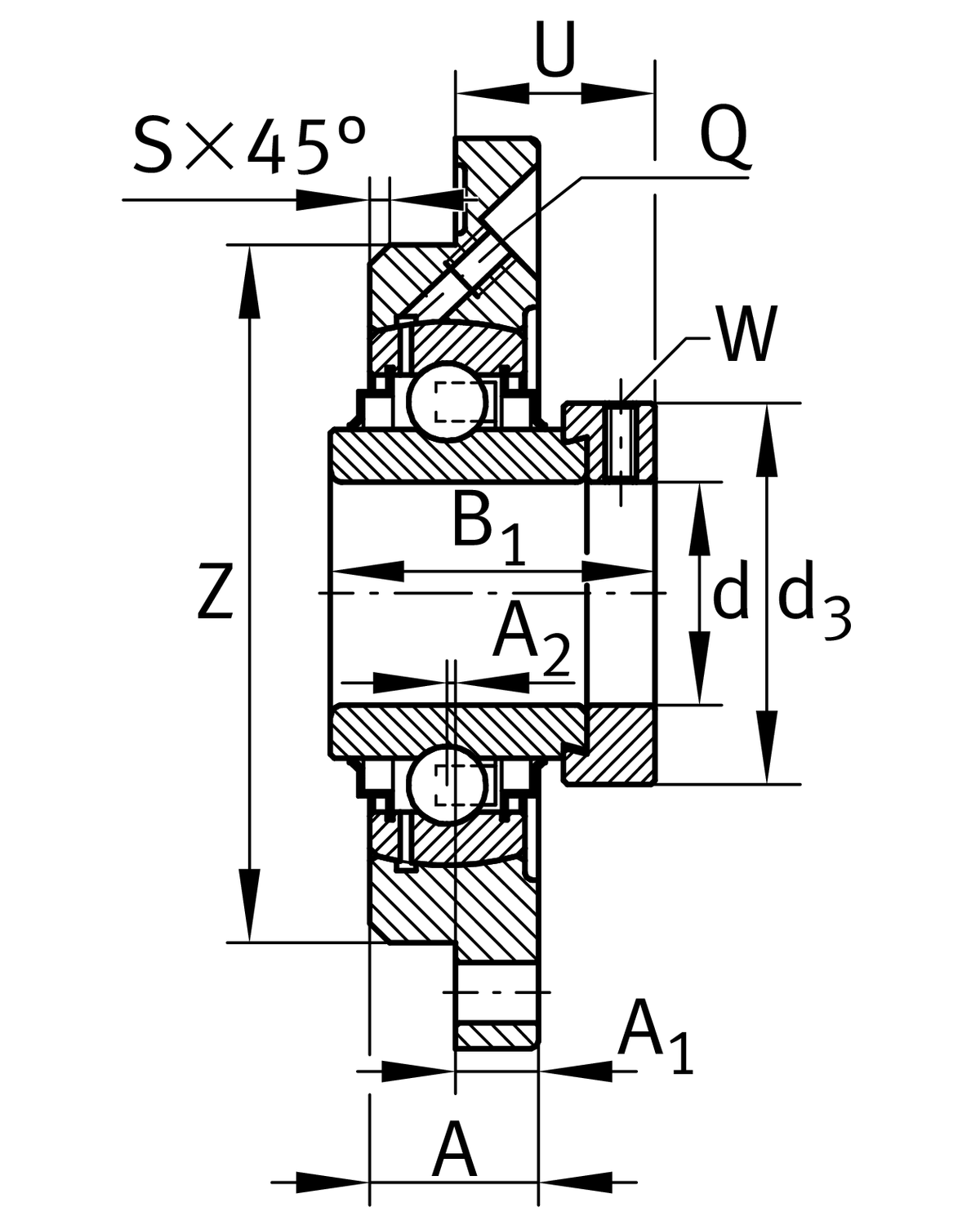

Main Dimensions & Performance Data
d
60 mm
Bore diameter
H
256 mm
Height flange
B1
68 mm
Locking collar total width
U
47.5 mm
Total height unit
Cr
87,000 N
Basic dynamic load rating, radial
C0r
52,000 N
Basic static load rating, radial
Cur
2,460 N
Fatigue load limit, radial
≈m
7.92 kg
Weight

Mounting dimensions
J
212 mm
Pitch circle diameter (holes)
N
23 mm
Fixing bore
Z
160 mm
Diameter spigot
h8
Diameter spigot clearance
W
5 mm
Width across flats
n
4
Number of screwing holes

Dimensions
A
36 mm
Height housing
A1
22 mm
Thickness of flange
A2
-2.5 mm
Distance raceway
S
3 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
MEO12
Housing
GNE60-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
