RMEO70-XL
Flanged housing unit RMEO70-XL
Thêm vào yêu cầu báo giá

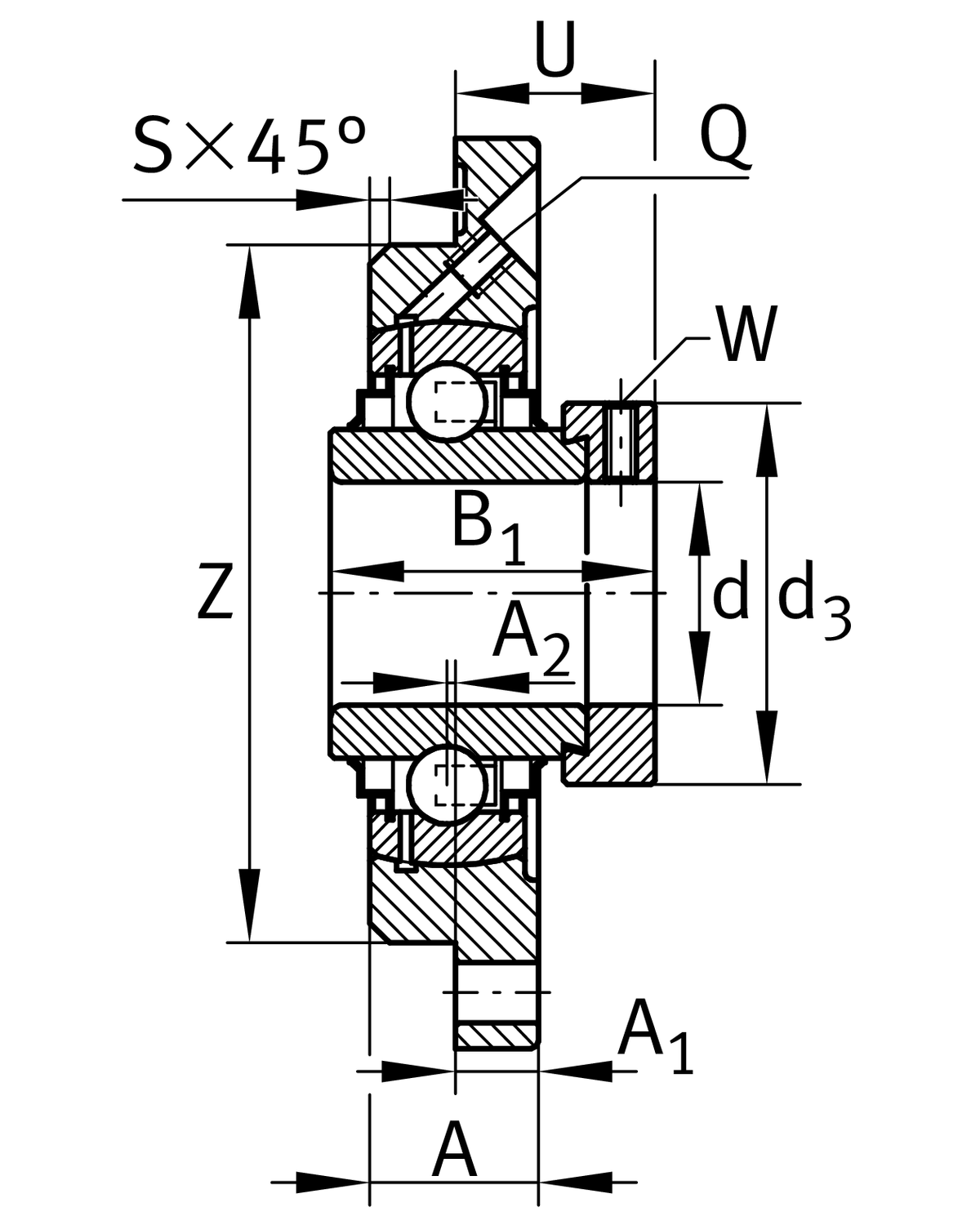

Main Dimensions & Performance Data
d
70 mm
Bore diameter
H
300 mm
Height flange
B1
75.5 mm
Locking collar total width
U
49.9 mm
Total height unit
Cr
104,000 N
Basic dynamic load rating, radial
C0r
68,000 N
Basic static load rating, radial
Cur
3,400 N
Fatigue load limit, radial
≈m
12.2 kg
Weight

Mounting dimensions
J
252 mm
Pitch circle diameter (holes)
N
25 mm
Fixing bore
Z
185 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

Dimensions
A
43 mm
Height housing
A1
25 mm
Thickness of flange
A2
-0.5 mm
Distance raceway
S
4 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
MEO14
Housing
GNE70-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
