Main Dimensions & Performance Data
| d | 65 mm | Bore diameter |
| D | 140 mm | Outside diameter |
| T | 45 mm | Height |
| Ca | 445,000 N | Basic dynamic load rating, axial |
| C0a | 1,410,000 N | Basic static load rating, axial |
| Cua | 150,000 N | Fatigue load limit, axial |
| nG | 2,800 1/min | Limiting speed |
| nϑr | 1,000 1/min | Reference speed |
| ≈m | 3.438 kg | Weight |

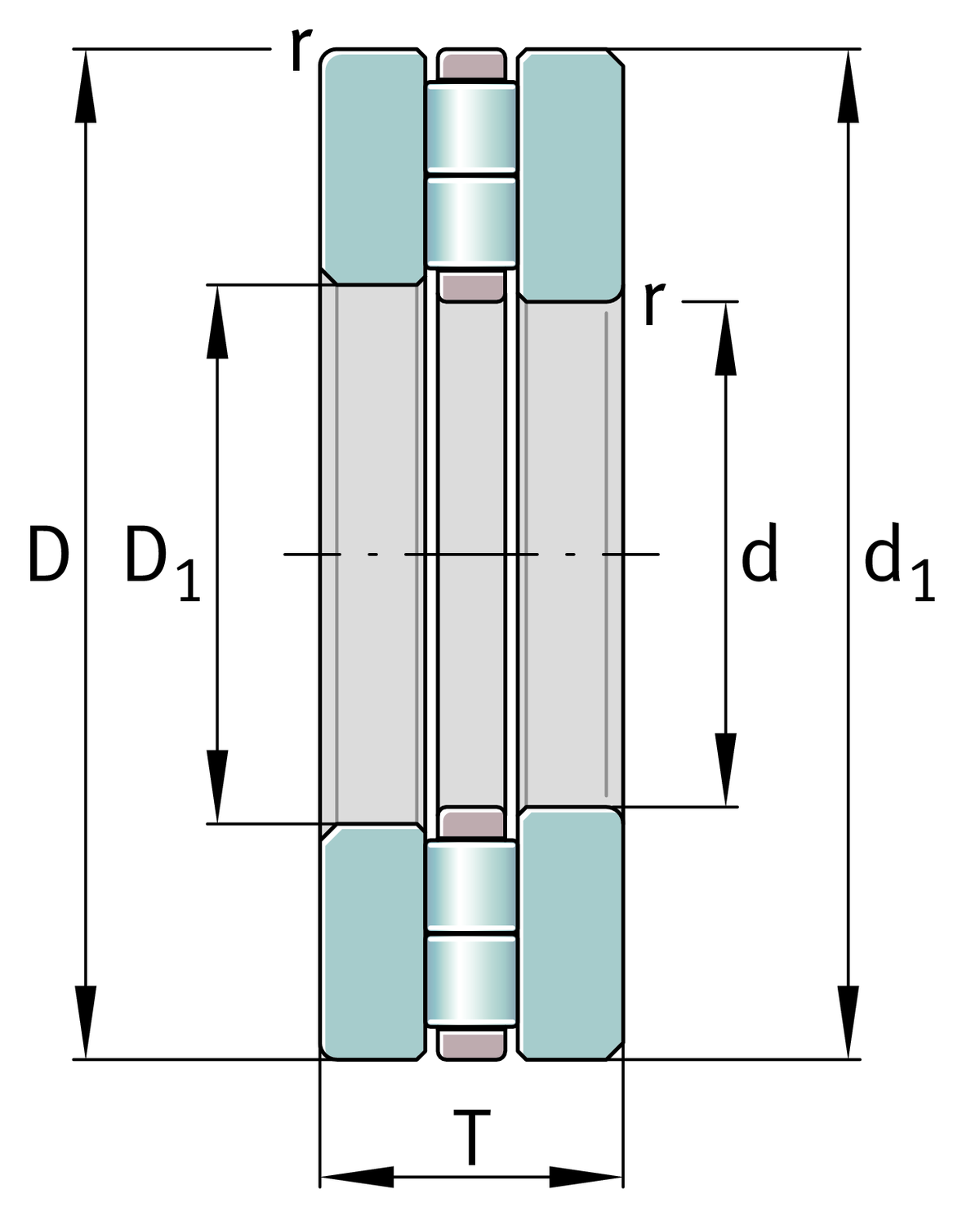

Dimensions
| D1 | 68 mm | Bore diameter housing washer |
| d1 | 140 mm | Rip diameter shaft washer |
| rmin | 2 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K89413-TV | Axial roller and cage assembly | |
GS89413 | Housing Washer | |
WS89413 | Shaft washer |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
