Main Dimensions & Performance Data
| d | 60 mm | Bore diameter |
| D | 130 mm | Outside diameter |
| T | 42 mm | Height |
| Ca | 390,000 N | Basic dynamic load rating, axial |
| C0a | 1,220,000 N | Basic static load rating, axial |
| Cua | 131,000 N | Fatigue load limit, axial |
| nG | 3,050 1/min | Limiting speed |
| nϑr | 1,080 1/min | Reference speed |
| ≈m | 2.818 kg | Weight |

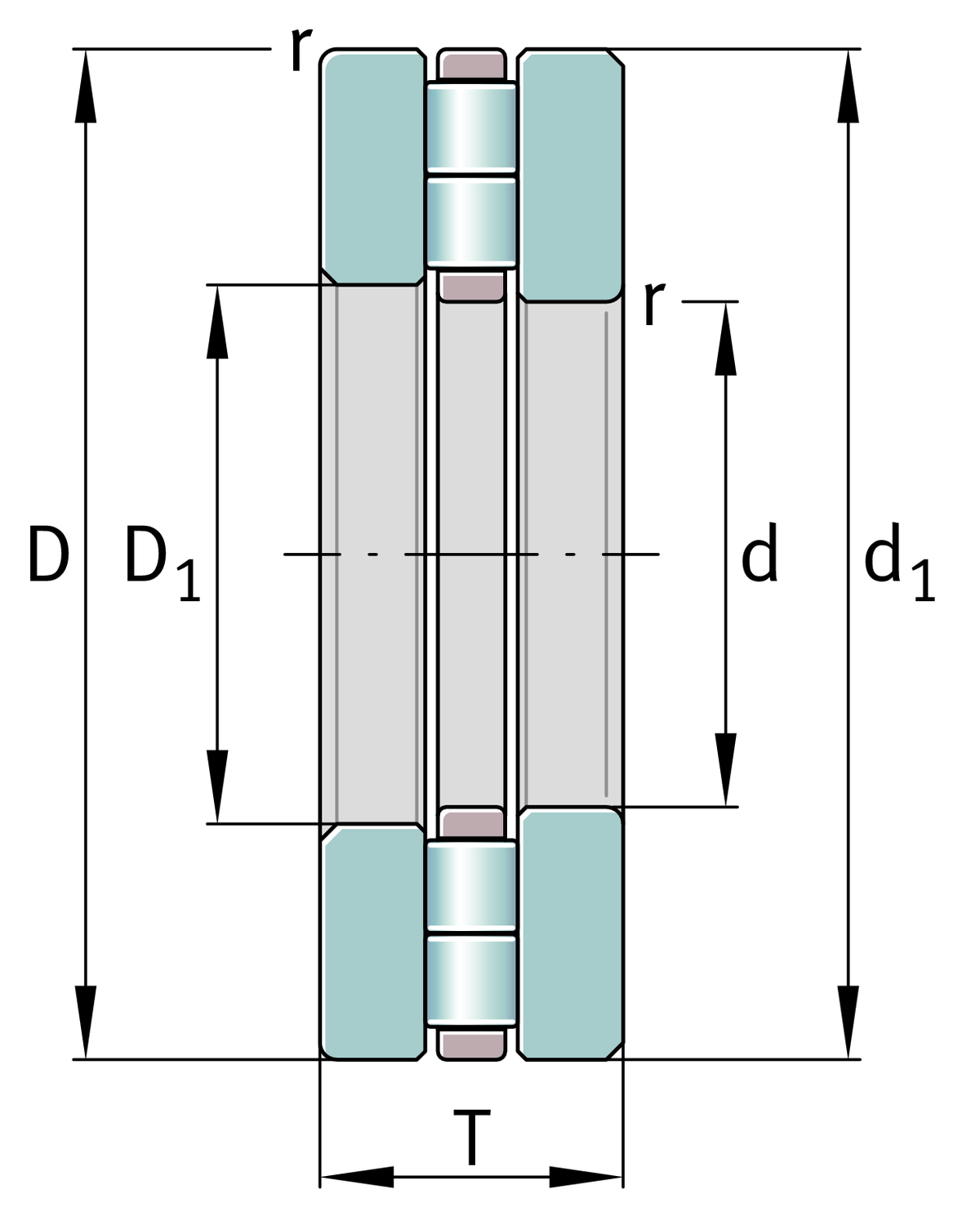

Dimensions
| D1 | 62 mm | Bore diameter housing washer |
| d1 | 130 mm | Rip diameter shaft washer |
| rmin | 1.5 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K89412-TV | Axial roller and cage assembly | |
GS89412 | Housing Washer | |
WS89412 | Shaft washer |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
