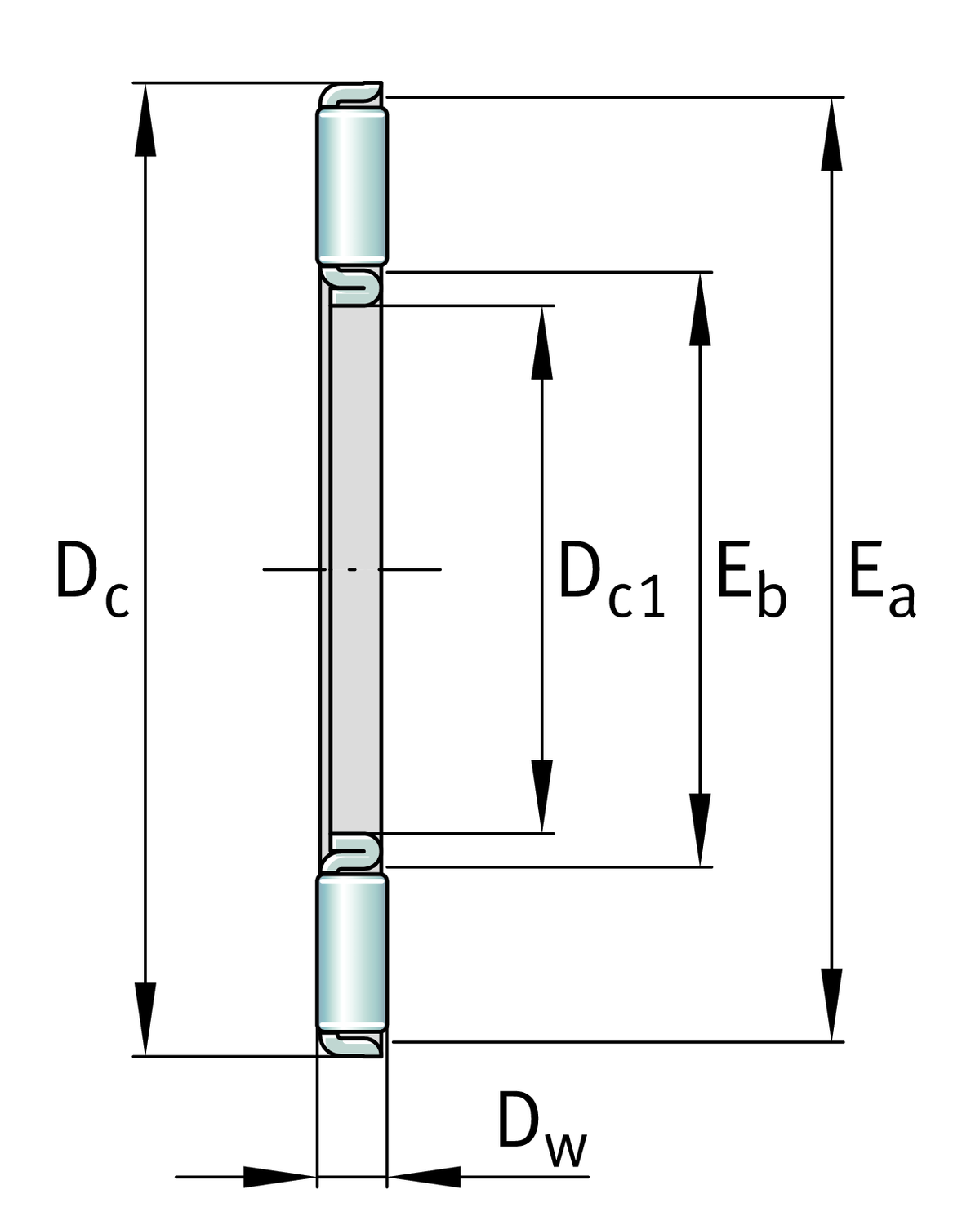

Main Dimensions & Performance Data
| Dc1 | 8 mm | Bore diameter cage |
| Dc | 21 mm | Outside diameter |
| Dw | 2 mm | Rolling element diameter |

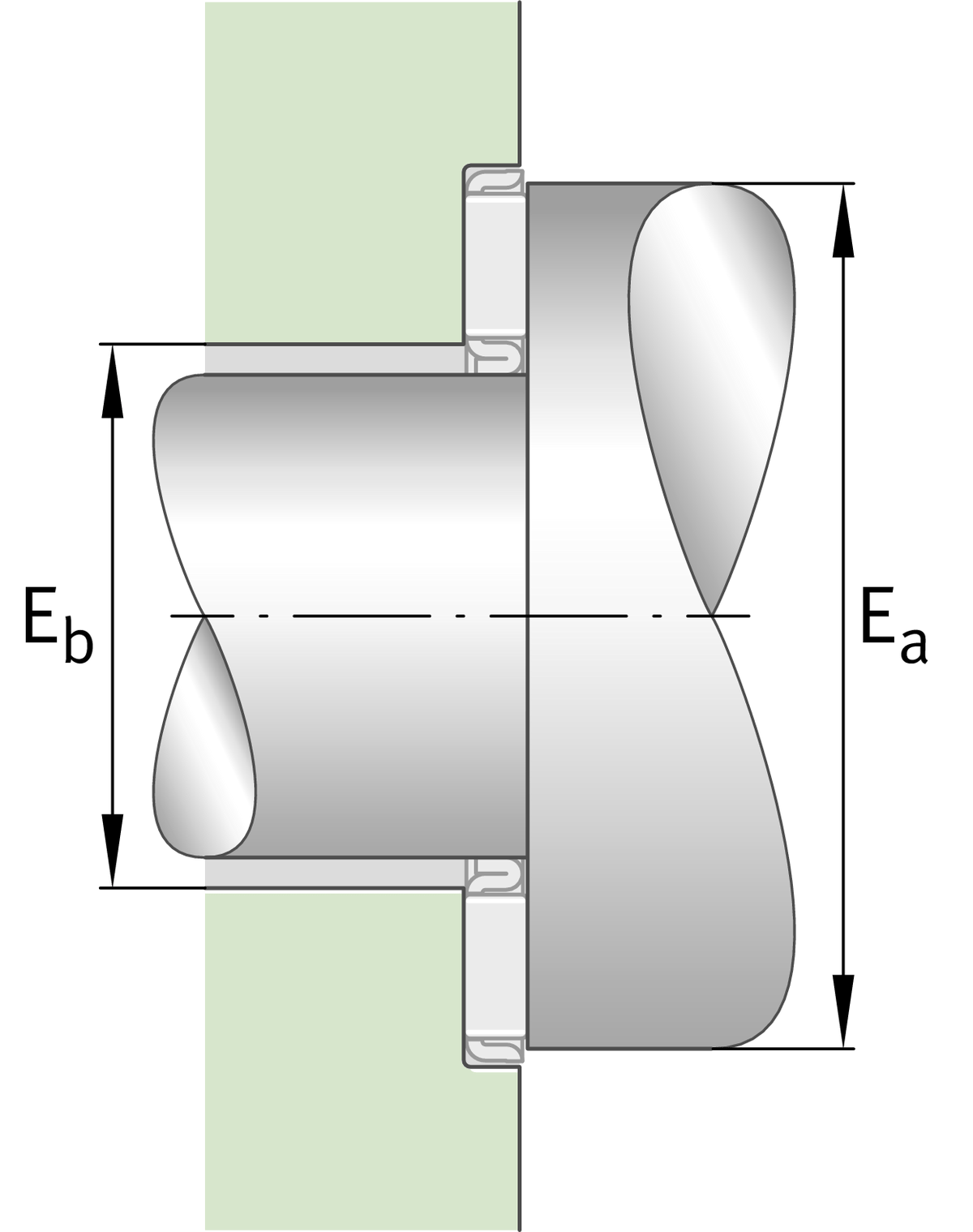

| Ea | 20 mm | Raceway dimension |
| Eb | 9 mm | Raceway dimension |
| ca | 7,800 N | Basic dynamic load rating, axial |
| c0a | 19,400 N | Basic static load rating, axial |
| cua | 2,010 N | Fatigue load limit, axial |
| nG | 17,700 1/min | Limiting speed |
| nϑr | 8,800 1/min | Reference speed |
| ≈m | 1.5 g | Weight |
Additional information
AS0821 | Axial bearing washer |
