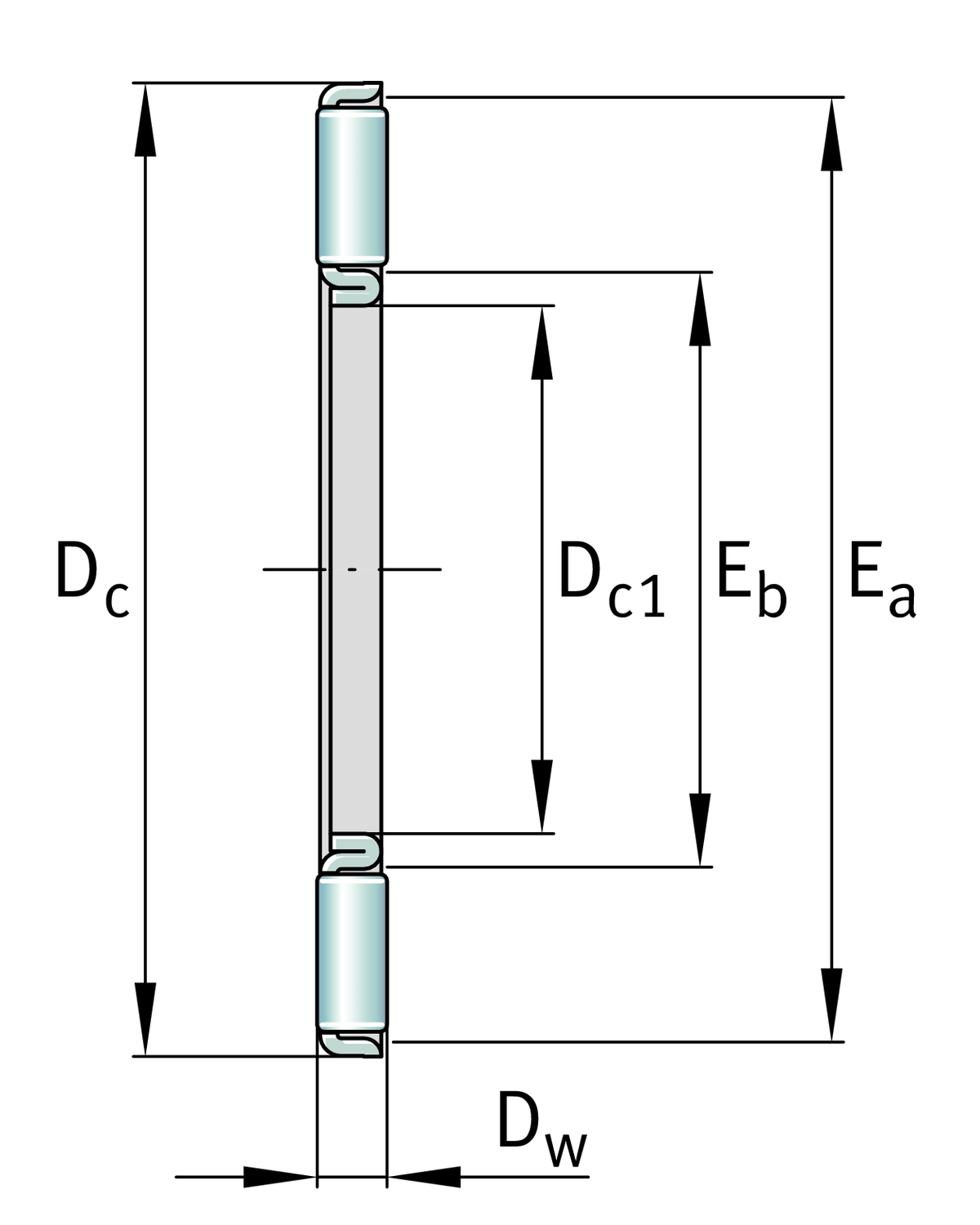

Main Dimensions & Performance Data
| Dc1 | 6 mm | Bore diameter cage |
| Dc | 19 mm | Outside diameter |
| Dw | 2 mm | Rolling element diameter |

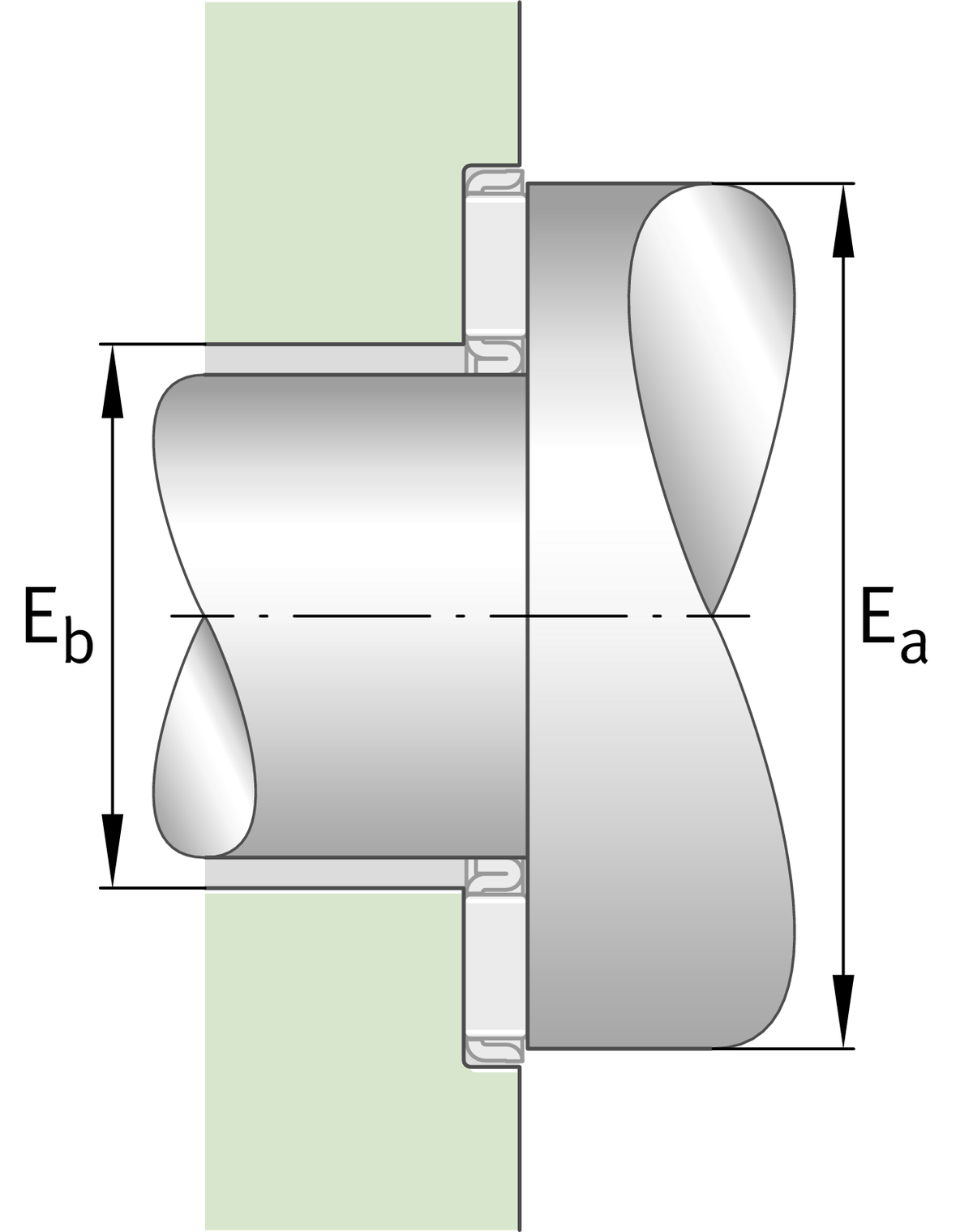

| Ea | 18 mm | Raceway dimension |
| Eb | 7 mm | Raceway dimension |
| ca | 6,800 N | Basic dynamic load rating, axial |
| c0a | 15,500 N | Basic static load rating, axial |
| cua | 1,610 N | Fatigue load limit, axial |
| nG | 18,800 1/min | Limiting speed |
| nϑr | 10,800 1/min | Reference speed |
| ≈m | 1.25 g | Weight |
Additional information
AS0619 | Axial bearing washer |
