FAG INA Schaeffler
INA
HF0612-R-RR
Drawn cup roller clutch HF0612-R-RR
Thêm vào yêu cầu báo giá

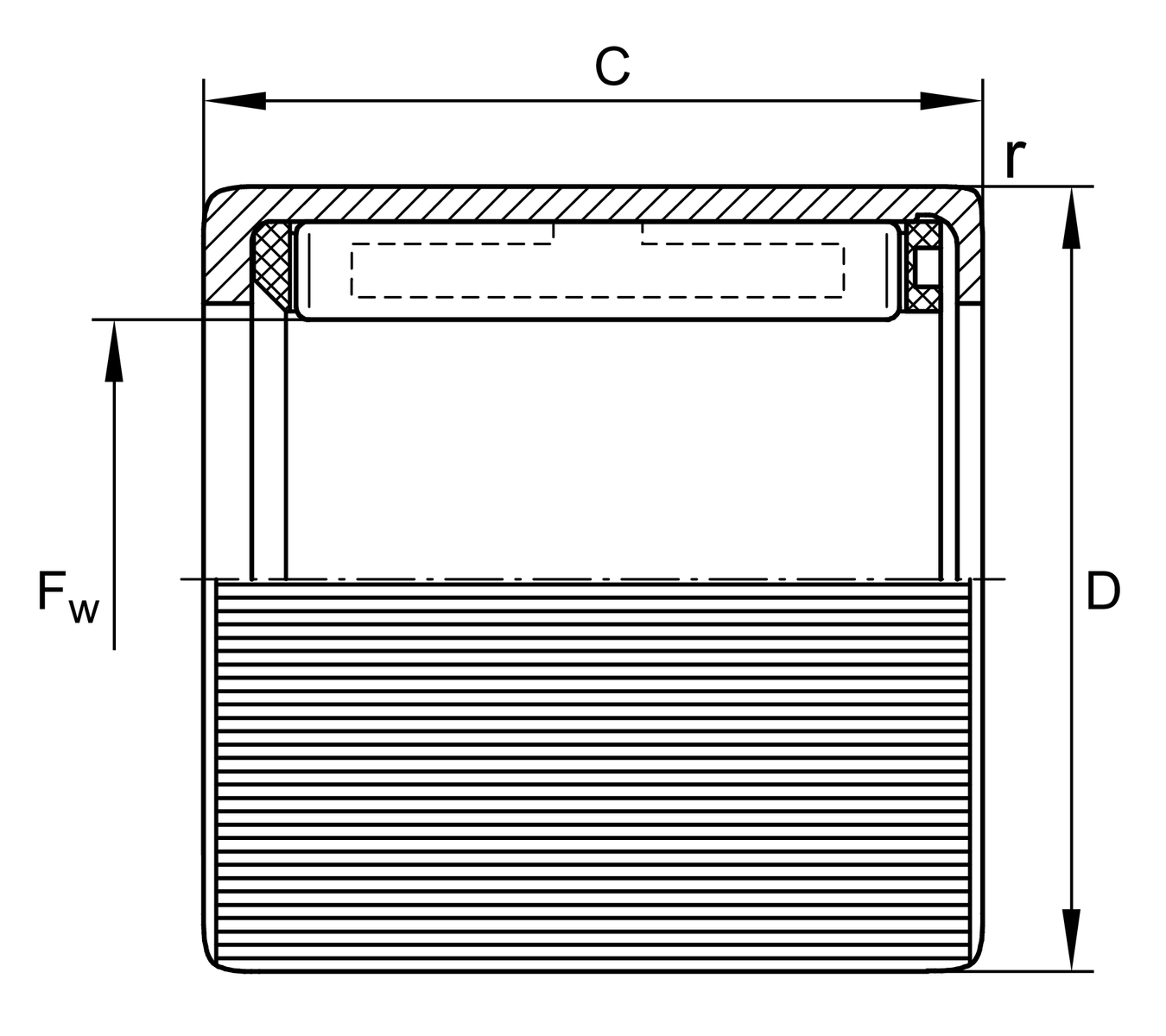

Main Dimensions & Performance Data
Fw
6 mm
Under roller diameter
D
10 mm
Outside diameter
C
12 mm
Width, outer ring
rmin
0.3 mm
Minimum chamfer dimension
Md per
0.6 Nm
Permissible torque
nGW
23,000 1/min
Limiting speed for rotating shaft
nGA
13,000 1/min
Limiting speed for rotating outer ring
≈m
3 g
Weight

Temperature range
Tmin
-10 °C
Operating temperature min.
Tmax
70 °C
Operating temperature max.

Additional information
HK0608
Drawn cup needle roller bearings for radial bearing arrangement

Your current product variant
LubricantL564Grease (L564/standart specific - dynamic)
CoatingRRProtected against corrosion by Corrotect special coating
Outer shapeRKnurled outside surface
Spring designStandardSteel pressure springs
