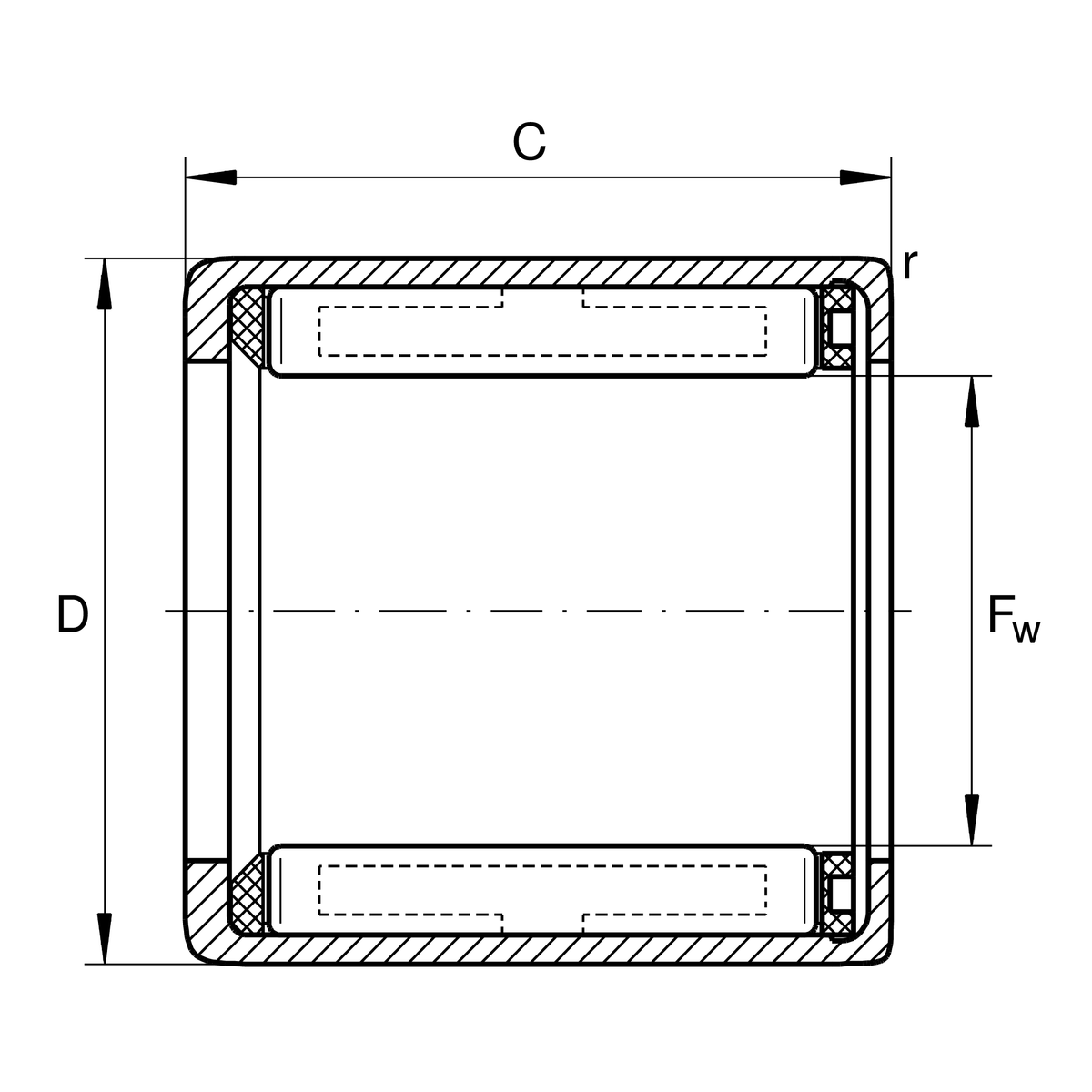

Main Dimensions & Performance Data
| Fw | 6 mm | Under roller diameter |
| D | 10 mm | Outside diameter |
| C | 12 mm | Width, outer ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| Md per | 1.76 Nm | Permissible torque |
| nGW | 23,000 1/min | Limiting speed for rotating shaft |
| nGA | 13,000 1/min | Limiting speed for rotating outer ring |
| ≈m | 2.73 g | Weight |
Temperature range
| Tmin | -10 °C | Operating temperature min. |
| Tmax | 70 °C | Operating temperature max. |
Additional information
HK0608 | Drawn cup needle roller bearings for radial bearing arrangement |
Your current product variant
| Coating | Without | |
| Outer shape | Without | Smooth outside surface |
| Spring design | KF | Plastic pressure springs |
