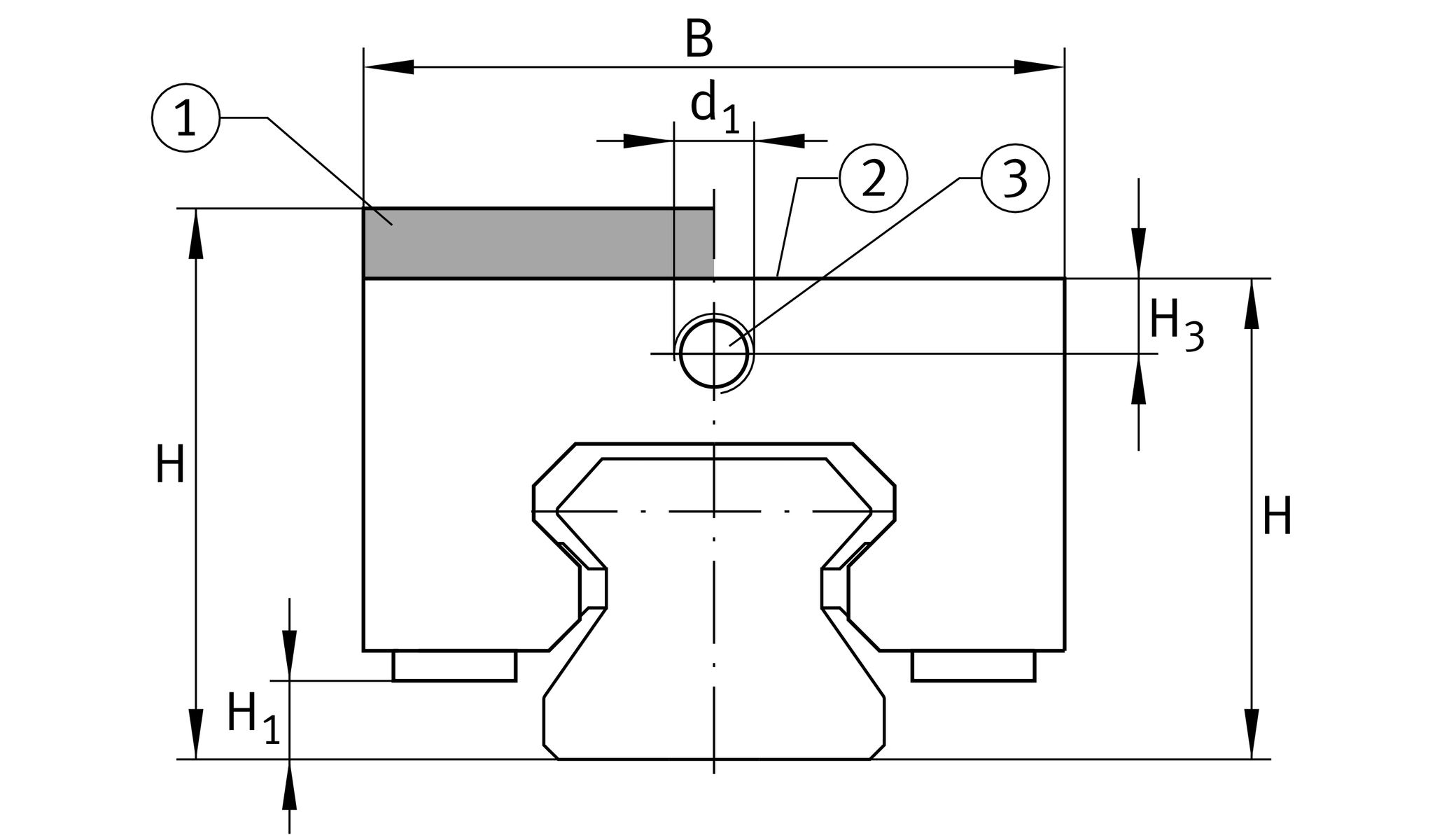

Main Dimensions & Performance Data
| H | 90 mm | height sytem |
without | adapter plate | |
| B | 125 mm | width of braking and clamping element |
| L | 186 mm | length braking and clamping element |
11,000 N | clamping force 1 | |
| ≈m | 13.1 kg | Weight |

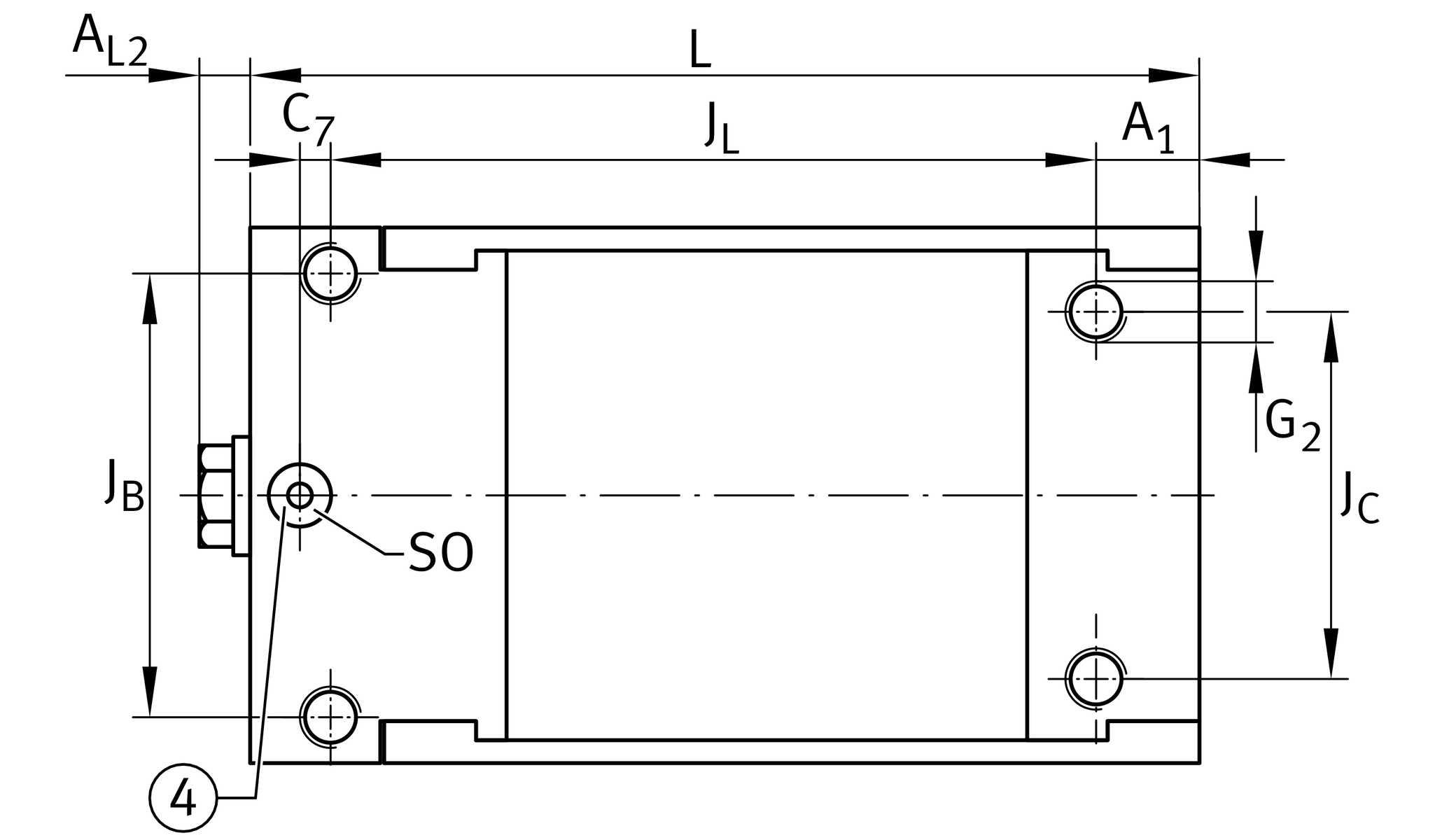

Dimensions
| JB | 96 mm | hole pattern |
| JC | 96 mm | hole pattern |
| A1 | 22 mm | distance |
| JL | 150 mm | hole pattern |
| H1 | 18.2 mm | space (system) |
| H3 | 17.5 mm | mounting dimension |
| AL2 | 7.5 mm | distance |
| d1 | M16x1,5 | size thread |
| G2 | M14 | size thread above for DIN ISO 4762-12.9 |
| MA | 229 Nm | tightening torque above 2 |
Your current product variant
| Size code | 65 | |
| Version | D |
