Plummer block housing unit RSHEY40-TV-VA-FD

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	40 mm	Bore diameter
L	120 mm	Length
H₂	100.5 mm	Height
≈m	0.91 kg	Weight

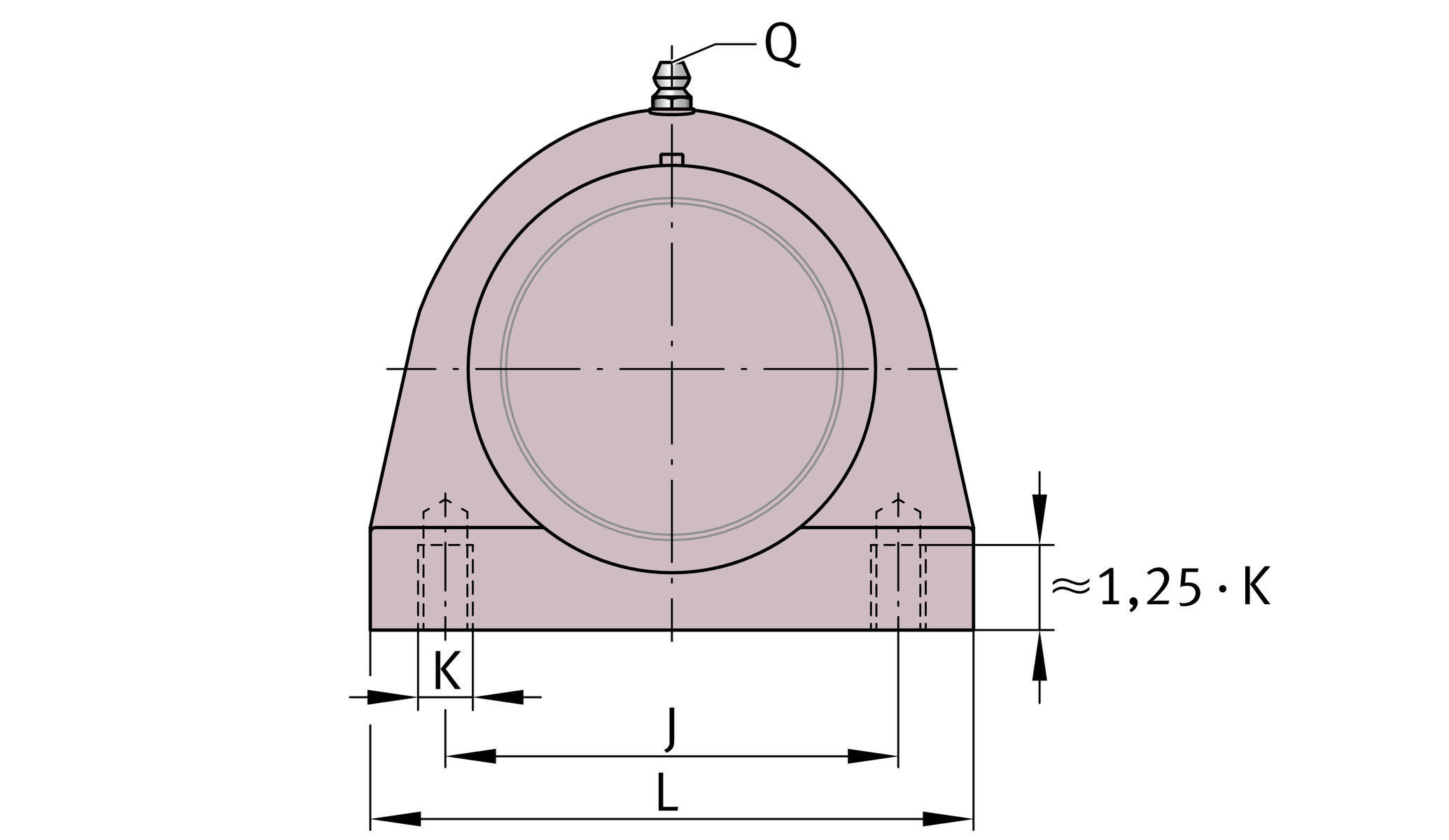

Mounting dimensions

J	88.9 mm	Distance fixing bore
K	M12	Thread fixing bore
W	4 mm	Width of flats

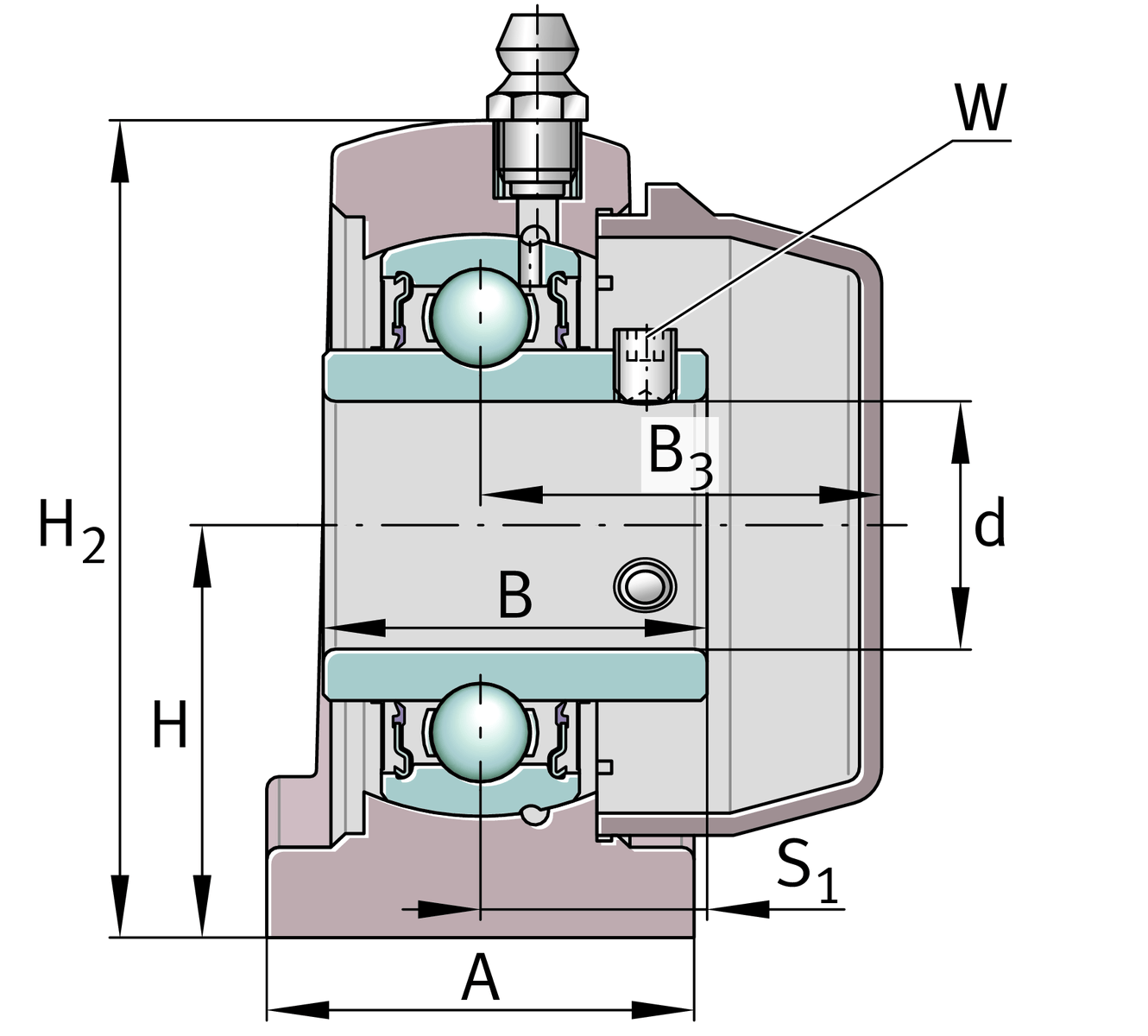

Dimensions

H	49.2 mm	Distance shaft axis
A	48 mm	Width (base)
B	49.2 mm	Width
B₃	51.4 mm	Distance housing centre to cap end
S₁	30.2 mm	Distance raceway to locking collar
Q	1/4"-28 UNF	Connection thread for lubrication

Additional information

	GEH.SHE08-TV-WHT	Housing
	GYE40-KRR-B-FA107-VA-FD	Bearing designation
	KASK08-S-G-WHT	End cap
	KASK08-S-R-NBR-WHT	Open protecting cap

Temperature range

T_min	-30 °C	Operating temperature min.
T_max	100 °C	Operating temperature max.

Your current product variant

Special material	TV	Plastic housing
Corrosion resistant bearing	VA	Corrosion-resistant VA design
Material	TV-FD	Plastic for food industry
