RSHE40-TV-VA-FD
Plummer block housing unit RSHE40-TV-VA-FD
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
120 mm
Length
H2
100.5 mm
Height
≈m
0.93 kg
Weight

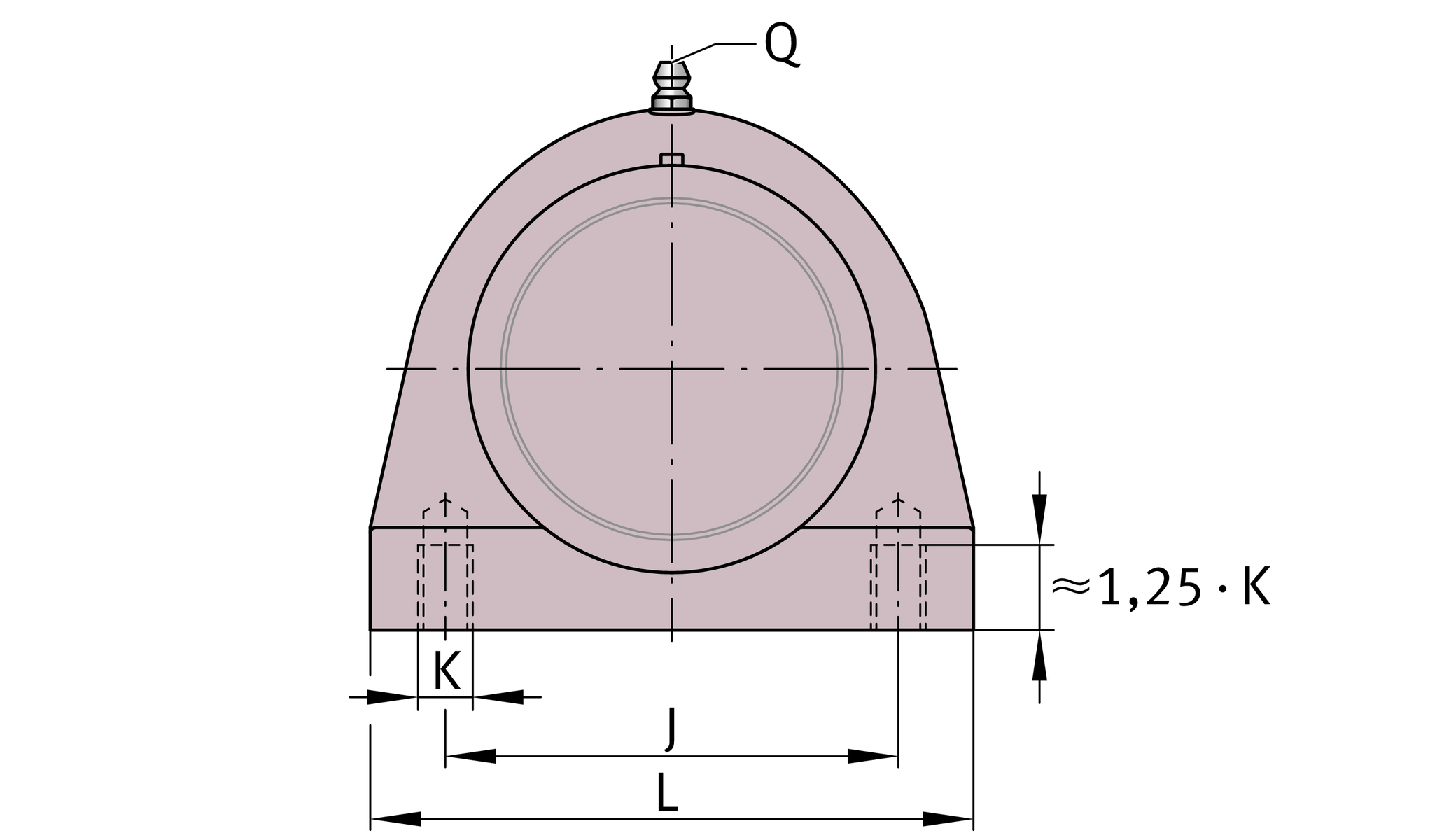

Mounting dimensions
J
88.9 mm
Distance fixing bore
K
M12
Thread fixing bore
W
4 mm
Width of flats

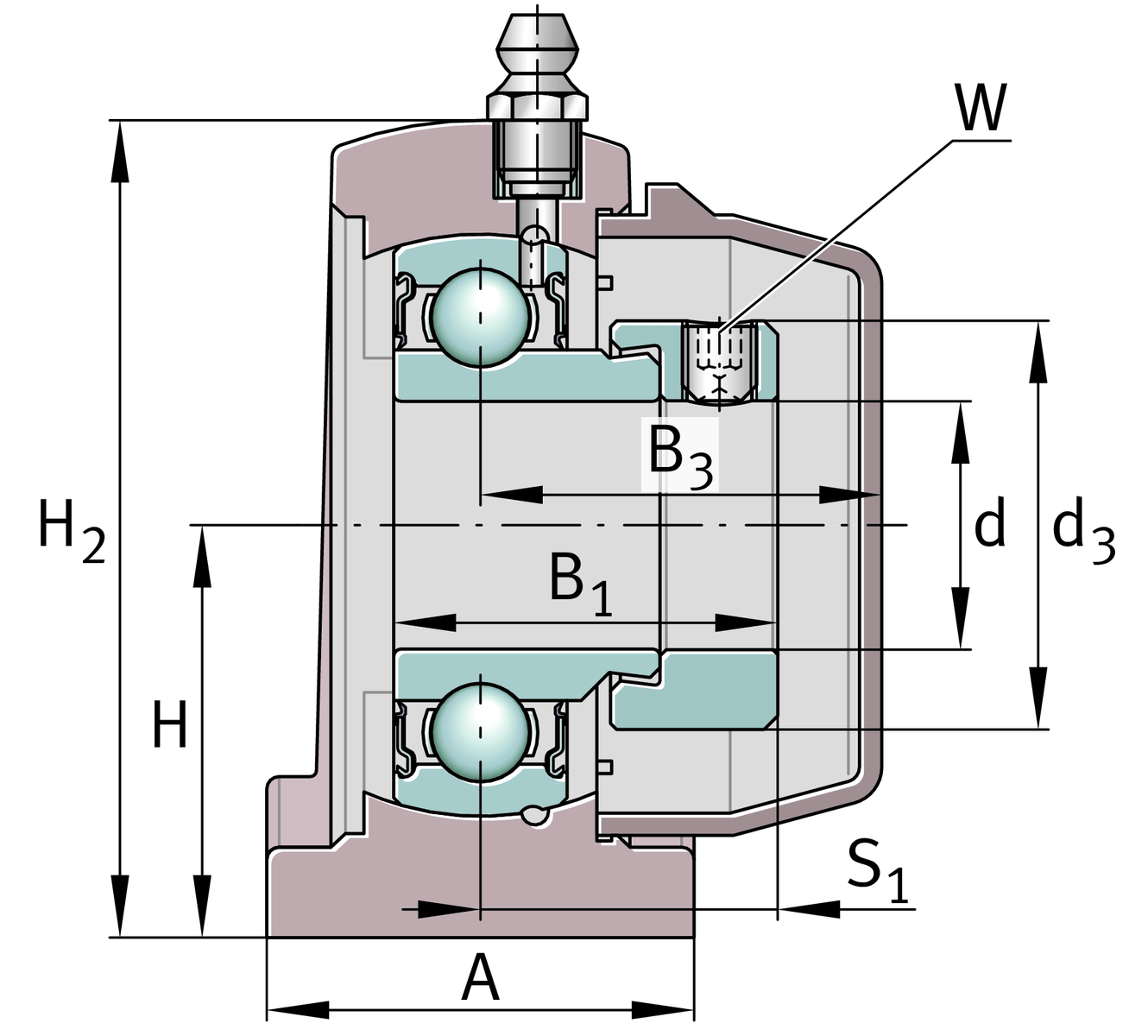

Dimensions
H
49.2 mm
Distance shaft axis
A
48 mm
Width (base)
B1
43.7 mm
Locking collar total width
B3
51.4 mm
Distance housing centre to cap end
S1
34.7 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication
d3
60.3 mm
Outside diameter eccentric locking collar

Additional information
GEH.SHE08-TV-WHT
Housing
GE40-KRR-B-FA107-VA-FD
Bearing designation
KASK08-S-G-WHT
End cap
KASK08-S-R-NBR-WHT
Open protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
Special materialTVPlastic housing
Corrosion resistant bearingVACorrosion-resistant VA design
MaterialTV-FDPlastic for food industry
