GSH40-XL-2RSR-B
Radial insert ball bearing GSH40-XL-2RSR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
DSP
80 mm
Outside diameter
B
22 mm
Width
Cur
930 N
Fatigue load limit, radial
B1
38 mm
Locking collar total width
Cr
29,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.518 kg
Weight

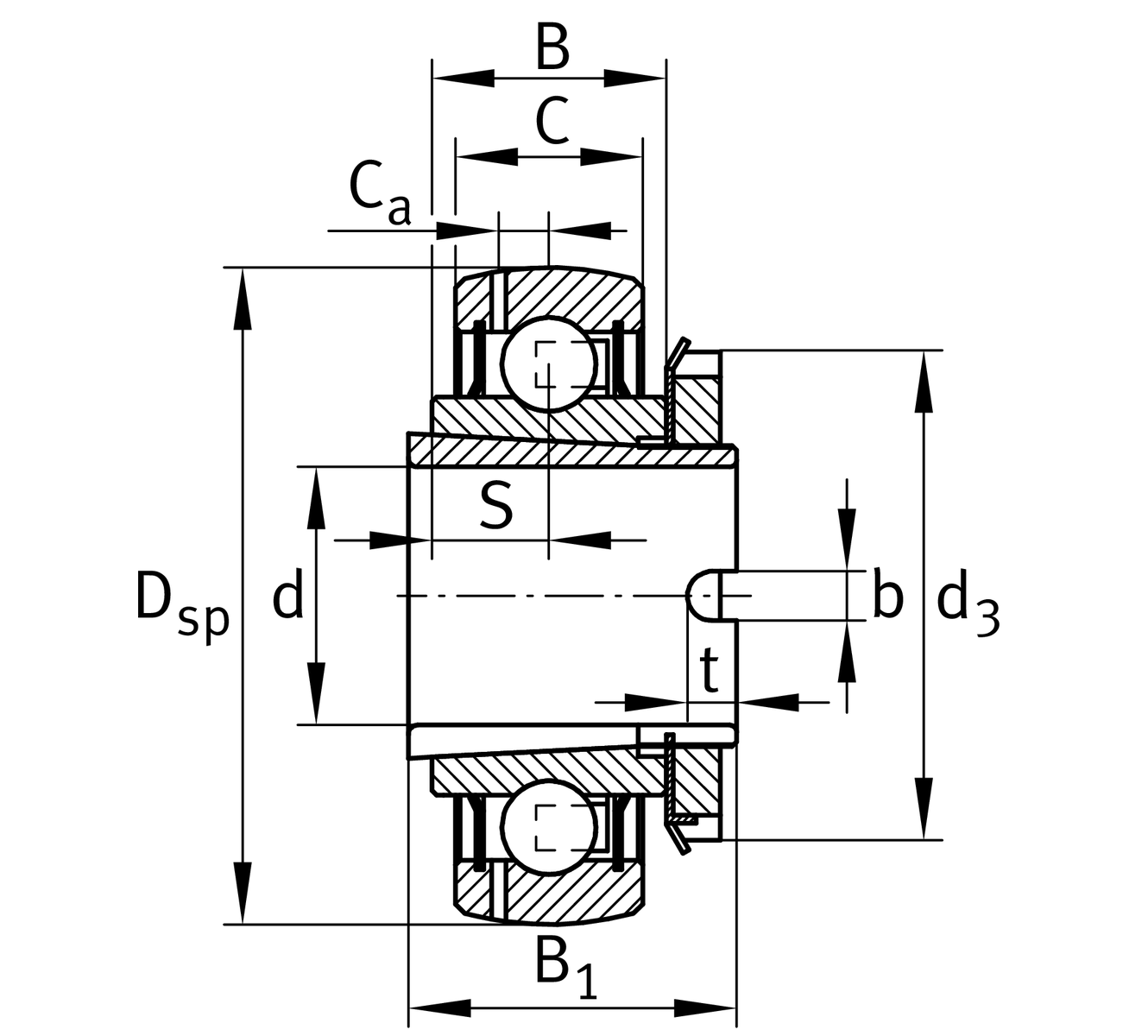

Dimensions
C
21 mm
Width, outer ring
S
11 mm
Distance raceway
Ca
6.4 mm
Distance to lubrication hole
b
5 mm
Width retaining slot
t
5 mm
Hight retaining slot adapter sleeve
d3
58 mm
Outside diameter locking collar/locknut

Calculation factors
f0
14.6
Calculation factor

Additional information
HUESH.SH40-ZN-0100-HLA
Adapter sleeve

Your current product variant
Sealing2RSRLip seal on both sides (vulcanised)
Shape of outer surfaceB
