FAG INA Schaeffler
INA
IR50X55X20-IS1-XL
Inner ring IR50X55X20-IS1-XL
Thêm vào yêu cầu báo giá

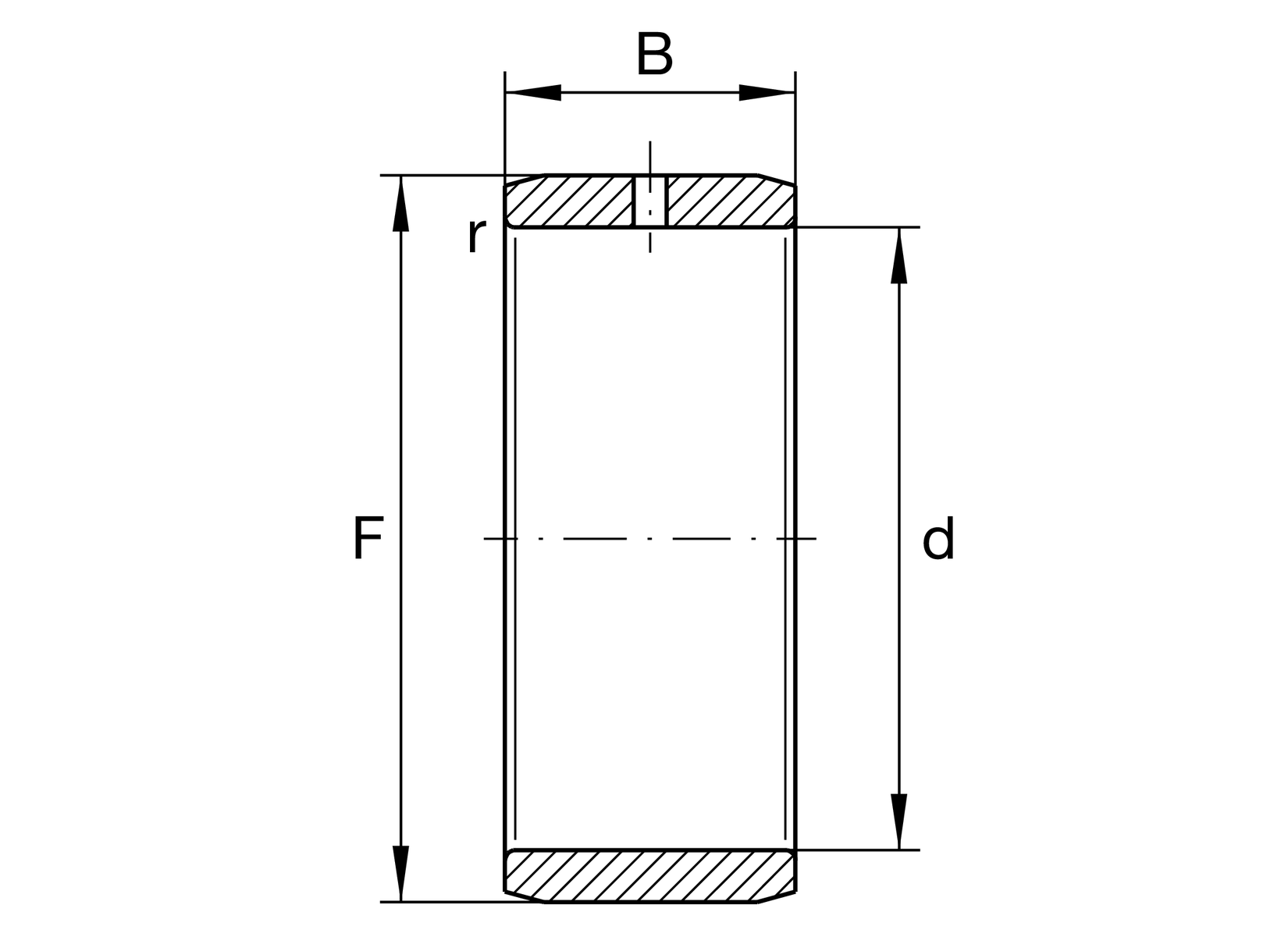

Main Dimensions & Performance Data
d
50 mm
Bore diameter
F
55 mm
Raceway diameter inner ring
B
20 mm
Width
0 µm
Raceway diameter upper tolerance
-0.011 µm
Raceway diameter lower tolerance
rmin
0.6 mm
Minimum chamfer dimension
≈m
0.065 kg
Weight

Mounting dimensions
1
Number of lubrication holes

Your current product variant
Lubrication holeIS1With
Special featuresWithout
