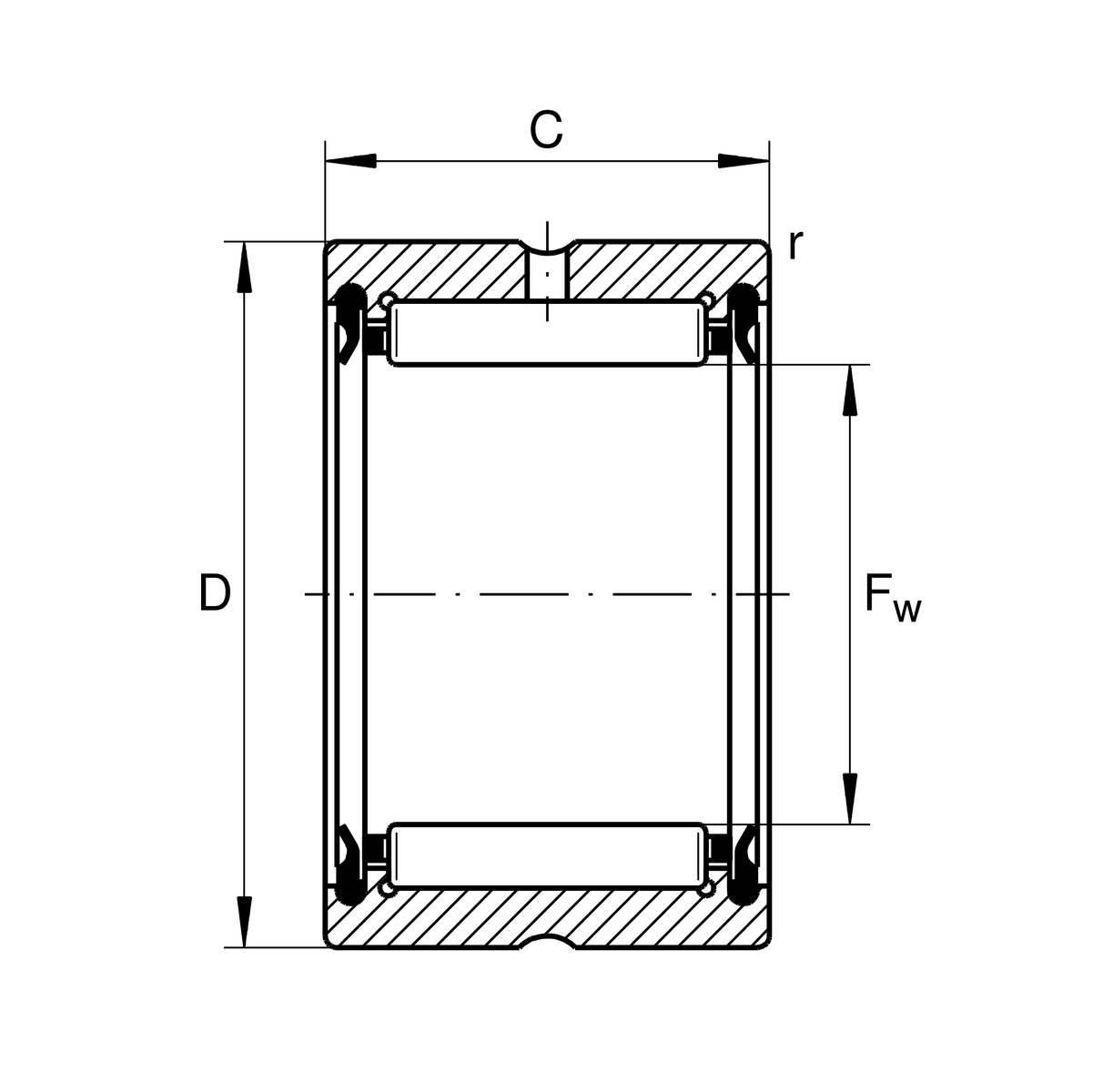

Main Dimensions & Performance Data
| Fw | 48 mm | Under roller diameter |
| D | 62 mm | Outside diameter |
| B | 22 mm | Width |
| Cr | 41,000 N | Basic dynamic load rating, radial |
| C0r | 53,000 N | Basic static load rating, radial |
| Cur | 9,000 N | Fatigue load limit, radial |
| nG | 5,500 1/min | Limiting speed |
| nG Grease | 5,500 1/min | Limiting speed for grease lubrication |
| ≈m | 140.32 g | Weight |
Dimensions
| rmin | 0.6 mm | Minimum chamfer dimension |
| C | 22 mm | Width, outer ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | Standard |
| Lubrication hole | with | with |
| Coating | Without | |
| Sealing | 2RSR | Contact seals on both sides |
| Special features | Without | |
| Number of rolling element rows | 1 | Single-row design |
