Main Dimensions & Performance Data
| d | 340 mm | Bore diameter |
| D | 620 mm | Outside diameter |
| T | 170 mm | Height |
| Ca | 6,200,000 N | Basic dynamic load rating, axial |
| C0a | 22,700,000 N | Basic static load rating, axial |
| Cua | 1,650,000 N | Fatigue load limit, axial |
| nG | 600 1/min | Limiting speed |
| nϑr | 171 1/min | Reference speed |
| ≈m | 265.06 kg | Weight |

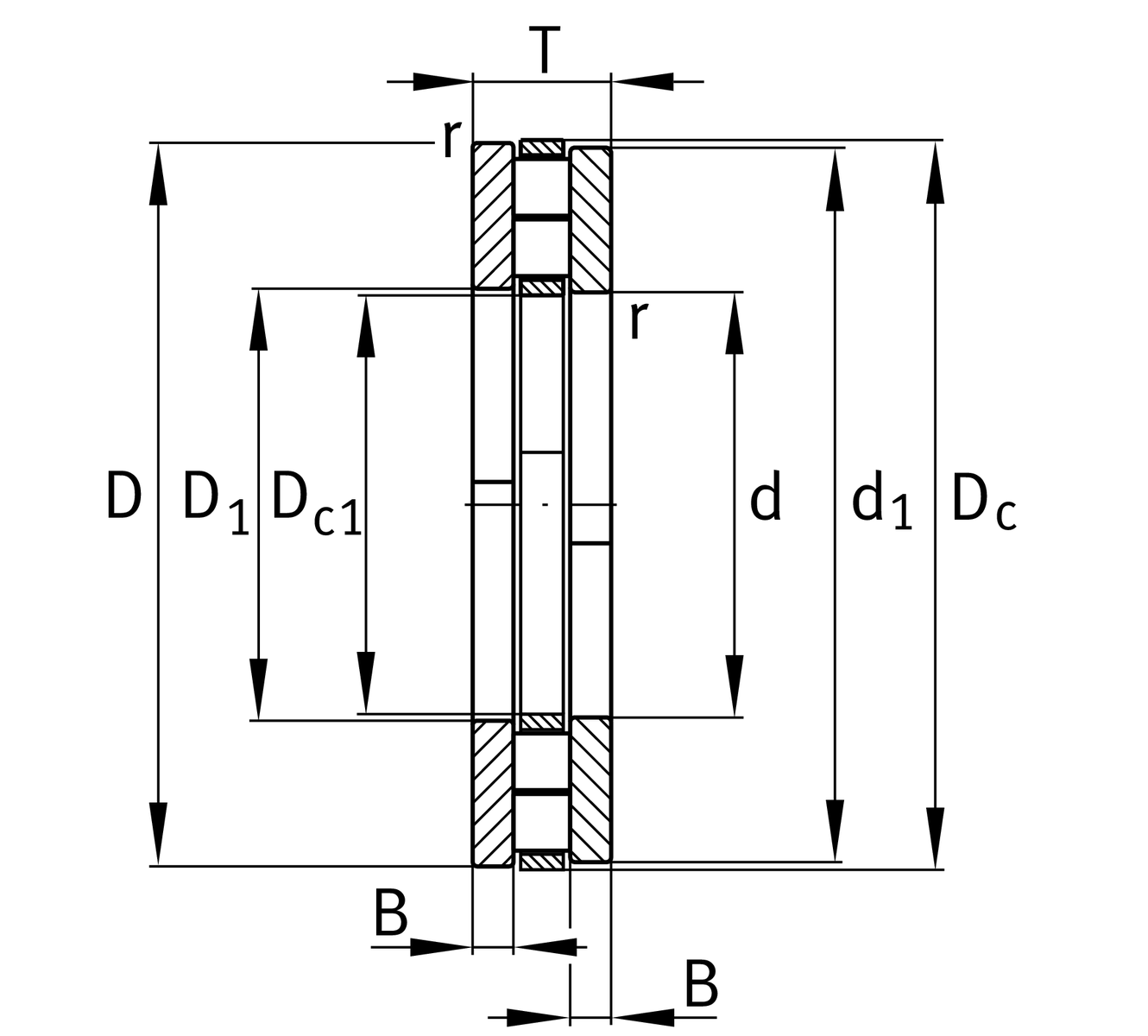

Dimensions
| D1 | 345 mm | Bore diameter housing washer |
| d1 | 615 mm | Rip diameter shaft washer |
| B | 49 mm | Width |
| rmin | 7.5 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K89468-M | Axial roller and cage assembly | |
GS89468 | Housing Washer | |
WS89468 | Shaft washer |
