Main Dimensions & Performance Data
| d | 60 mm | Bore diameter |
| B | 23 mm | Width, inner ring |
| Cr | 86,000 N | Basic dynamic load rating, radial |
| C0r | 129,000 N | Basic static load rating, radial |
| ≈m | 0.43 kg | Weight |

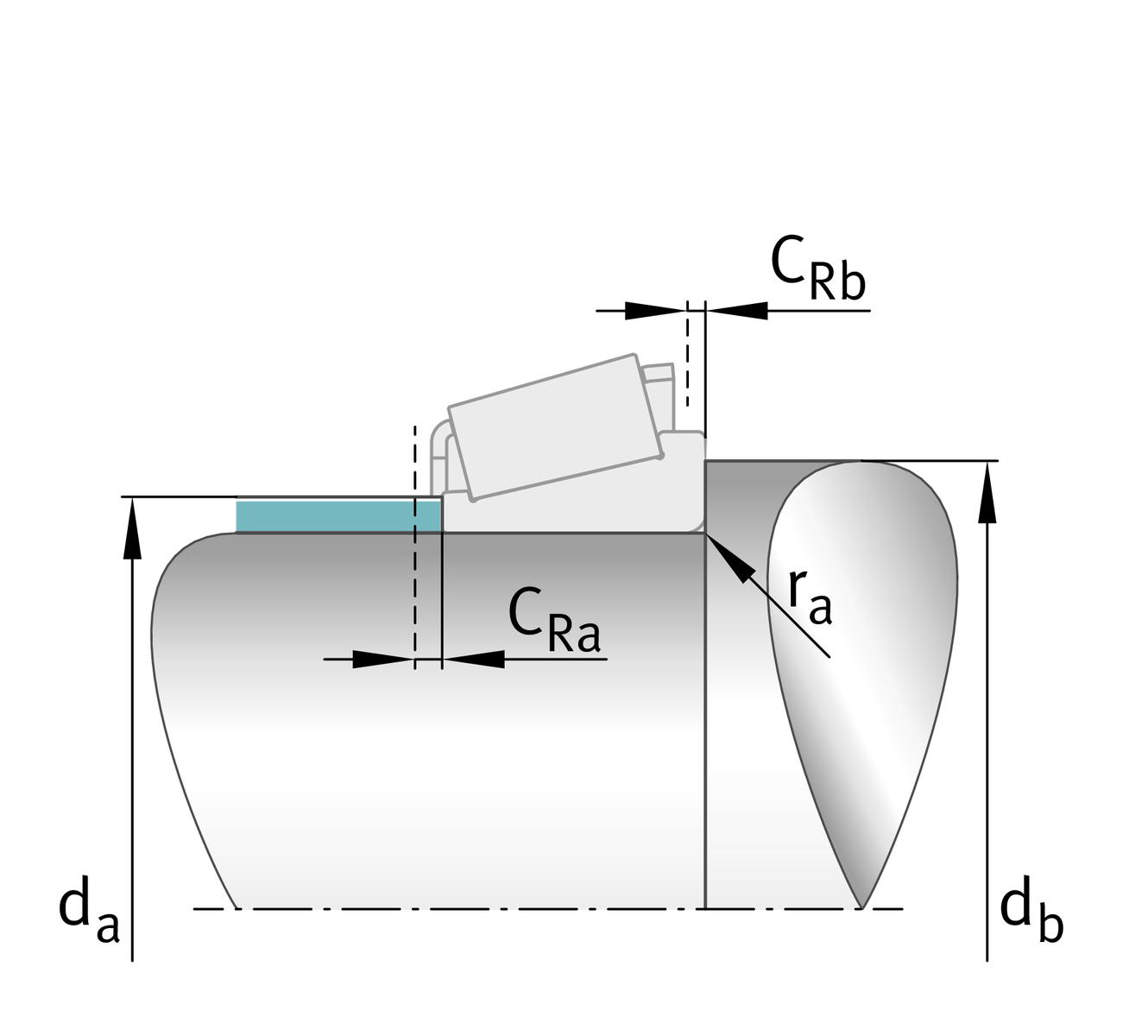

Mounting dimensions
| da max | 67 mm | Maximum diameter of shaft shoulder |
| db min | 67 mm | Minimum diameter of shaft shoulder |
| CRa min | 4 mm | Minimum axial space |
| CRb max | 0 mm | Maximum axial space |
| ra max | 1.5 mm | Maximum fillet radius of shaft |

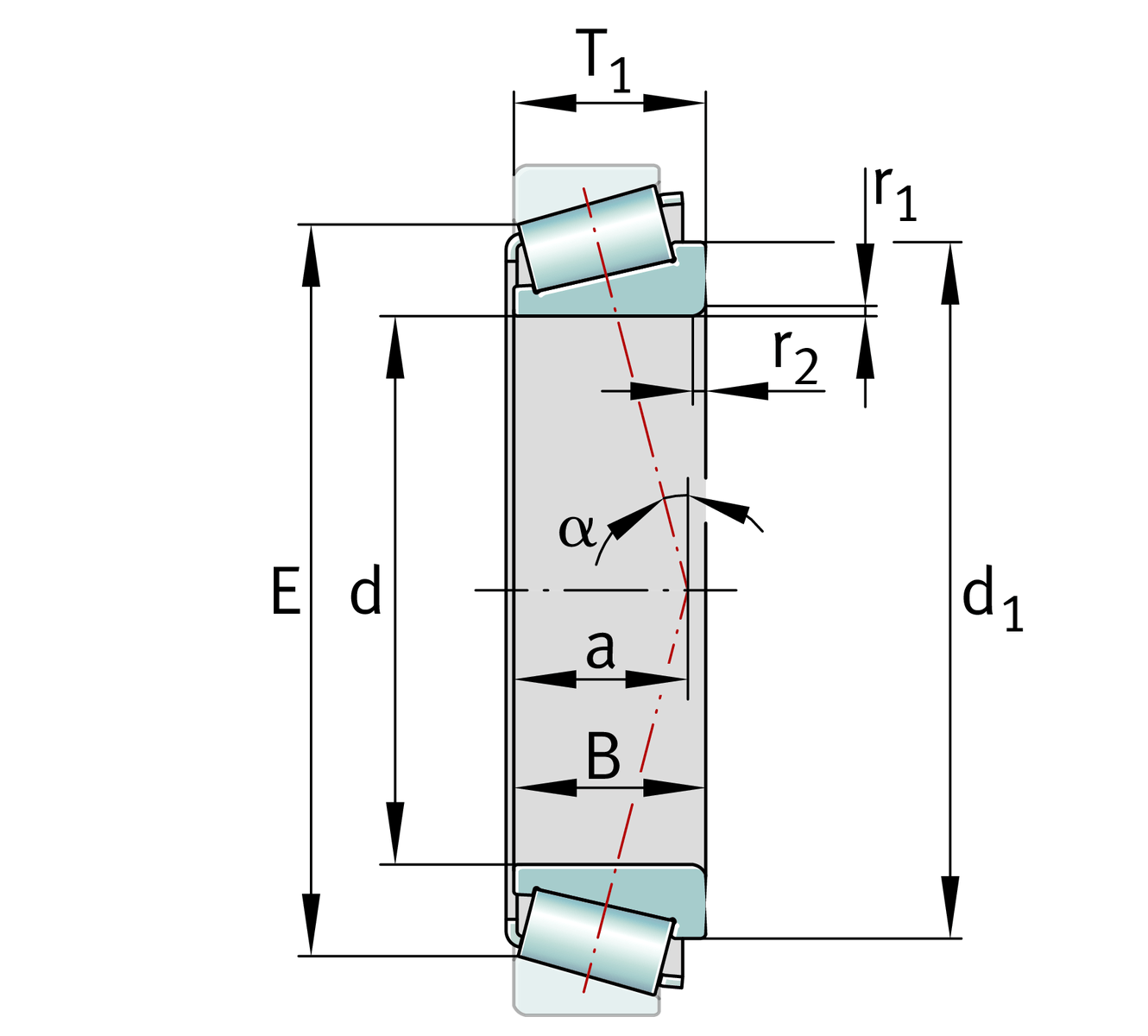

Dimensions
| r1, 2 min | 1.5 mm | Minimum chamfer dimension of inner ring back face |
| a | 21 mm | Distance between the apexes of the pressure cones |
| d1 | 67.7 mm | Guidance rib diameter of inner ring |
| T1 | 23 mm | Width, total of inner subunit assembled with a master outer ring |
| E | 80.634 mm | Inside diameter of outer ring back face |
| α | 16 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
T4CC060 | Comparative designation to ISO 10317 and ISO 355 |
Your current product variant
| Tolerance class | P6X | Class 6X (ISO 492:2014) |
| Heat treatment | W60B | Carbonitrided |
| Cage | Standard | Sheet steel cage, roller-guided |
| Internal design | Standard | |
| Quality level | Standard | |
| Number of rolling element rows | 1 | Single-row design |
