Main Dimensions & Performance Data
| d | 50 mm | Bore diameter |
| B | 27 mm | Width, inner ring |
| Cr | 130,000 N | Basic dynamic load rating, radial |
| C0r | 148,000 N | Basic static load rating, radial |
| Cur | 18,100 N | Fatigue load limit, radial |
| nG | 6,800 1/min | Limiting speed |
| nϑr | 4,450 1/min | Thermal speed rating |
| ≈m | 0.965 kg | Weight |

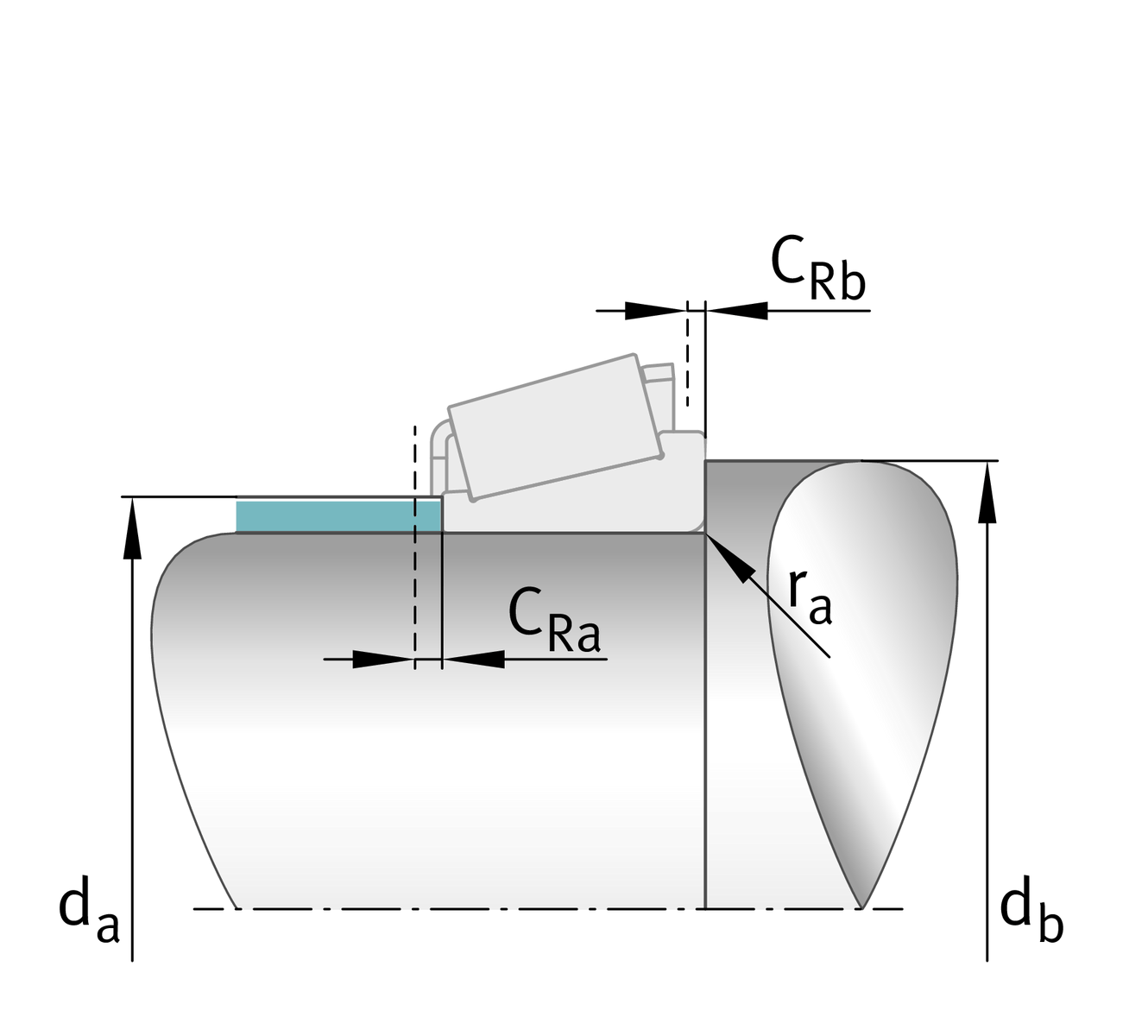

Mounting dimensions
| da max | 65 mm | Maximum diameter of shaft shoulder |
| db min | 60 mm | Minimum diameter of shaft shoulder |
| CRa min | 6.3 mm | Minimum axial space |
| CRb max | 0.2 mm | Maximum axial space |
| ra max | 2.5 mm | Maximum fillet radius of shaft |

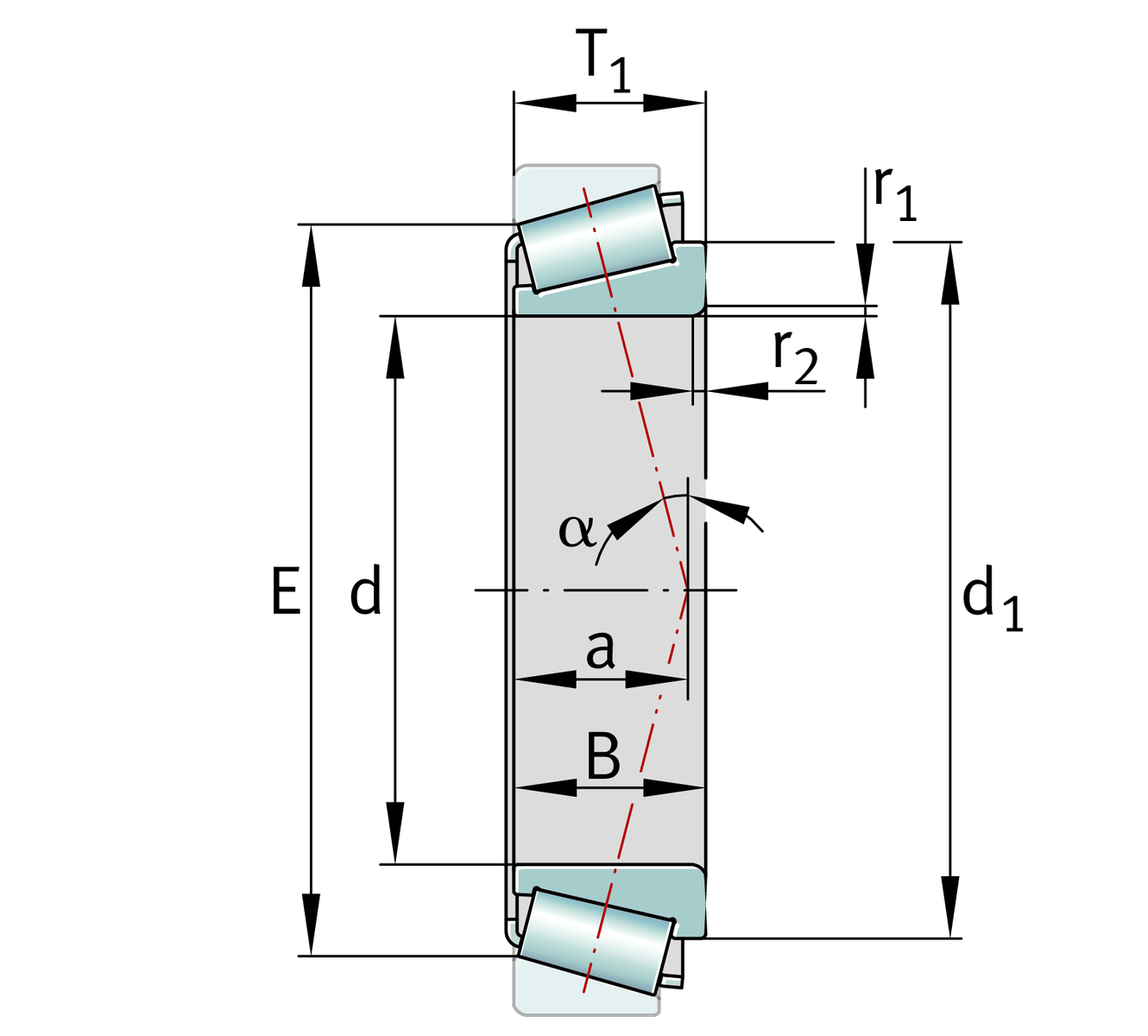

Dimensions
| r1, 2 min | 2.5 mm | Minimum chamfer dimension of inner ring back face |
| a | 21 mm | Distance between the apexes of the pressure cones |
| d1 | 77.6 mm | Guidance rib diameter of inner ring |
| T1 | 29.25 mm | Width, total of inner subunit assembled with a master outer ring |
| E | 90.633 mm | Inside diameter of outer ring back face |
| α | 12.95278 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| e | 0.35 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y | 1.74 | Dynamic axial load factor |
| Y0 | 0.96 | Static axial load factor |
Additional information
T2FB050 | Comparative designation to ISO 10317 and ISO 355 |
Your current product variant
| Tolerance class | PN | Normal (ISO 492:2014) |
| Heat treatment | Standard | |
| Cage | Standard | Sheet steel cage, roller-guided |
| Internal design | Standard | |
| Quality level | Standard | |
| Number of rolling element rows | 1 | Single-row design |
