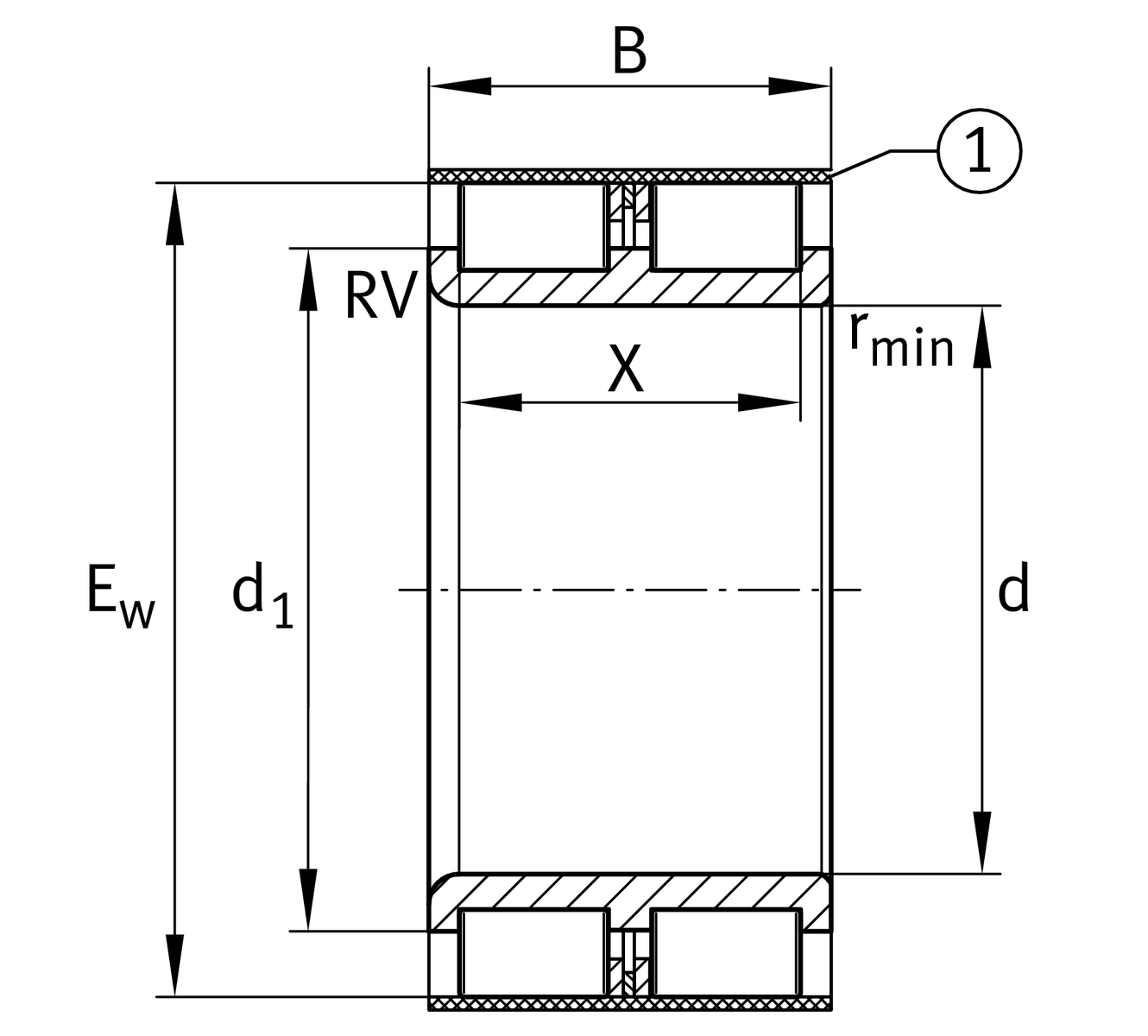

Main Dimensions & Performance Data
| d | 40 mm | Rib diameter inner ring |
| Ew | 61.74 mm | |
| B | 36 mm | Width |
| Cr | 113,000 N | Basic dynamic load rating, radial |
| C0r | 133,000 N | Basic static load rating, radial |
| Cur | 22,800 N | Fatigue load limit, radial |
| nG | 6,300 1/min | Limiting speed |
| nϑr | 3,150 1/min | Reference speed |
| ≈m | 0.34 kg | Weight |

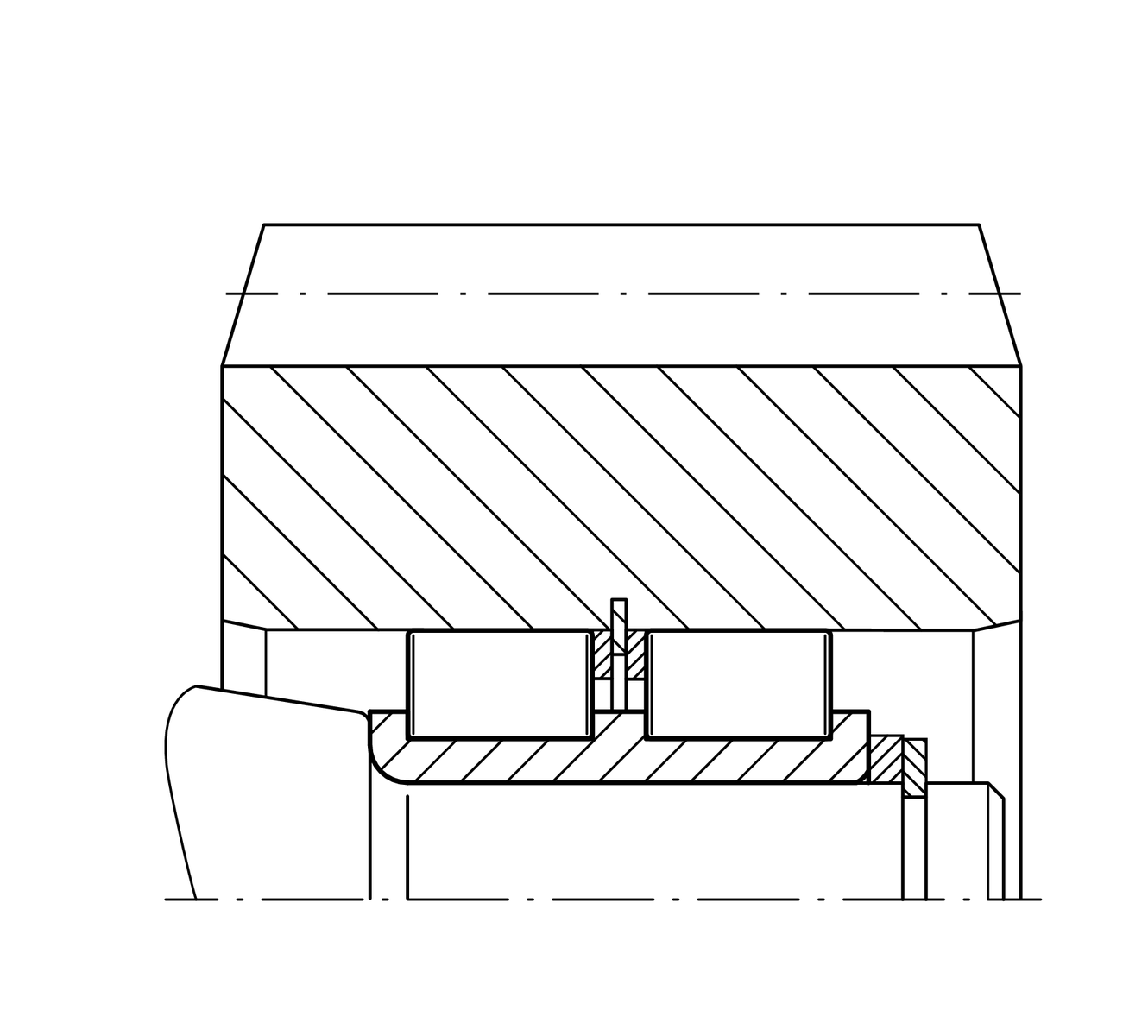

Mounting dimensions
| da min | 50.5 mm | Minimum diameter shaft shoulder |
Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| X | 29 mm | raceway width |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Number of rolling element rows | 2 | Double-row design |
