Main Dimensions & Performance Data
| d | 30 mm | Rib diameter inner ring |
| Ew | 49.6 mm | |
| B | 25 mm | Width |
| Cr | 56,000 N | Basic dynamic load rating, radial |
| C0r | 55,000 N | Basic static load rating, radial |
| Cur | 9,800 N | Fatigue load limit, radial |
| nG | 8,100 1/min | Limiting speed |
| nϑr | 4,050 1/min | Reference speed |
| ≈m | 0.16 kg | Weight |

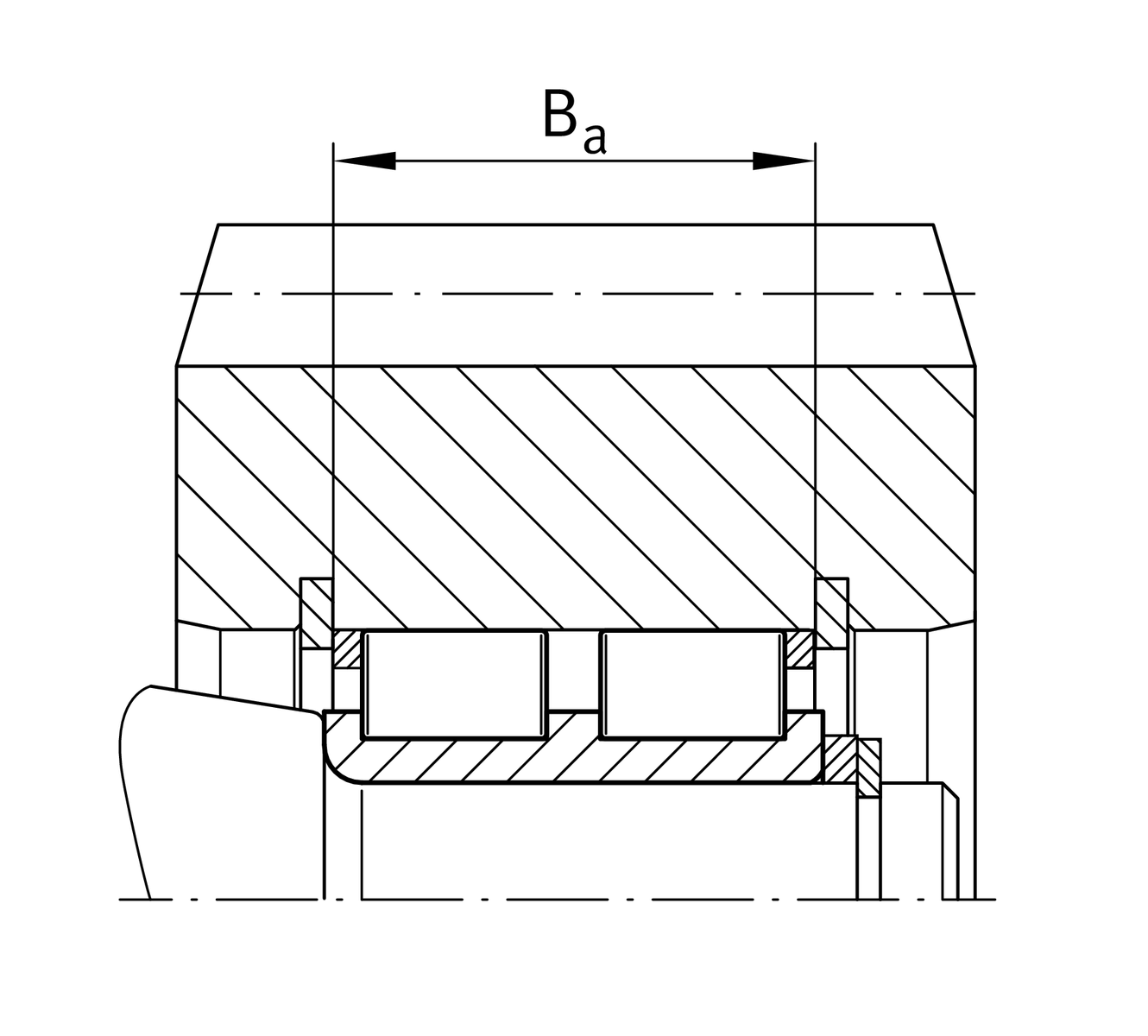

Mounting dimensions
| da min | 40 mm | Minimum diameter shaft shoulder |

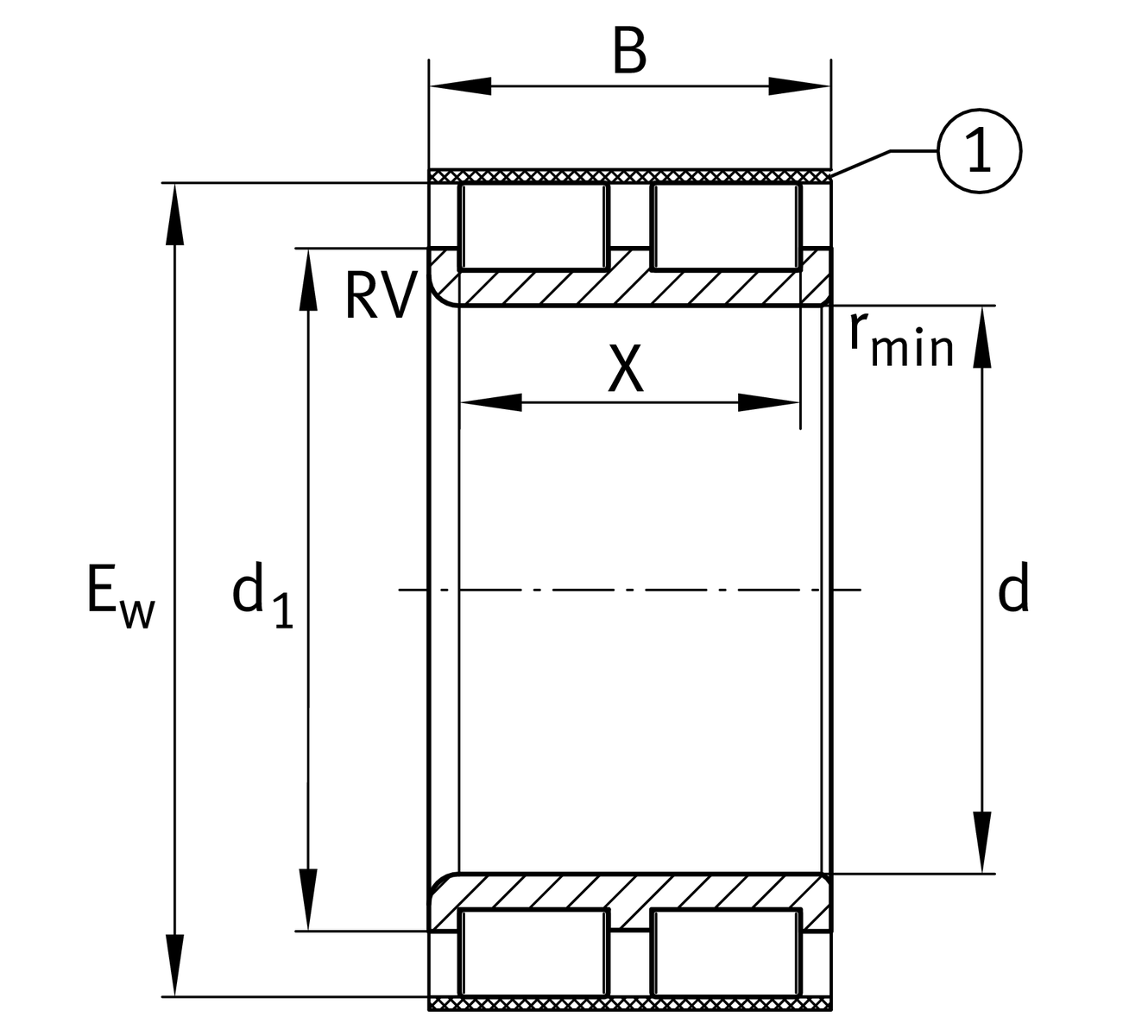

Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| X | 19.3 mm | raceway width |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Number of rolling element rows | 2 | Double-row design |
