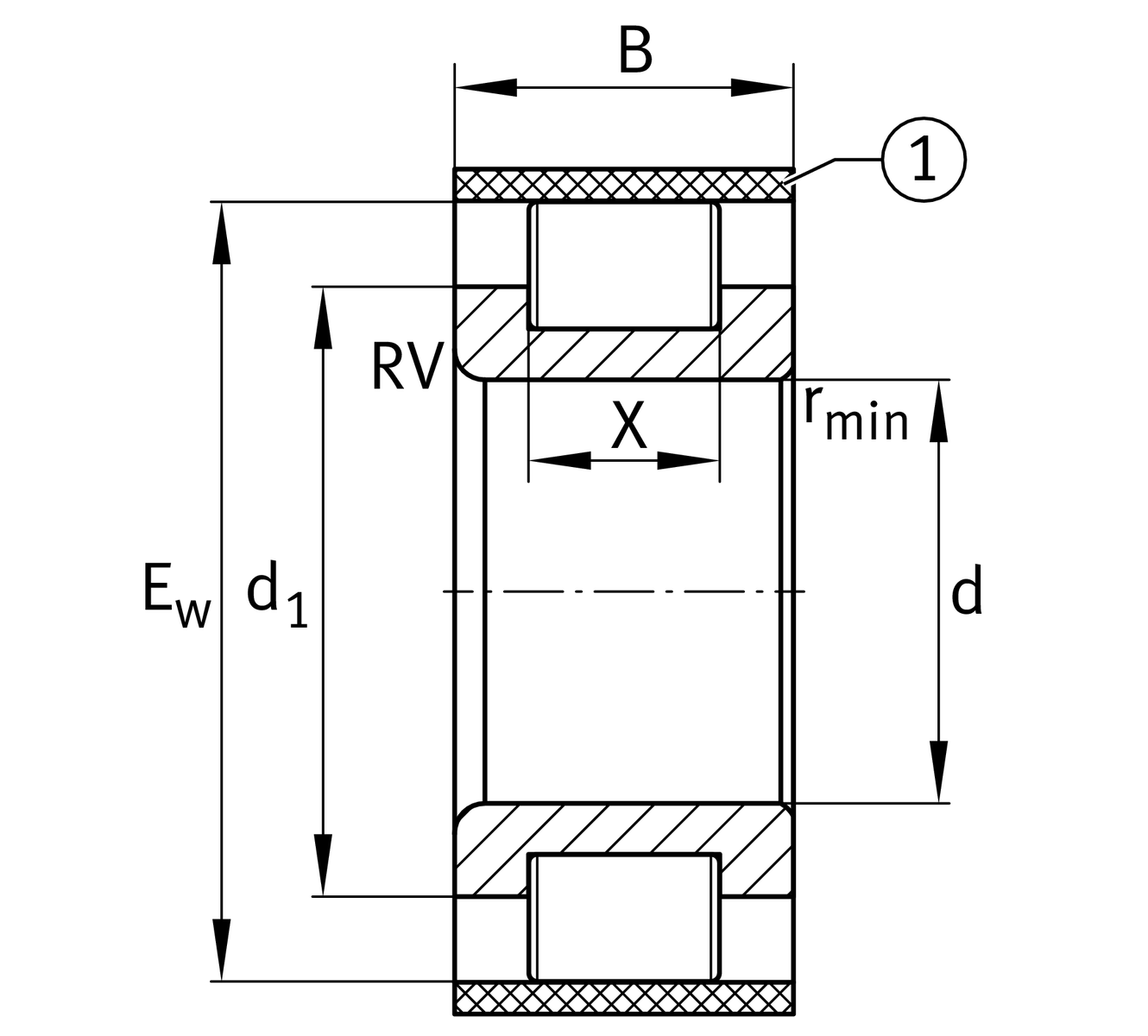

Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| Ew | 49.6 mm | Outer envelope circle |
| B | 19 mm | Width |
| Cr | 45,000 N | Basic dynamic load rating, radial |
| C0r | 42,000 N | Basic static load rating, radial |
| Cur | 7,600 N | Fatigue load limit, radial |
| nG | 8,100 1/min | Limiting speed |
| ≈m | 0.12 kg | Weight |

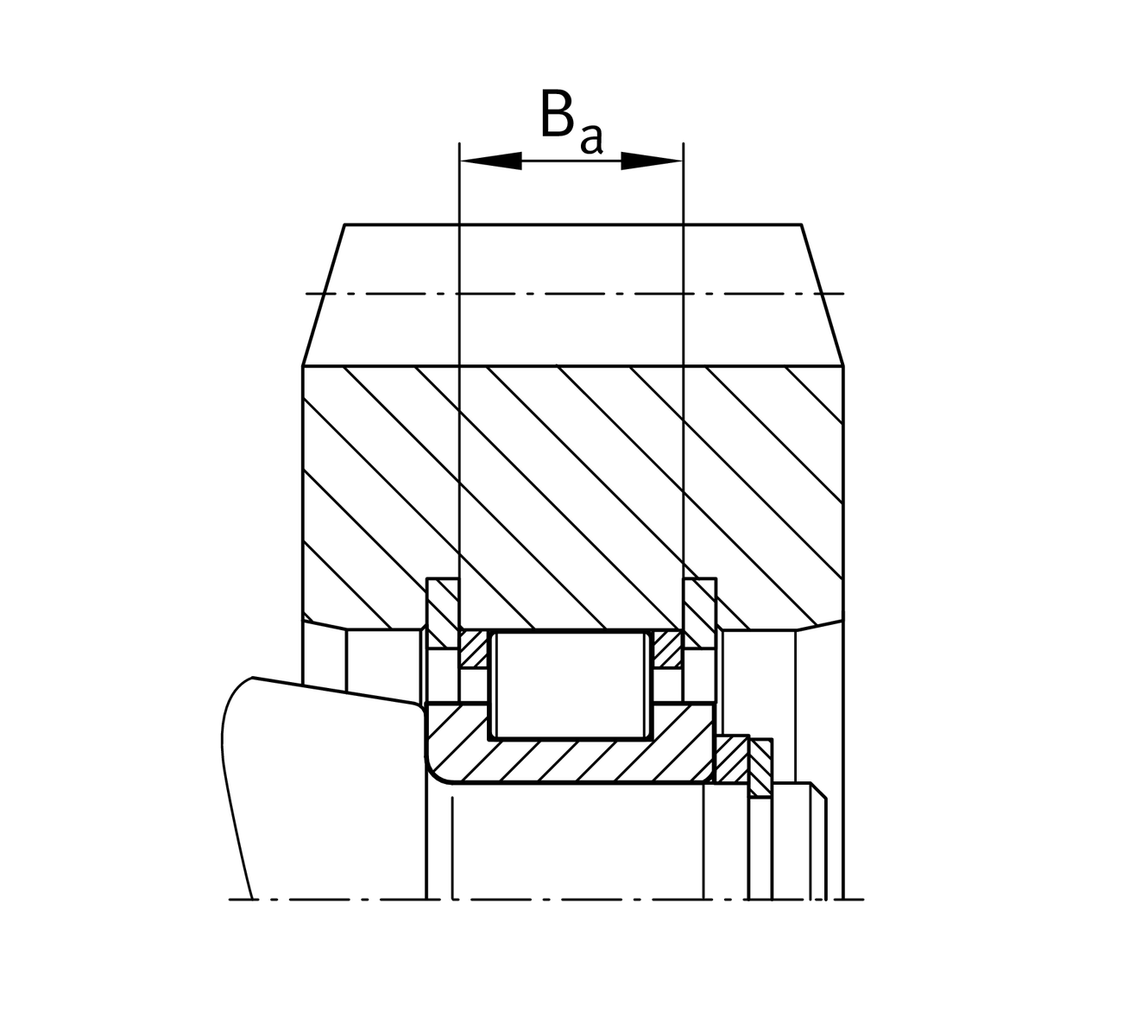

Mounting dimensions
| da min | 40 mm | Minimum diameter shaft shoulder |
| X | 10 mm | raceway width |
Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| d1 | 40 mm | Maximum rib diameter inner ring |
| TK | 42.6 mm | pitch circle |
| RV | 3,50 | edge radius |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Design variant | RV | with edge radius |
| Number of rolling element rows | 1 | Single-row design |
