Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| Ew | 55.19 mm | Outer envelope circle |
| B | 20 mm | Width |
| Cr | 70,000 N | Basic dynamic load rating, radial |
| C0r | 64,000 N | Basic static load rating, radial |
| Cur | 10,400 N | Fatigue load limit, radial |
| nG | 7,400 1/min | Limiting speed |
| ≈m | 0.19 kg | Weight |
Mounting dimensions
| da min | 42 mm | Minimum diameter shaft shoulder |
| X | 14 mm | raceway width |

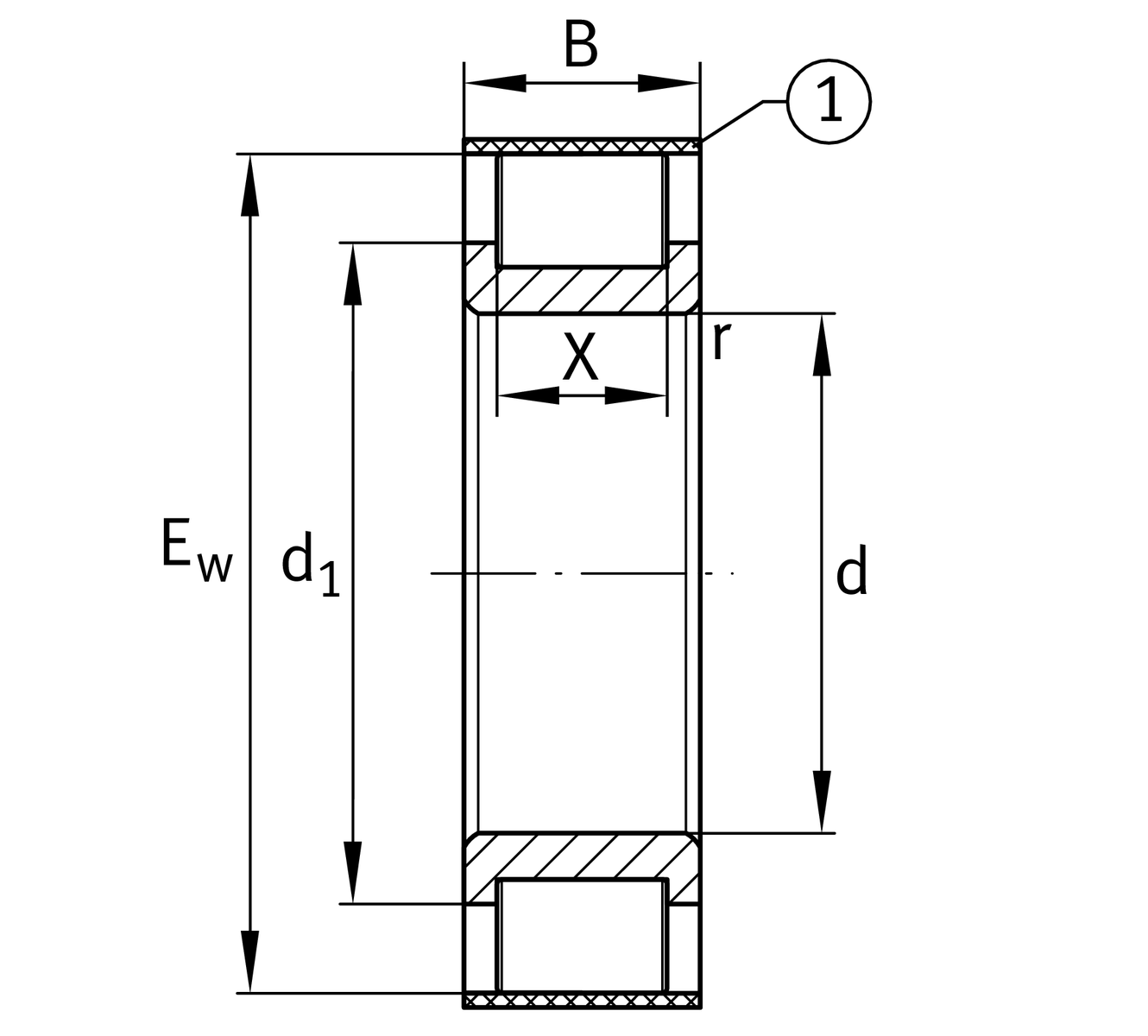

Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| d1 | 42 mm | Maximum rib diameter inner ring |
| TK | 46.19 mm | pitch circle |
| RV | 2,75 | edge radius |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Design variant | RV | with edge radius |
| Number of rolling element rows | 1 | Single-row design |
