FAG INA Schaeffler
INA
IR360X390X80-XL
Inner ring IR360X390X80-XL
Thêm vào yêu cầu báo giá

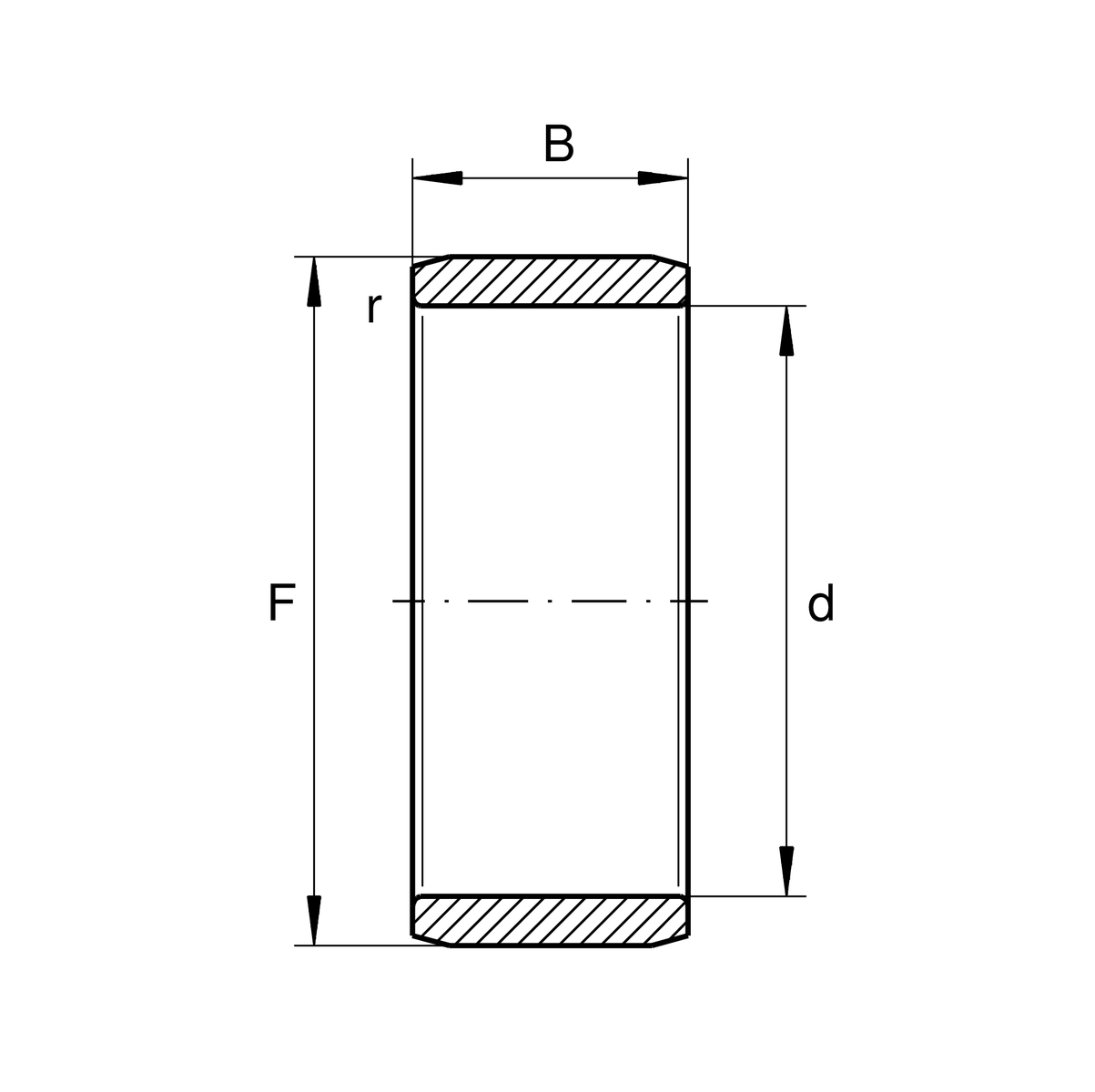

Main Dimensions & Performance Data
d
360 mm
Bore diameter
F
390 mm
Raceway diameter inner ring
B
80 mm
Width
-0.128 µm
Raceway diameter upper tolerance
-0.182 µm
Raceway diameter lower tolerance
rmin
2.1 mm
Minimum chamfer dimension
≈m
10.9 kg
Weight

Your current product variant
Lubrication holeWithout
Special featuresWithout
