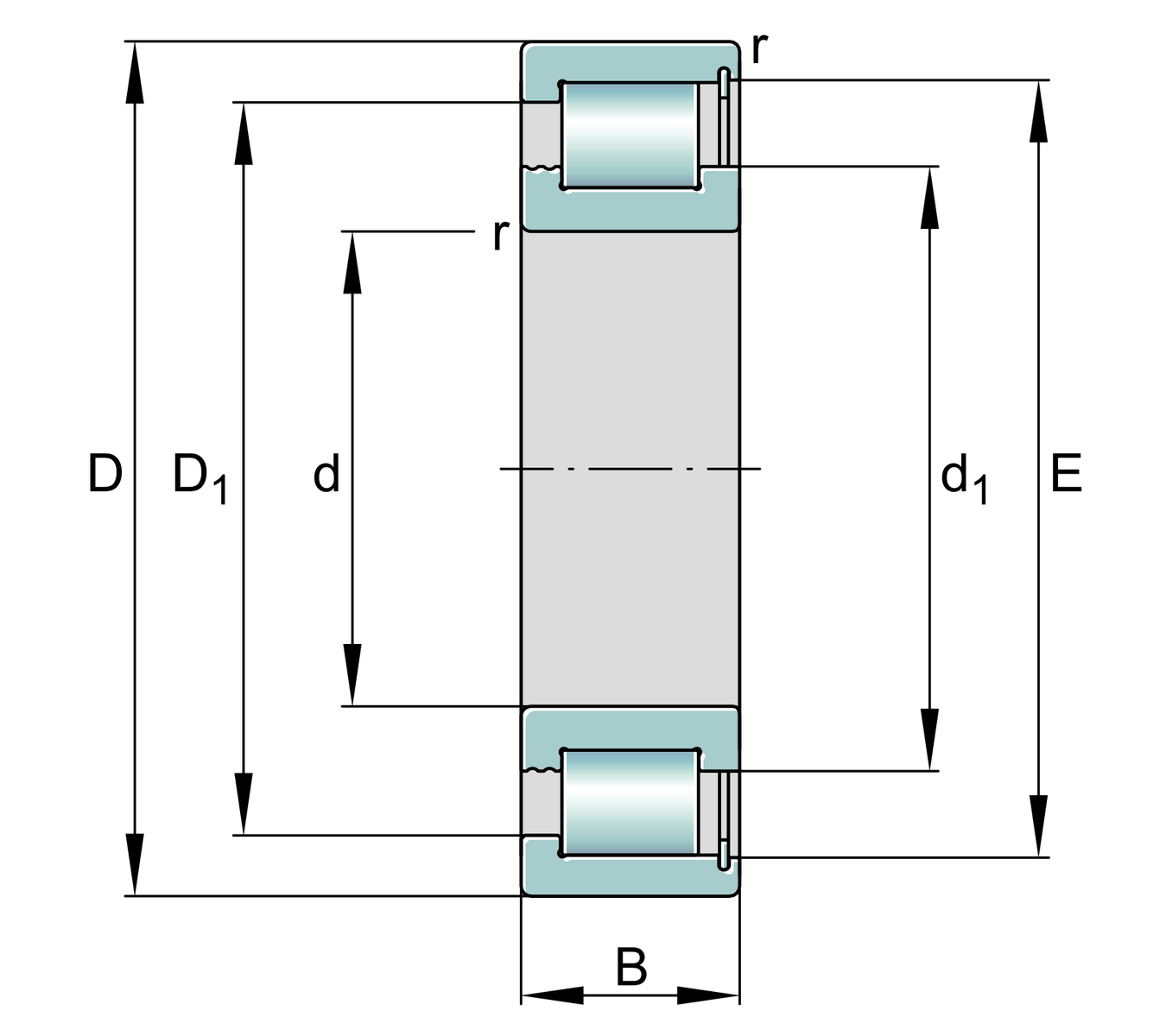

Main Dimensions & Performance Data
| d | 300 mm | Bore diameter |
| D | 380 mm | Outside diameter |
| B | 38 mm | Width |
| Cr | 455,000 N | Basic dynamic load rating, radial |
| C0r | 840,000 N | Basic static load rating, radial |
| Cur | 91,000 N | Fatigue load limit, radial |
| nG | 920 1/min | Limiting speed |
| nϑr | 680 1/min | Reference speed |
| ≈m | 9.336 kg | Weight |

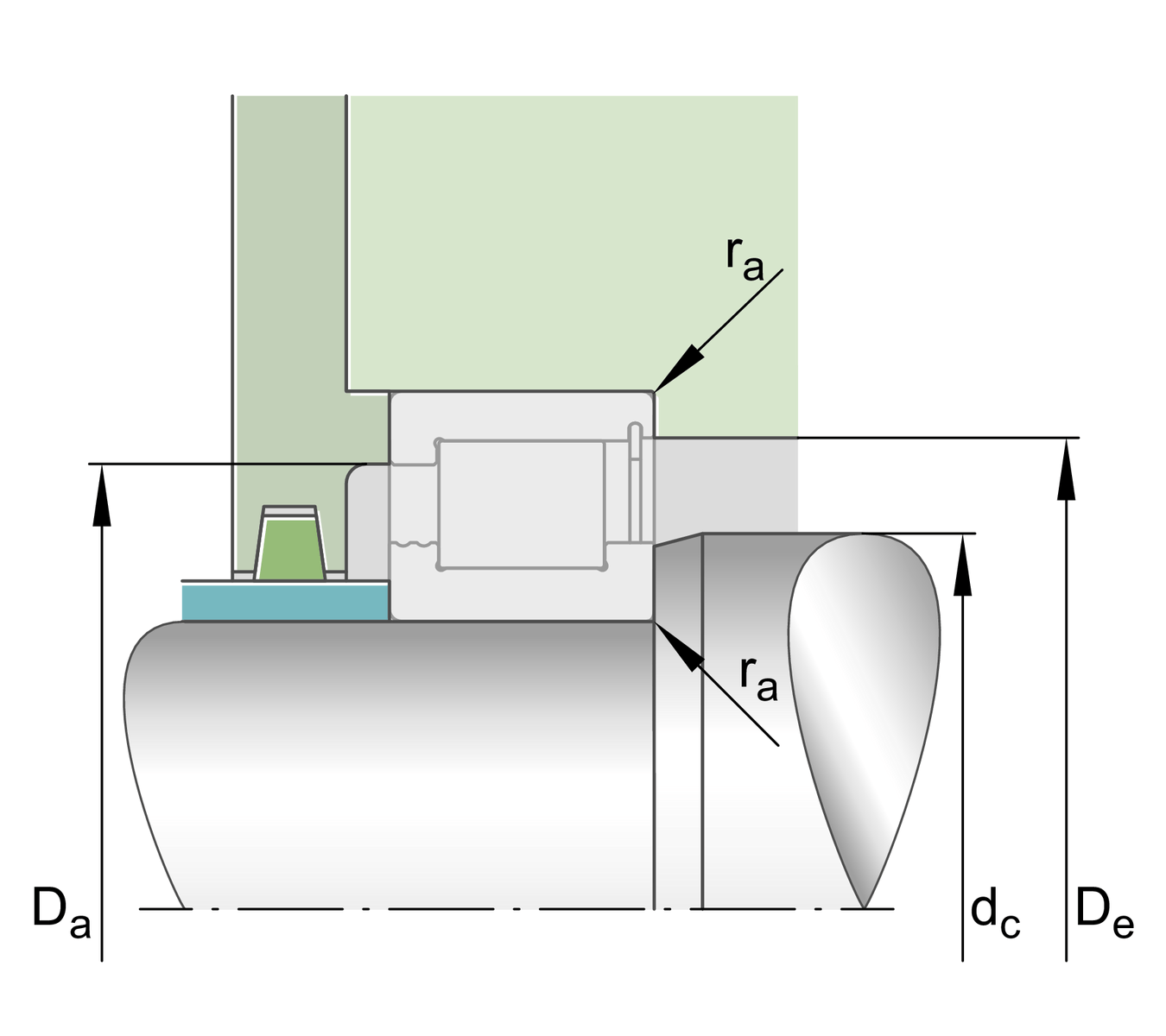

Mounting dimensions
| da min | 323.5 mm | Minimum diameter shaft shoulder |
| dc min | 323.5 mm | Minimum shaft shoulder |
| Da max | 350.5 mm | Maximum diameter of housing shoulder |
| De min | 360 mm | Minimum diameter of housing shoulder |
| ra max | 2.1 mm | Maximum recess radius |
| E | 360 mm | Raceway diameter outer ring |
Dimensions
| rmin | 2.1 mm | Minimum chamfer dimension |

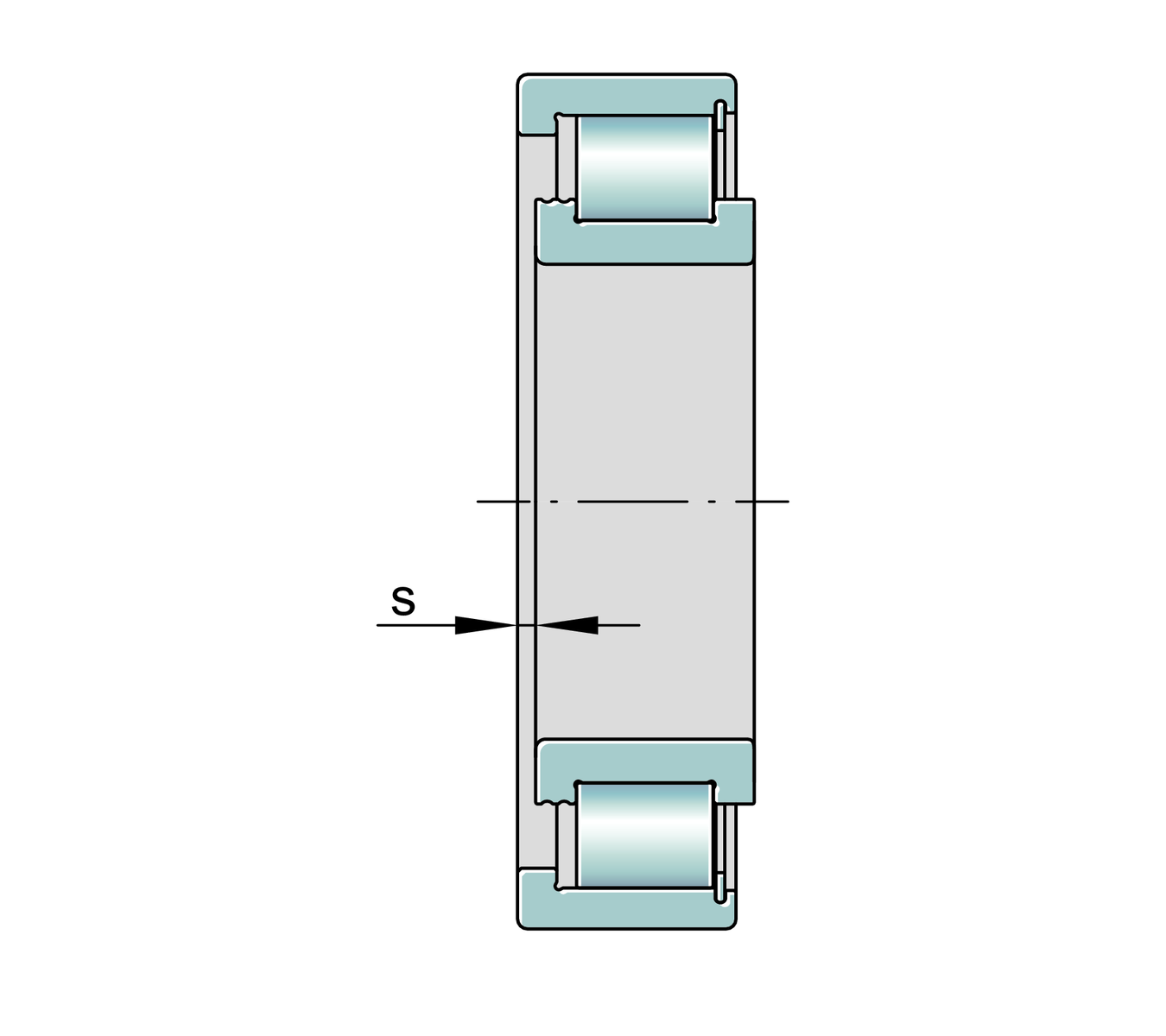

| s | 3 mm | Axial displacement |
| d1 | 323.5 mm | Maximum rib diameter inner ring |
| D1 min | 350.5 mm | Minimum rib diameter outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |
