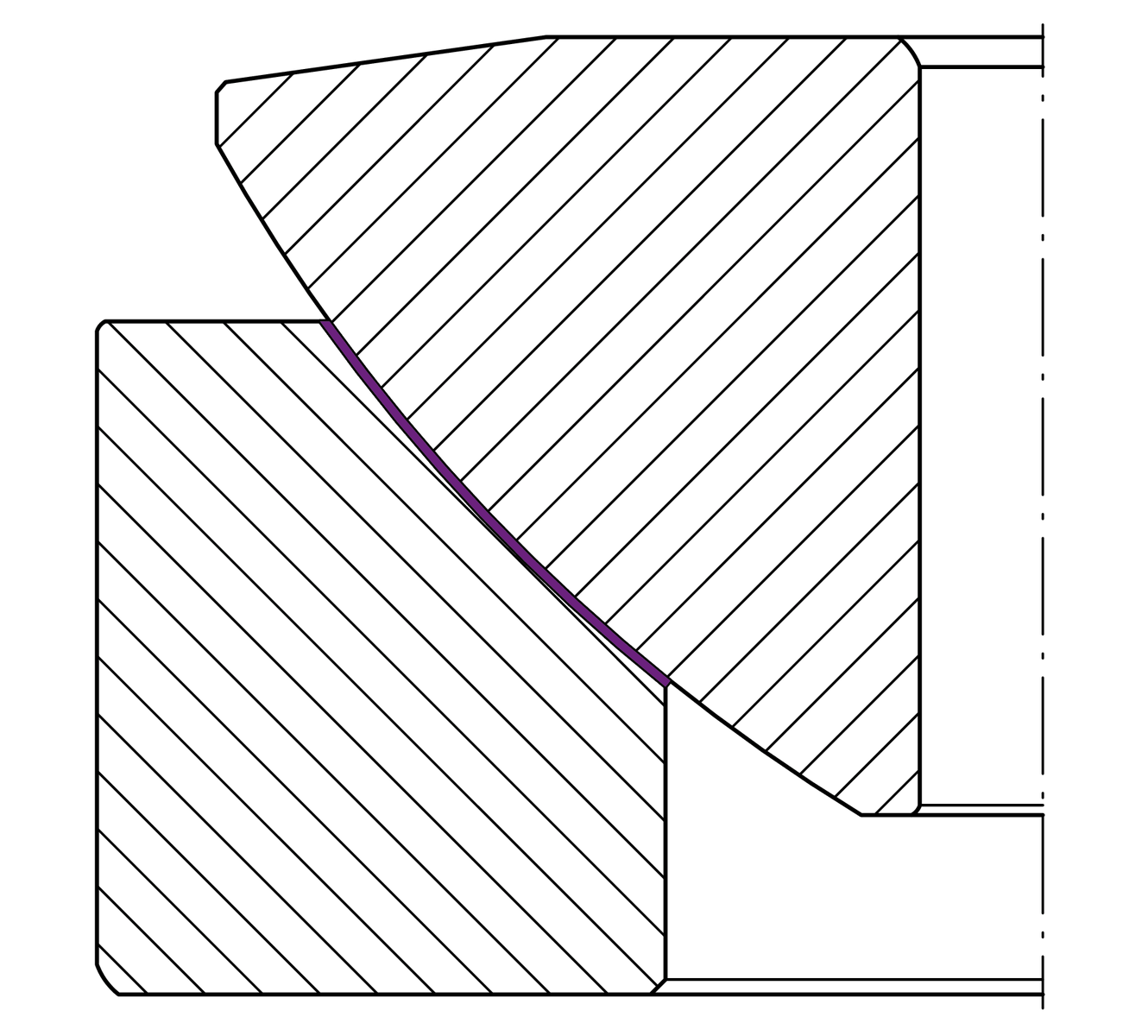

GE320-AW-XL
Spherical plain bearing GE320-AW-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
320 mm
Bore diameter bearing
D
520 mm
Outside diameter bearing
T
116 mm
Height
B
105 mm
Width Inner ring
Ca
21,100,000 N
Basic dynamic load rating, axial
C0a
35,200,000 N
Basic static load rating, axial
≈m
112 kg
Weight

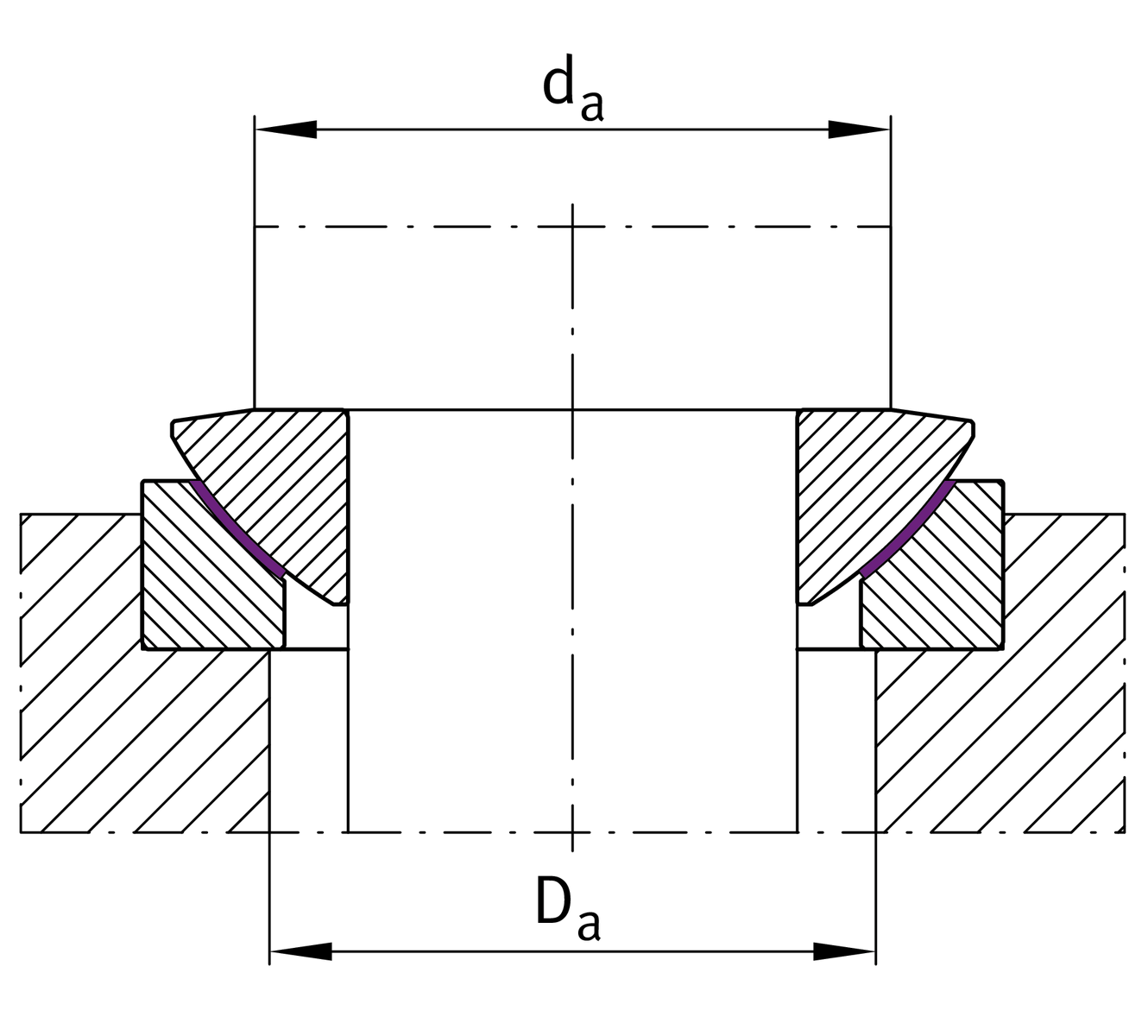

Mounting dimensions
r1smin
4 mm
Edge Spacing
r2smin
1.1 mm
Edge Spacing
da max
405 mm
Connection measure Inner ring
Da min
402 mm
Housing Connection Diameter

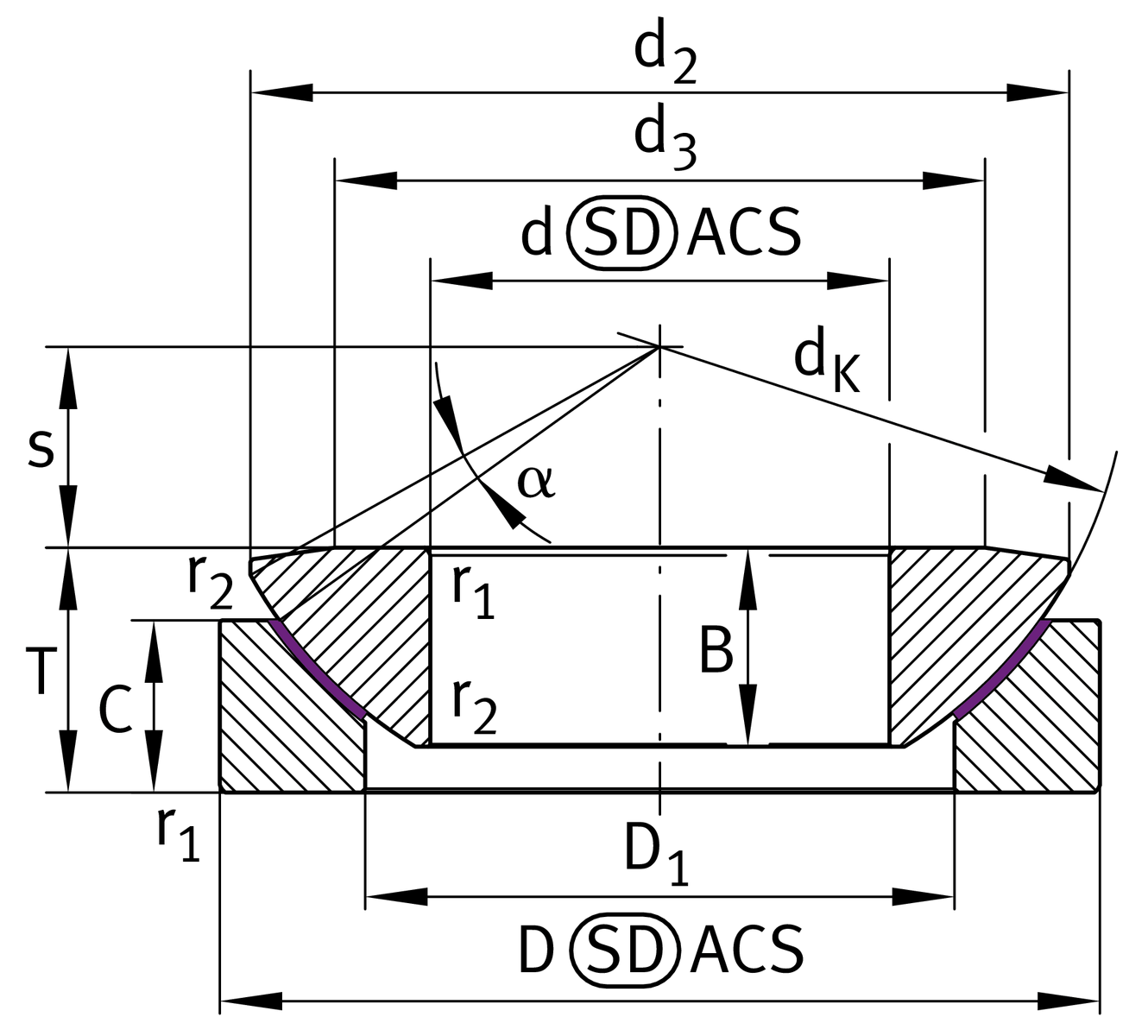

Dimensions
dK
540 mm
Ball diameter
d2
500 mm
Outer eye diameter
d3
405 mm
Front surface diameter of shaft washer
D1
380 mm
Bore diameter of housing washer
C
91 mm
Width Outer ring
s
95 mm
Plane Surface Spacing
α
4 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.04 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.05 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.8 mm
Height, lower tolerance
BUT
-0.8 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.8 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.
