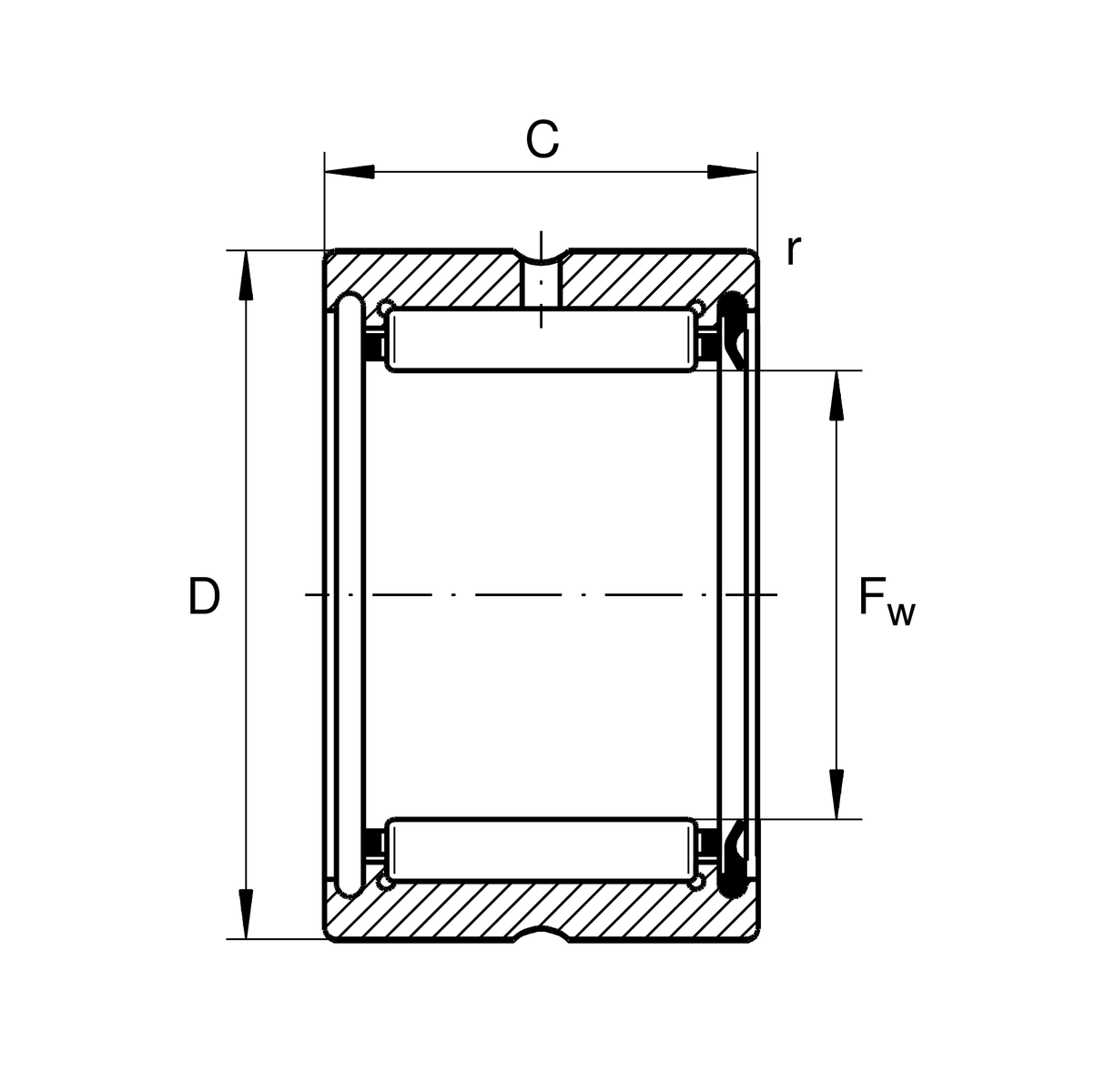

Main Dimensions & Performance Data
| Fw | 52 mm | Under roller diameter |
| D | 68 mm | Outside diameter |
| C | 22 mm | Width, outer ring |
| Cr | 43,000 N | Basic dynamic load rating, radial |
| C0r | 59,000 N | Basic static load rating, radial |
| Cur | 9,900 N | Fatigue load limit, radial |
| nG | 5,100 1/min | Limiting speed |
| ≈m | 0.183 kg | Weight |
Dimensions
| rmin | 0.6 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Lubricant | Without | |
| Cage | Standard | |
| Cage feature | Standard | |
| Tolerance class | PN | Normal (PN) |
