Main Dimensions & Performance Data
| d | 13 mm | Bore diameter |
| Ew | 27.15 mm | Outer envelope circle |
| B | 13 mm | Width |
| Cr | 18,400 N | Basic dynamic load rating, radial |
| C0r | 16,100 N | Basic static load rating, radial |
| Cur | 2,850 N | Fatigue load limit, radial |
| nG | 17,600 1/min | Limiting speed |
| ≈m | 0.03 kg | Weight |

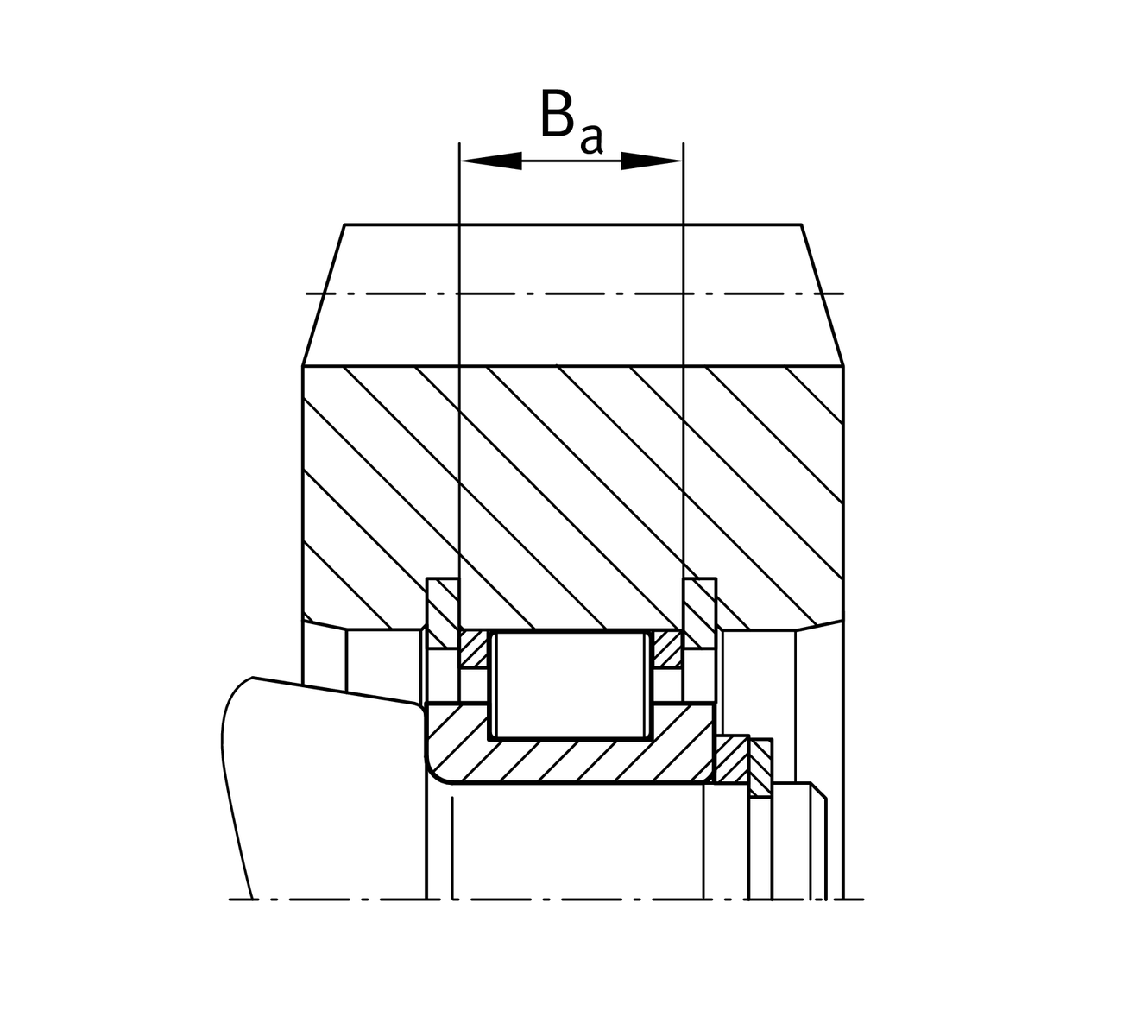

Mounting dimensions
| da min | 22.9 mm | Minimum diameter shaft shoulder |
| X | 8 mm | raceway width |

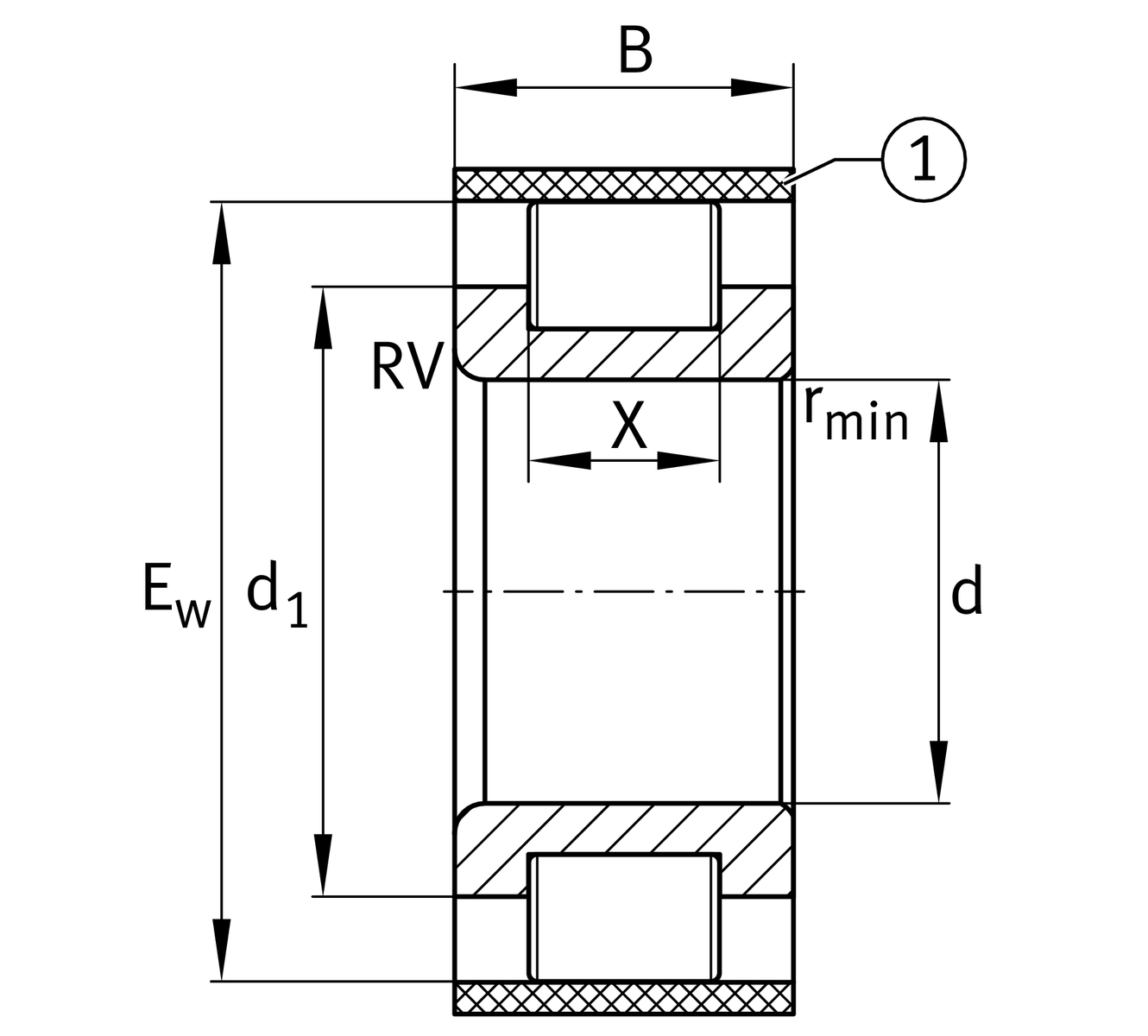

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| d1 | 22.9 mm | Maximum rib diameter inner ring |
| TK | 23.15 mm | pitch circle |
| RV | 2,30 | edge radius |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Design variant | RV | with edge radius |
| Number of rolling element rows | 1 | Single-row design |
