ZM20
Precision locknut ZM20
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
M20X1
Thread
D
32 mm
Outside diameter
h
10 mm
Height
MA
3 Nm
Mounting torque set screw
FaB
69,000 N
Breaking load, axial
ML
40 Nm
Breakawag
MAL
18 Nm
Mounting torque reference
MM
0.068 kg*cm2
Mass moment of inertia
≈m
34.994 g
Weight

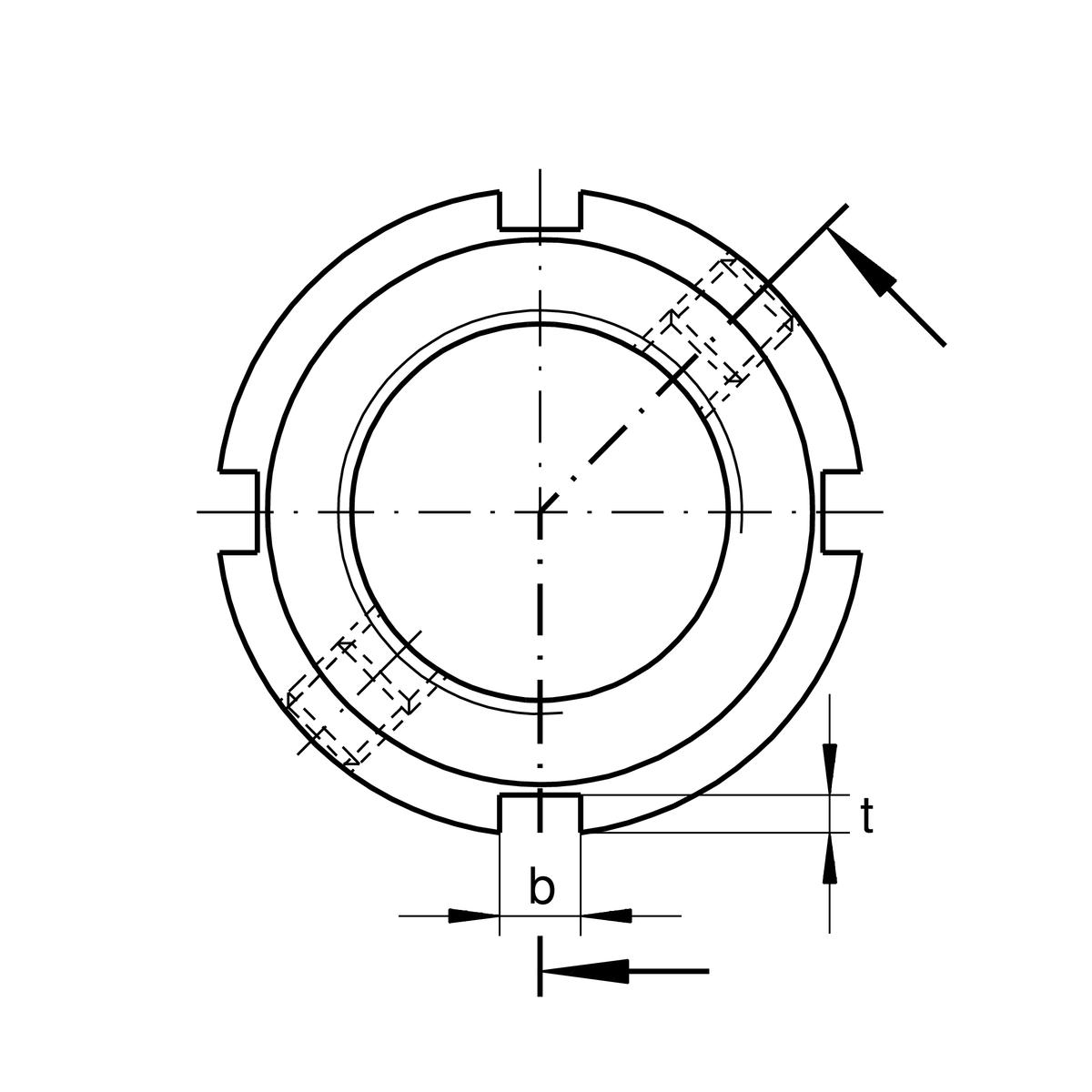

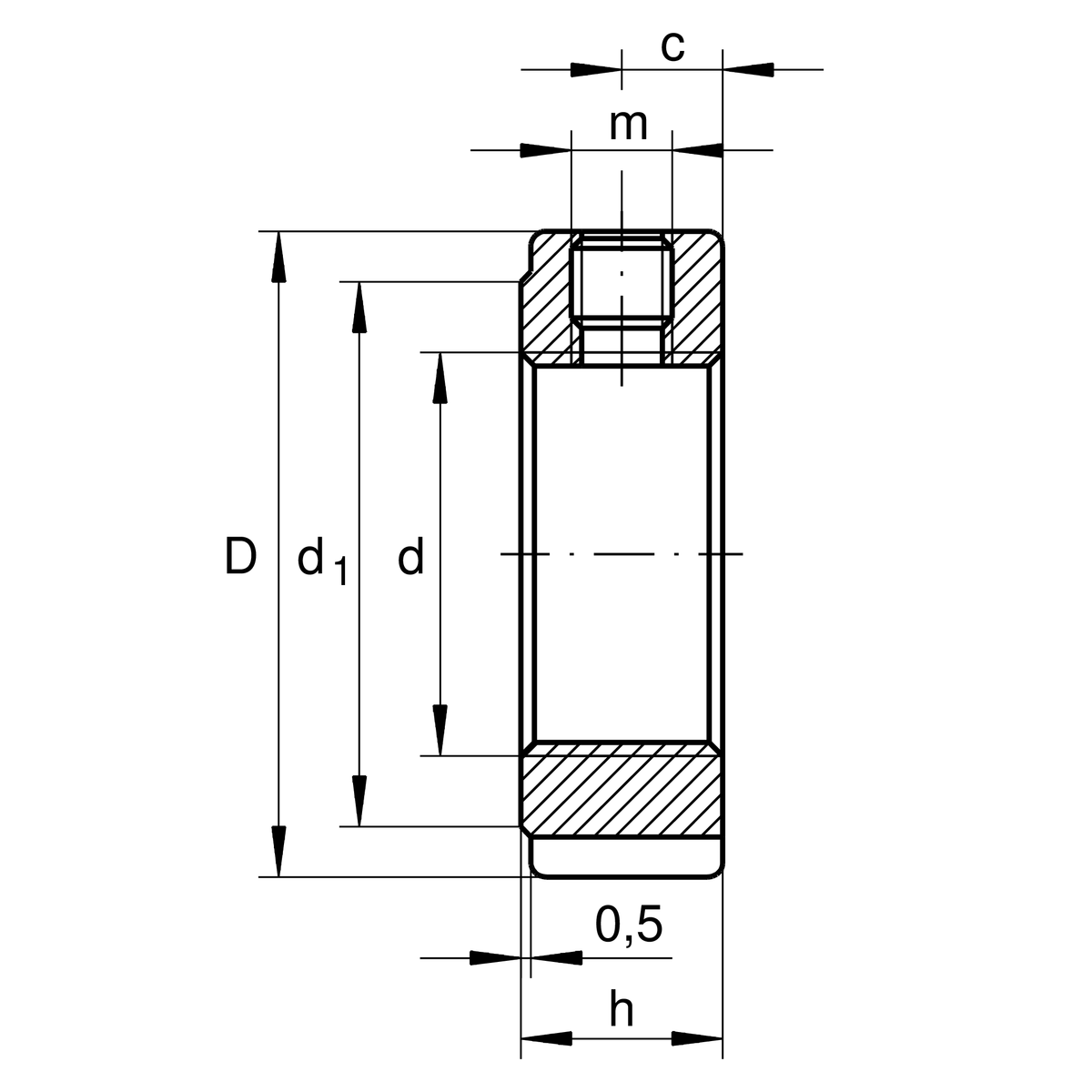

Dimensions
d1
27 mm
Plant diameter outside
t
2 mm
Hight retaining slot
b
4 mm
Width retaining slot
c
5 mm
Distance bore
m
M5
Threaded - threaded pin
