Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| DSP | 80 mm | Outside diameter |
| B | 42.9 mm | Width |
| Cur | 940 N | Fatigue load limit, radial |
| B1 | 56.5 mm | Locking collar total width |
| Cr | 34,500 N | Basic dynamic load rating, radial |
| C0r | 19,800 N | Basic static load rating, radial |
| ≈m | 0.78 kg | Weight |

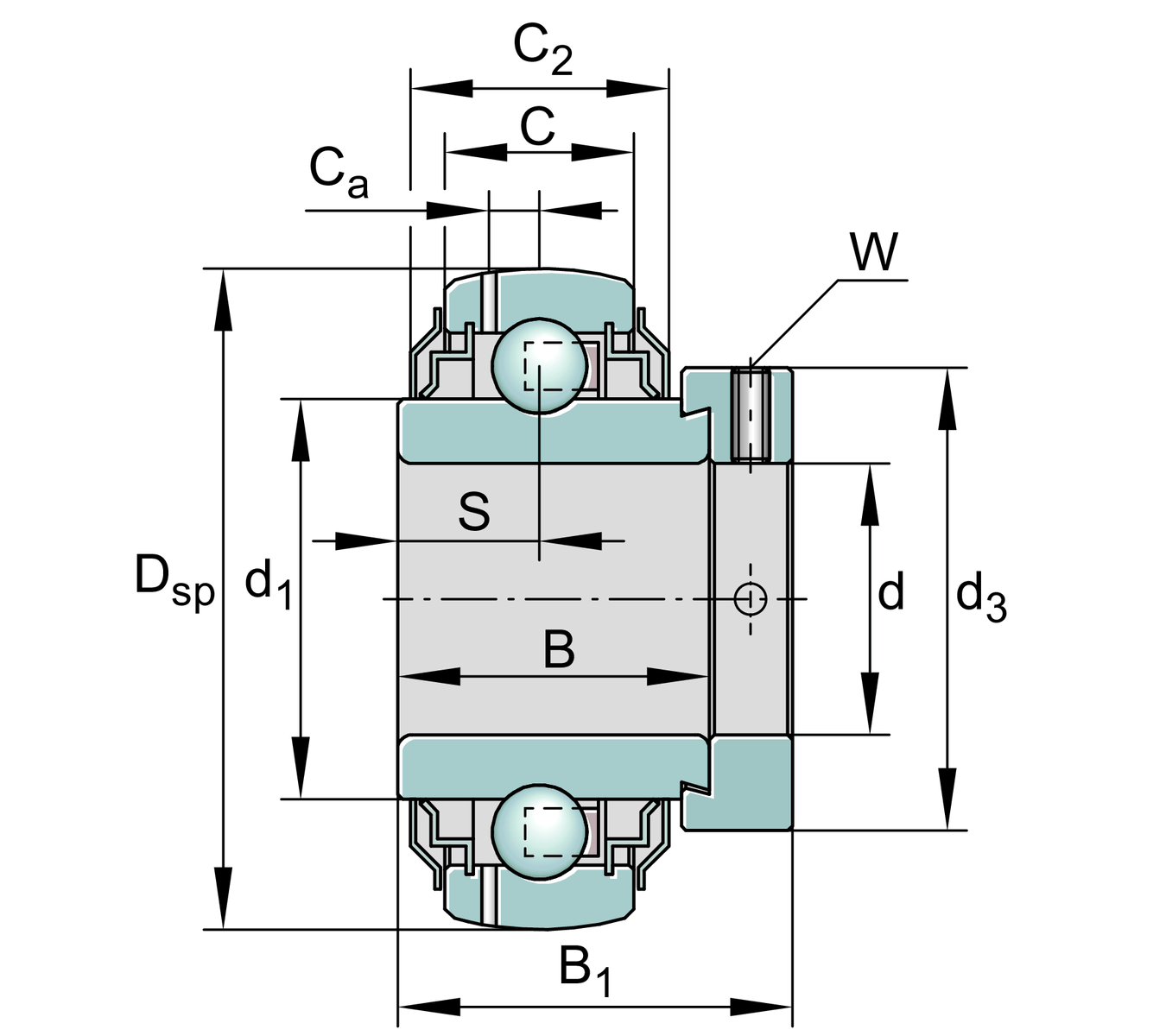

Dimensions
| C | 21 mm | Width, outer ring |
| C2 | 31.9 mm | Sealing total width |
| S | 21.4 mm | Distance raceway |
| d1 | 52.3 mm | Rib diameter inner ring |
| Ca | 6.4 mm | Distance to lubrication hole |
| d3 | 58 mm | Outside diameter locking collar/locknut |
| W | 5 mm | Width of flats |
Calculation factors
| f0 | 13.6 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B | |
| Flinger shields | 2C | Flinger shield on both sides |
