Main Dimensions & Performance Data
| lk max | 4,000 mm | Max. length 1 |
| DW | 2.5 mm | Rolling element diameter |
| b | 33.5 mm | |

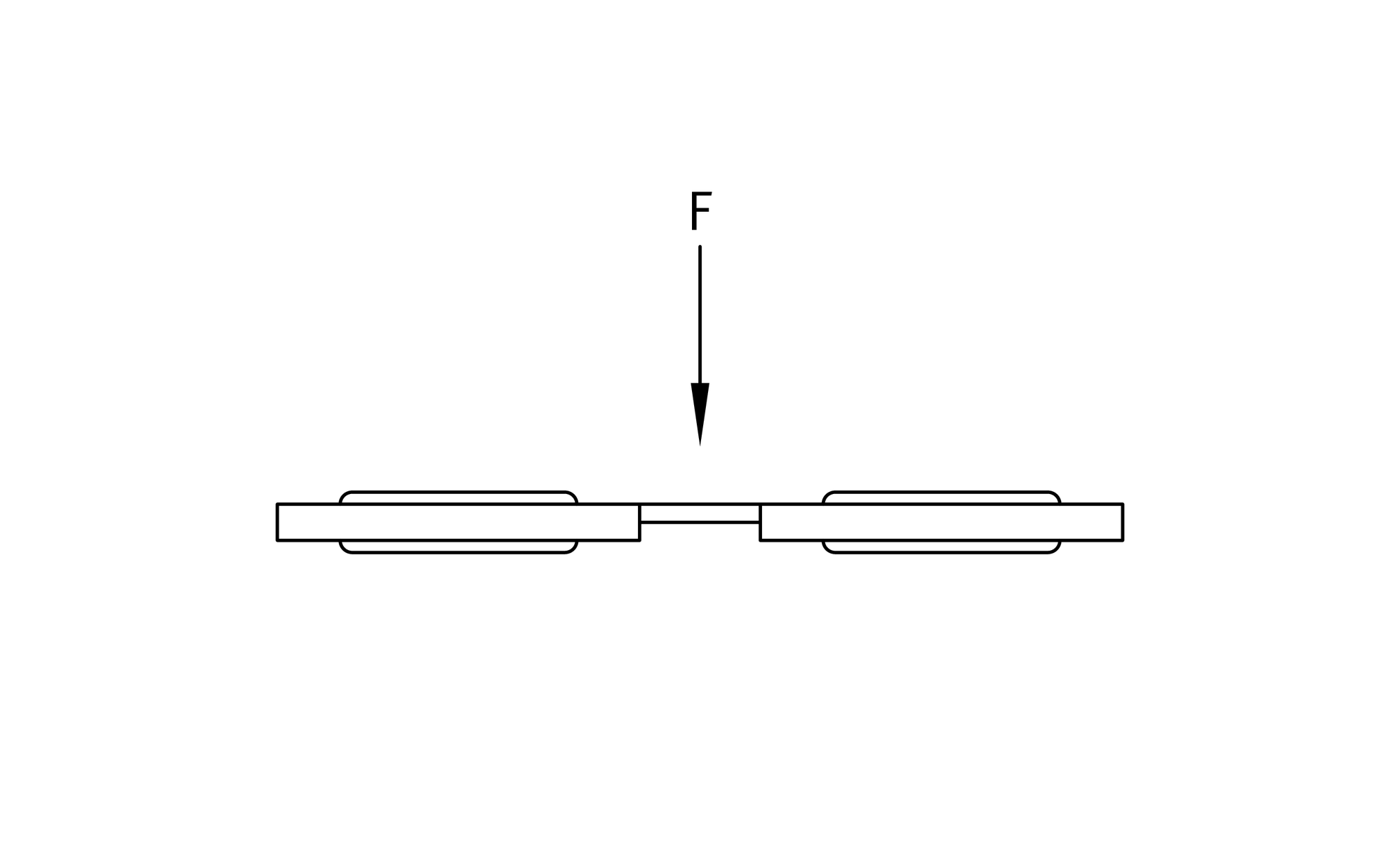

| C | 57,000 N | Load capacity dyn. 2 |
| C0 | 188,800 N | Load capacity stat. 2 |
| ≈m | 239 g/m | Weight |

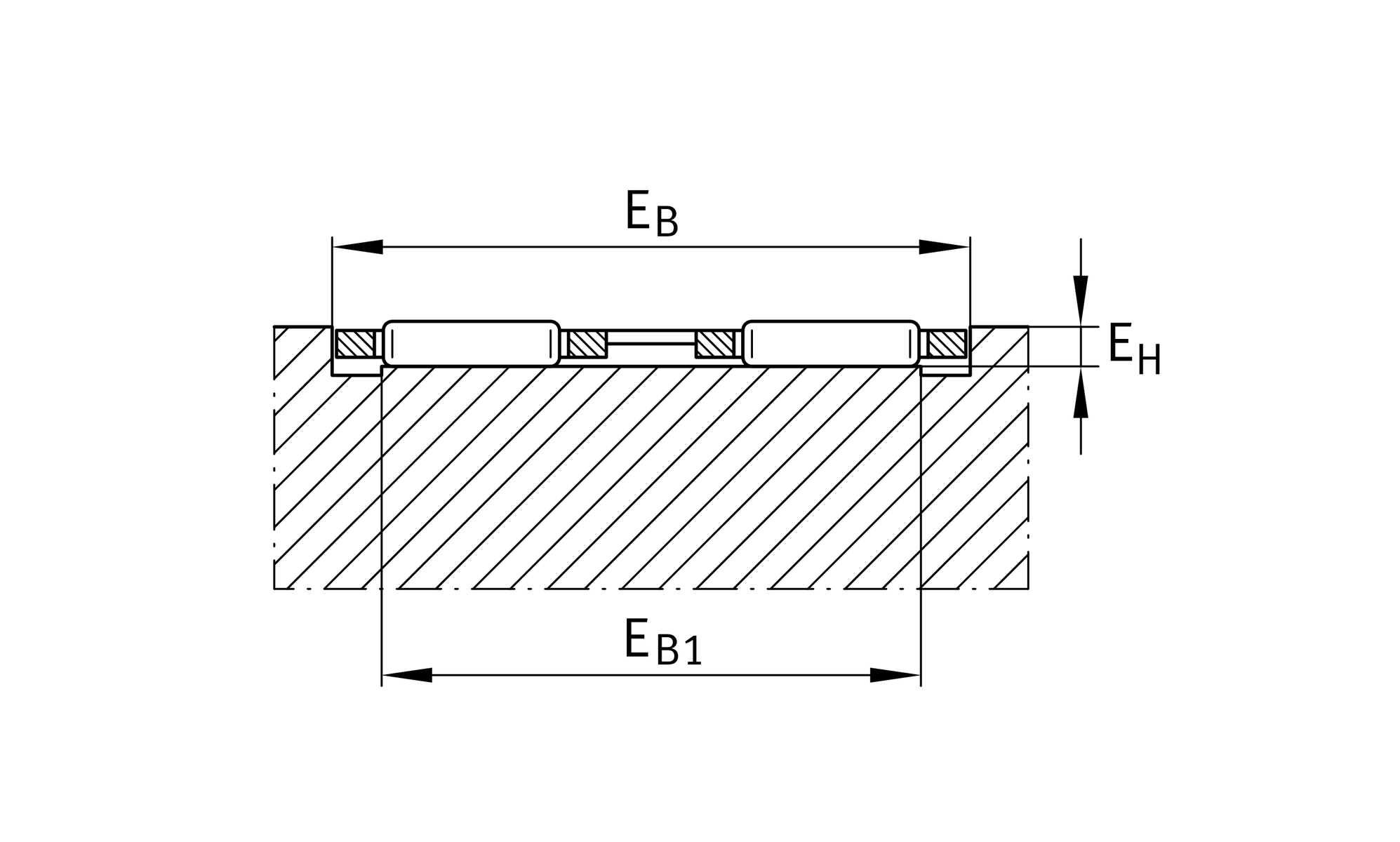

Mounting dimensions
| EB | 34 mm | |
| Tol EB | +0,2 | tolerance |
| EB1 | 28.5 mm | min. |
| EH | 22 mm |

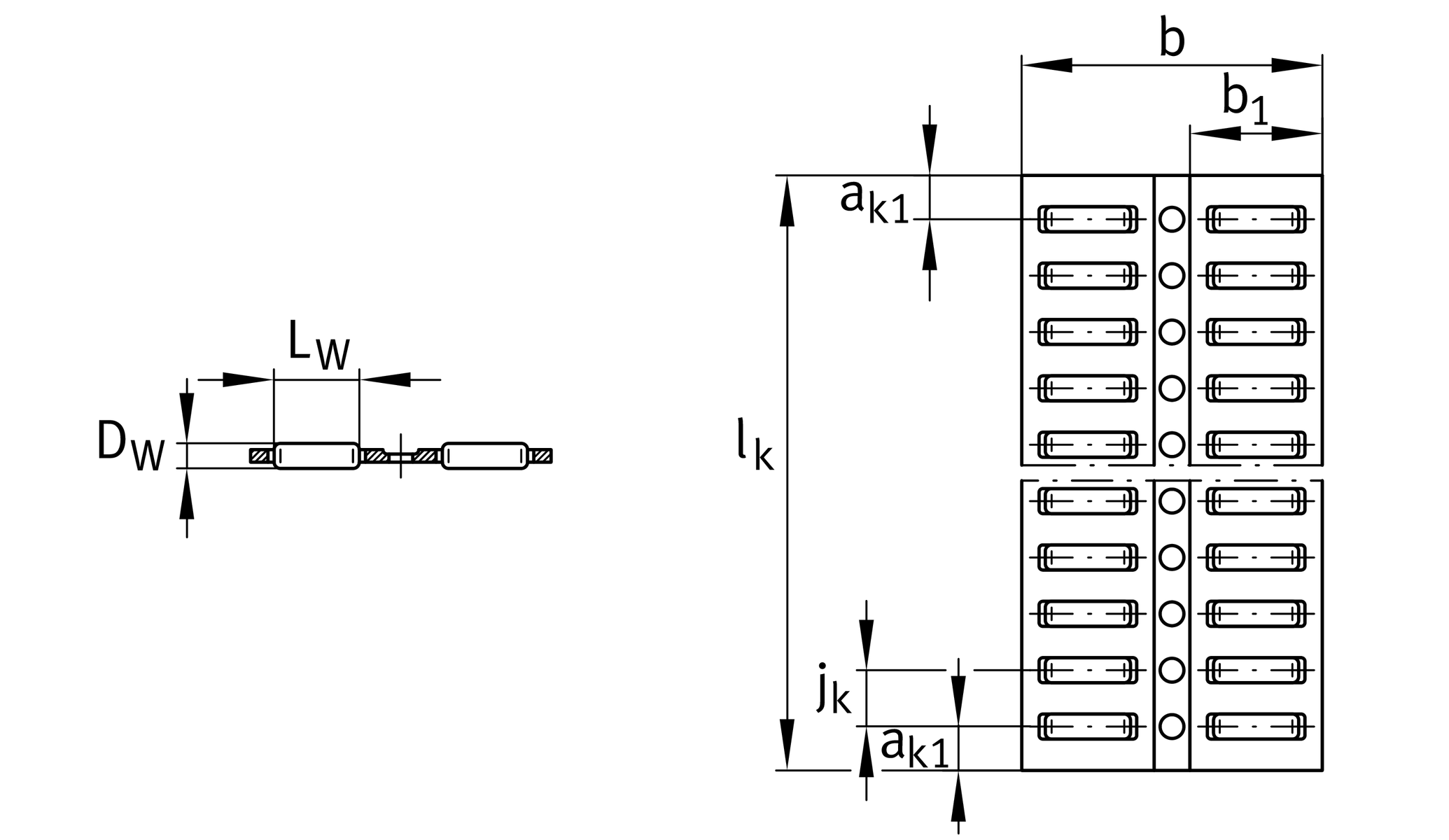

Dimensions
| LW | 9.8 mm | Length rolling element |
| b1 | 14.3 mm | |
| jk | 5.5 mm | |
| ak1 | 4 mm |
Related products
J7040, S7040 | Associated rail |
Your current product variant
| Size code | 34 | |
| Number of rolling element rows | ZW | Double-row design |
