Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| B | 23 mm | Width |
| Cr | 19,400 N | Basic dynamic load rating, radial |
| C0r | 6,500 N | Basic static load rating, radial |
| Cur | 415 N | Fatigue load limit, radial |
| nG | 5,400 1/min | Limiting speed |
| ≈m | 0.502 kg | Weight |

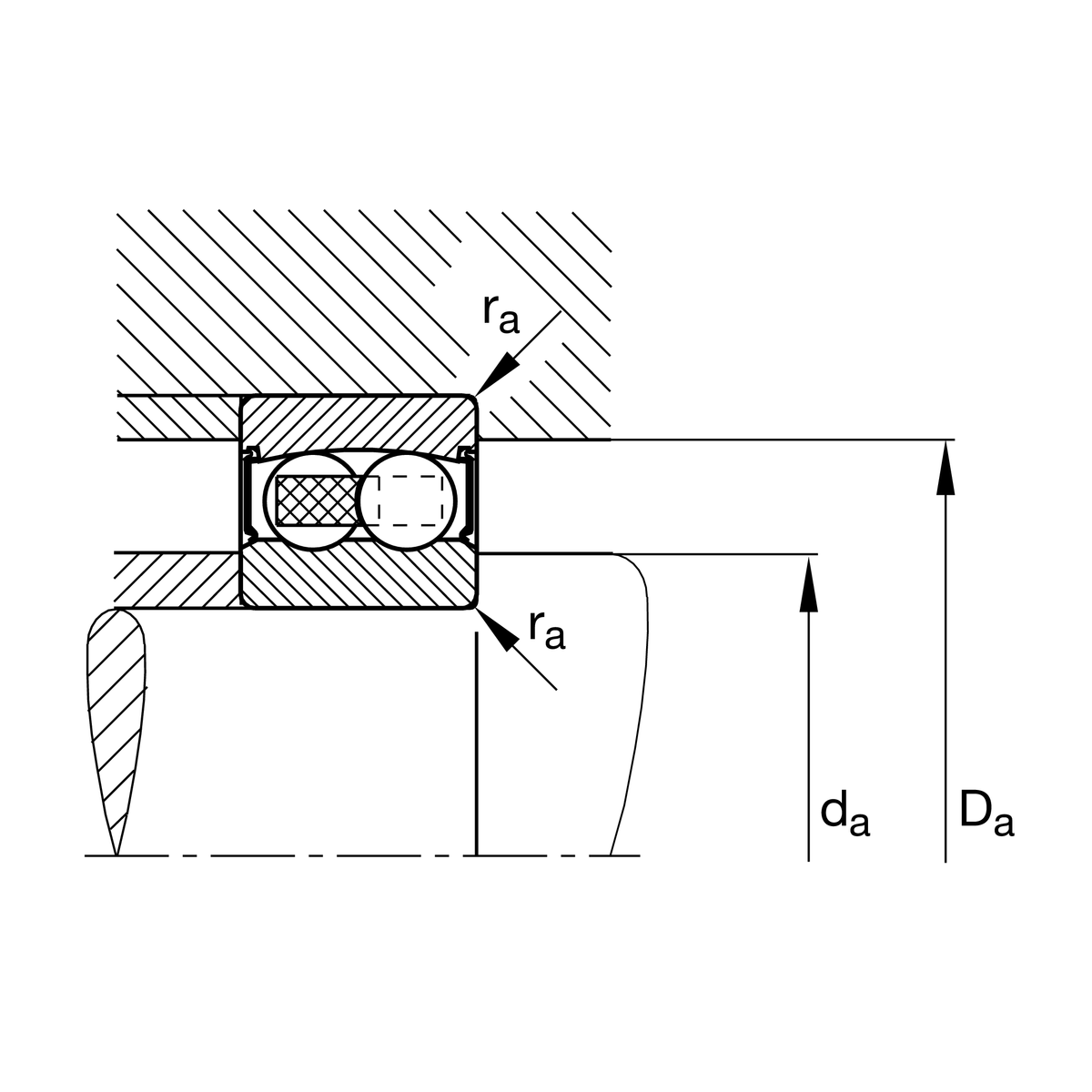

Mounting dimensions
| da min | 47 mm | Minimum diameter shaft shoulder |
| Da max | 73 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius |

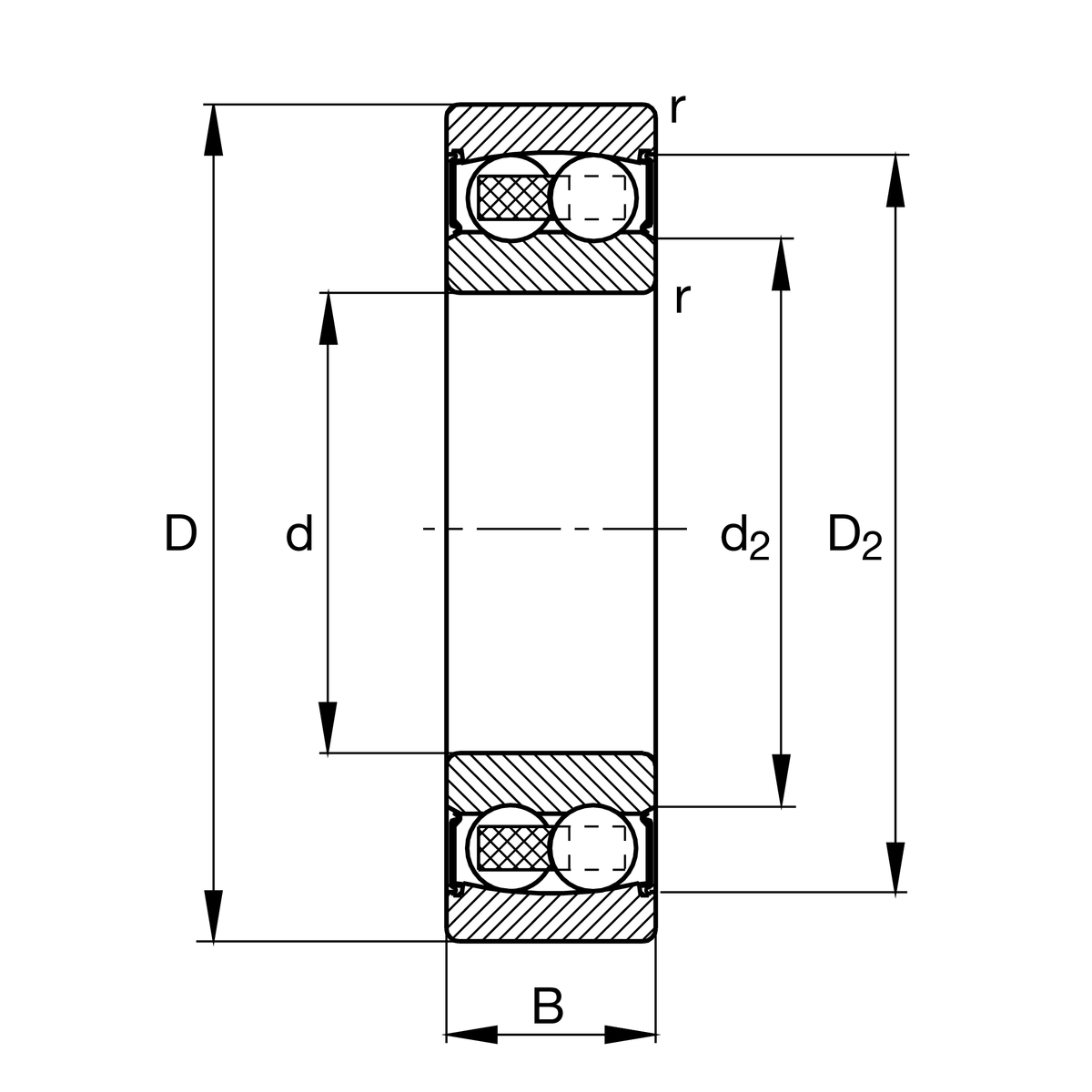

Dimensions
| rmin | 1.1 mm | Minimum chamfer dimension |
| D1 | 67.3 mm | Shoulder diameter outer ring |
| D2 | 70.34 mm | Caliber diameter outer ring |
| d1 | 54 mm | Shoulder diameter inner ring |
| d2 | 49.22 mm | Caliber diameter inner ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Calculation factors
| e | 0.22 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.91 | Dynamic axial load factor |
| Y2 | 4.51 | Dynamic axial load factor |
| Y0 | 3.05 | Static axial load factor |
Your current product variant
| Bore type | Z | Cylindrical |
| Sealing | 2RS | Contact seal on both sides |
| Cage | TVH | solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | PN | Normal (PN) |
| Lubricant | GA13 | Ball bearing and insert bearing grease, standard for D>62mm |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
