FAG INA Schaeffler
INA
CSCG075
Deep groove ball bearing CSCG075
Thêm vào yêu cầu báo giá

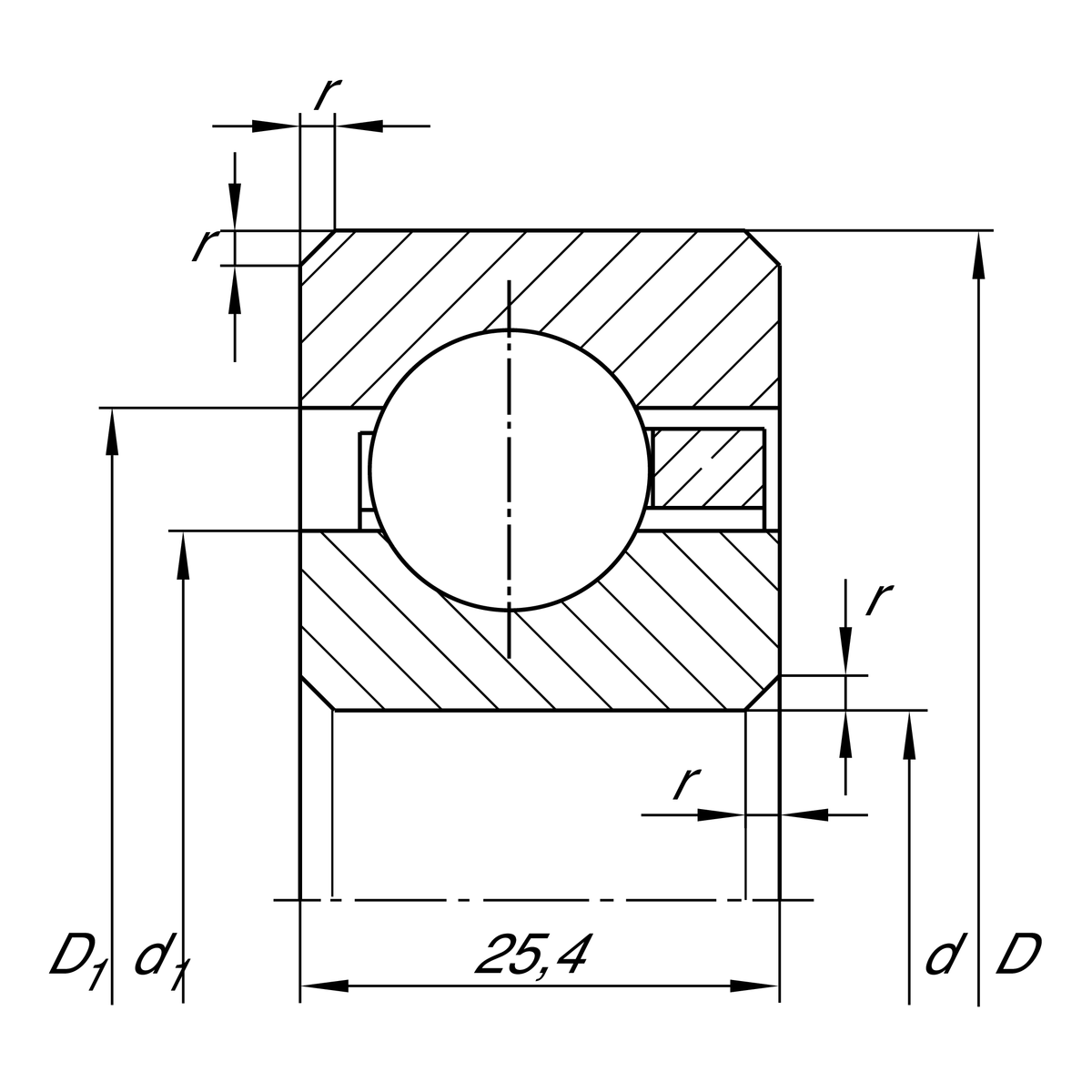

Main Dimensions & Performance Data
d
190.5 mm
Bore diameter
D
241.3 mm
Outside diameter
B
25.4 mm
Width
Cr
46,500 N
Basic dynamic load rating, radial
C0r
53,000 N
Basic static load rating, radial
nG
2,450 1/min
Limiting speed
≈m
2.77 kg
Weight

Dimensions
rmin
2 mm
Minimum chamfer dimension
d1
209.4 mm
Shoulder diameter inner ring
D1
222.5 mm
Shoulder diameter outer ring

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
Logistical codeHLE-
SealingWithoutNot sealed
CageYHbrass sheet metal
Tolerance classPL1Class PL1, Normal
Radial internal clearancePL1Class PL1, Normal
LubricantWithoutBearing not greased
