Main Dimensions & Performance Data
| d | 42.8625 mm | Bore diameter |
| d | 42.862 mm | Bore diameter, inch |
| DSP | 85 mm | Outside diameter |
| B | 42.9 mm | Width |
| Cur | 1,060 N | Fatigue load limit, radial |
| B1 | 56.5 mm | Locking collar total width |
| Cr | 32,500 N | Basic dynamic load rating, radial |
| C0r | 20,400 N | Basic static load rating, radial |
| ≈m | 0.854 kg | Weight |

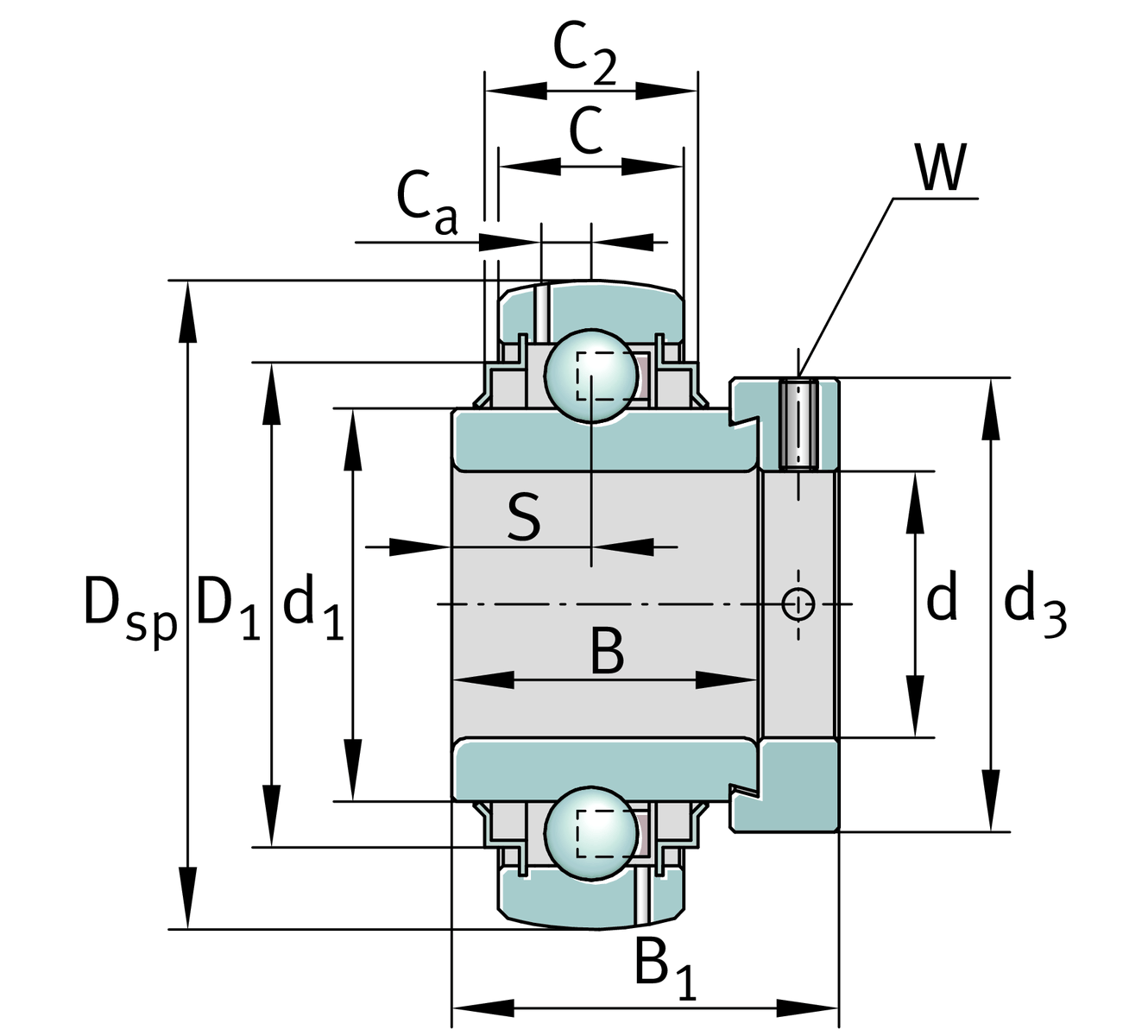

Dimensions
| C | 22 mm | Width, outer ring |
| C2 | 25.7 mm | Sealing total width |
| S | 21.4 mm | Distance raceway |
| d1 | 57.9 mm | Rib diameter inner ring |
| D1 | 72.3 mm | Outside diameter seal |
| Ca | 6.4 mm | Distance to lubrication hole |
| d3 | 63 mm | Outside diameter locking collar/locknut |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| f0 | 14.1 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B | |
| Lubrication hole transposed | AS2/V | AS2/V |
| Manufacturing instruction | FA106 | Bearing subjected to special noise testing |
