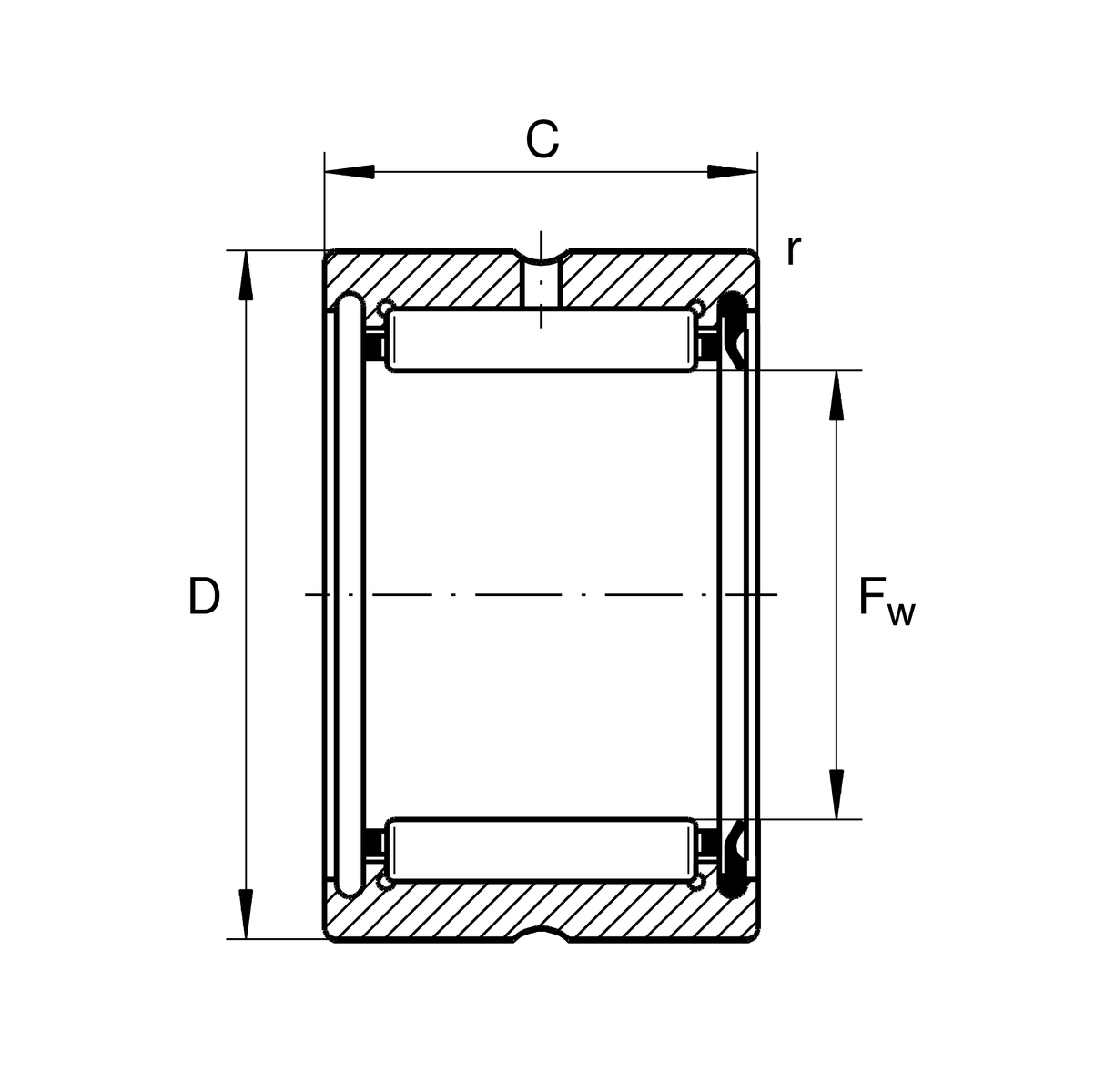

Main Dimensions & Performance Data
| Fw | 42 mm | Under roller diameter |
| D | 55 mm | Outside diameter |
| C | 20 mm | Width, outer ring |
| Cr | 29,500 N | Basic dynamic load rating, radial |
| C0r | 39,500 N | Basic static load rating, radial |
| Cur | 7,400 N | Fatigue load limit, radial |
| nG | 6,400 1/min | Limiting speed |
| ≈m | 108 g | Weight |
Dimensions
| rmin | 0.6 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Cage | Standard | |
| Cage feature | Standard |
