Main Dimensions & Performance Data
| d | 38.1 mm | Bore diameter |
| D | 47.625 mm | Outside diameter |
| B | 4.763 mm | Width |
| Cr | 2,050 N | Basic dynamic load rating, radial |
| C0r | 1,860 N | Basic static load rating, radial |
| nG | 14,300 1/min | Limiting speed |
| ≈m | 20 g | Weight |

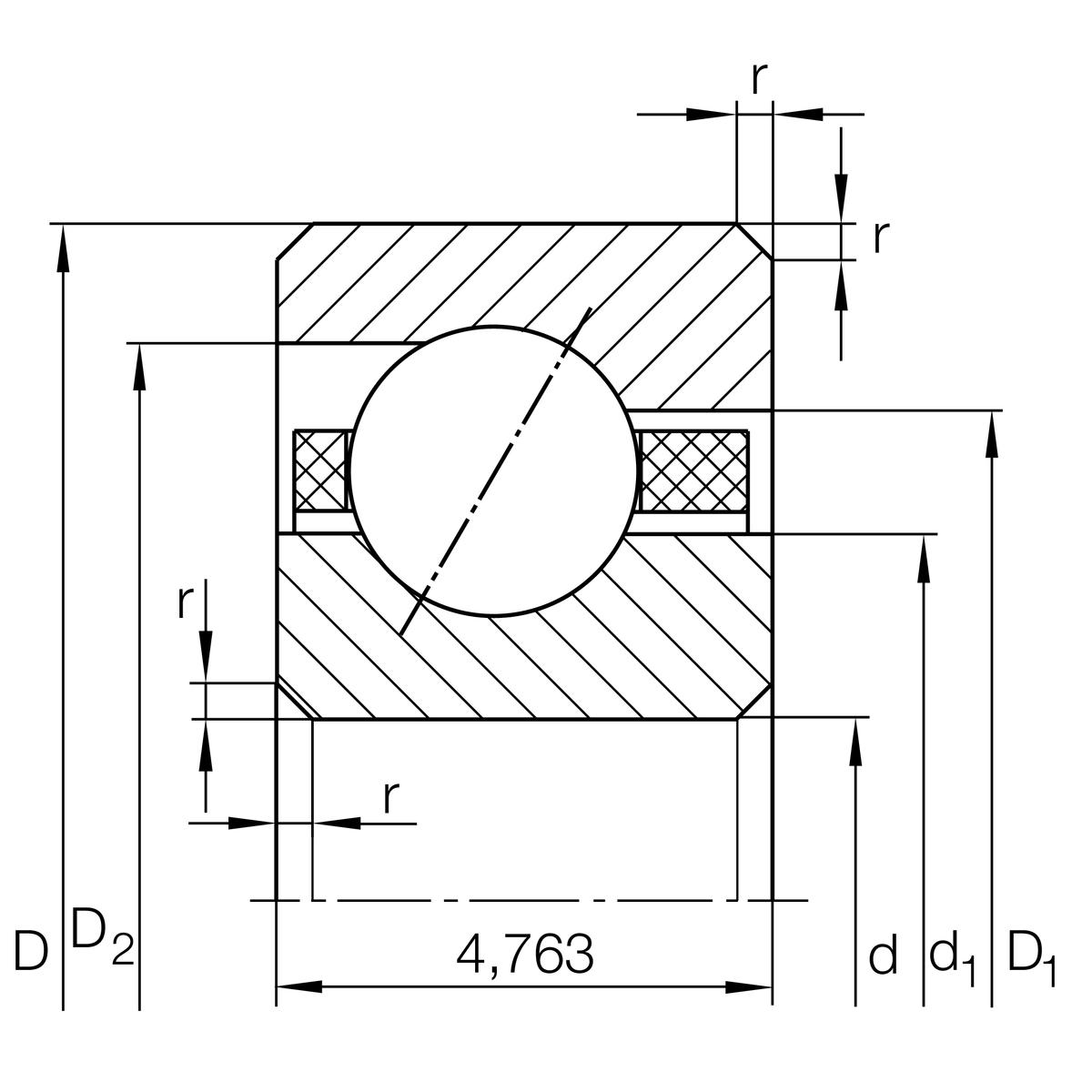

Dimensions
| rmin | 0.38 mm | Minimum chamfer dimension |
| d1 | 41.7 mm | Shoulder diameter inner ring |
| D1 | 44.1 mm | Shoulder diameter on outer ring wide side face |
| D2 | 45.1 mm | Shoulder diameter on outer ring small side face |
| α | 30 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Logistical code | HLE | - |
| Sealing | Without | Not sealed |
| Cage | TV | Plastic Cage made from PA66 |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
