FAG INA Schaeffler
INA
IR38X43X30-XL
Inner ring IR38X43X30-XL
Thêm vào yêu cầu báo giá

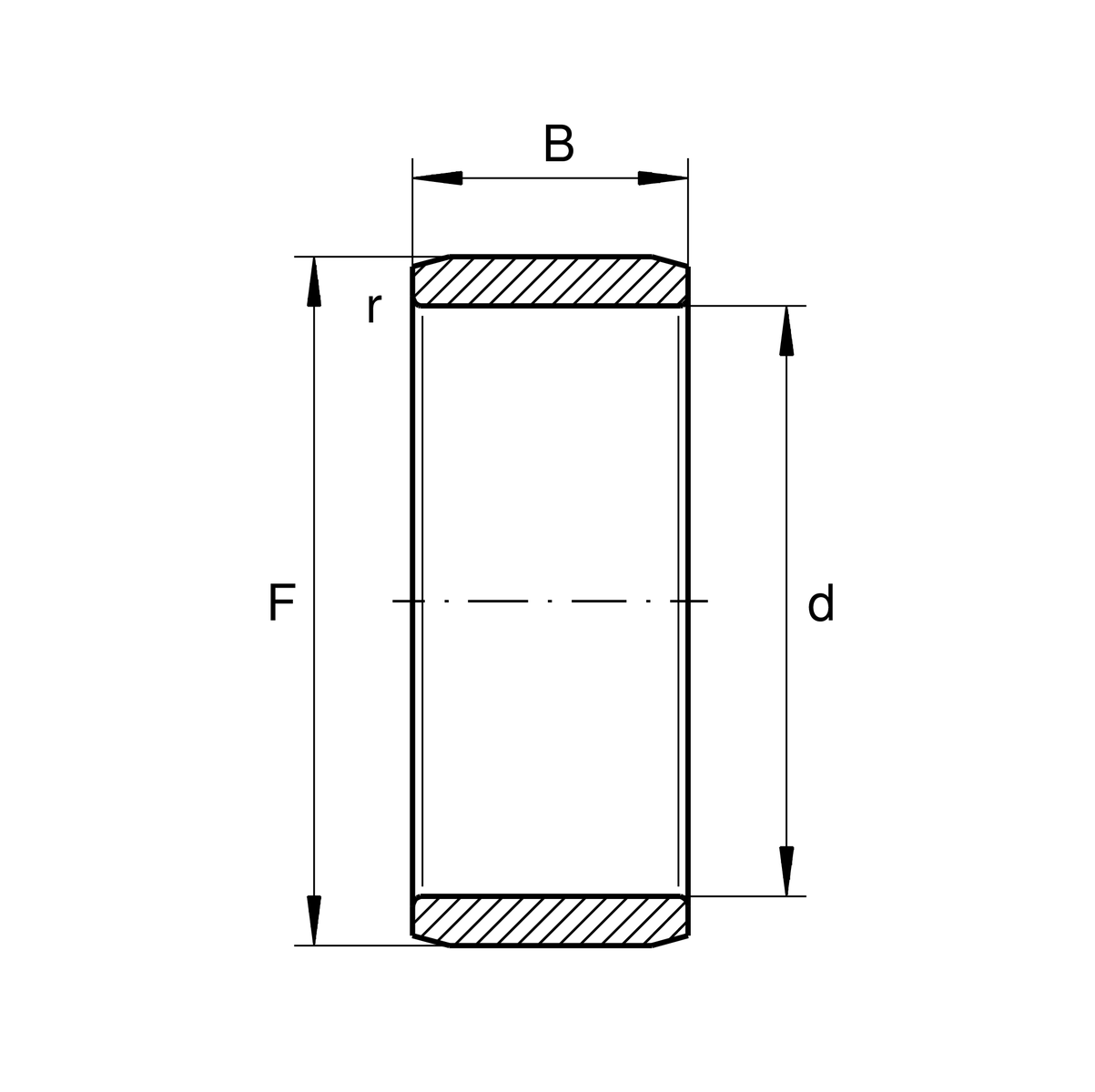

Main Dimensions & Performance Data
d
38 mm
Bore diameter
F
43 mm
Raceway diameter inner ring
B
30 mm
Width
0 µm
Raceway diameter upper tolerance
-0.009 µm
Raceway diameter lower tolerance
rmin
0.3 mm
Minimum chamfer dimension
≈m
73.2 g
Weight

Your current product variant
Lubrication holeWithout
Special featuresWithout
