Main Dimensions & Performance Data
| d | 40 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| B | 28 mm | Width |
| Cr | 101,000 N | Basic dynamic load rating, radial |
| C0r | 91,000 N | Basic static load rating, radial |
| Cur | 12,100 N | Fatigue load limit, radial |
| nG | 2,600 1/min | Limiting speed |
| ≈m | 0.546 kg | Weight |

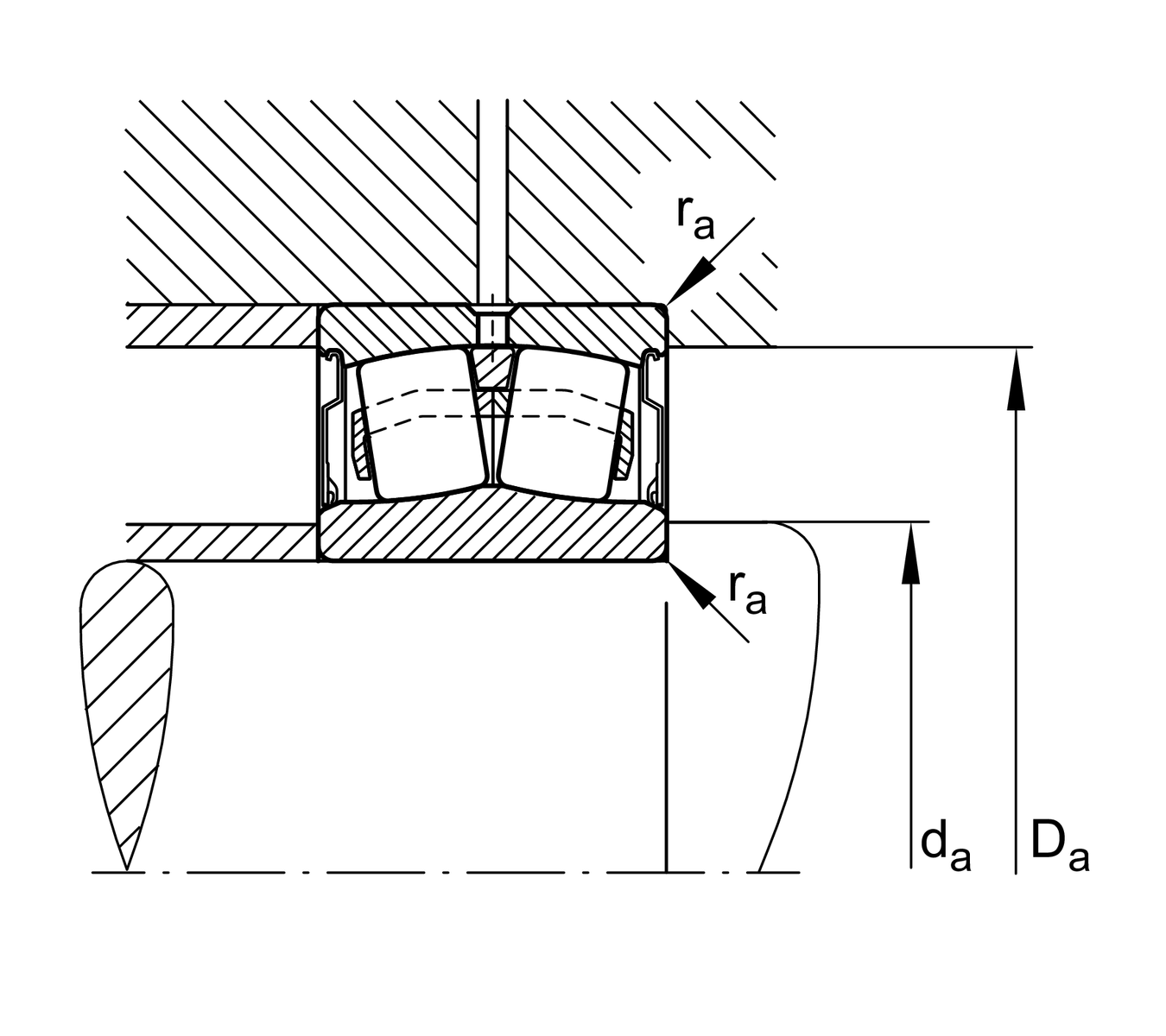

Mounting dimensions
| da min | 45.9 mm | Minimum diameter shaft shoulder |
| Da max | 73 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum recess radius |

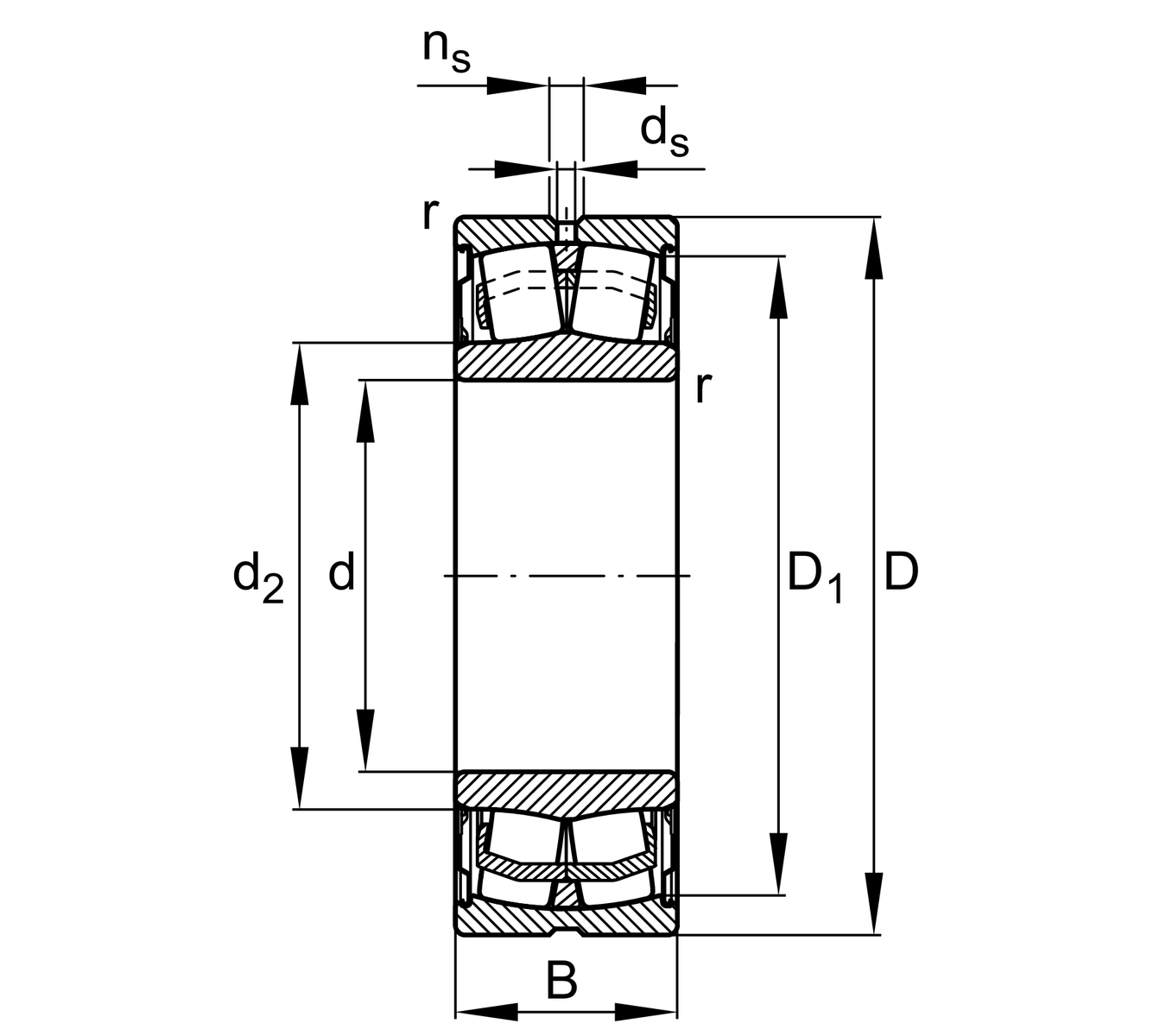

Dimensions
| rmin | 1.1 mm | Minimum chamfer dimension |
| D1 | 72.6 mm | Bore diameter outer ring |
| d2 | 45.9 mm | Raceway diameter of the inner ring |
| ds | 3.2 mm | Diameter lubrication hole |
| ns | 4.8 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 180 °C | Operating temperature max. |
Calculation factors
| e | 0.27 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.49 | Dynamic axial load factor |
| Y2 | 3.71 | Dynamic axial load factor |
| Y0 | 2.43 | Static axial load factor |
Your current product variant
| Design | E1 | without central rip |
| Bore type | Z | Cylindrical |
| Cage | JPA | Sheet metal cage |
| Radial internal clearance | C4 (Group 4) | Internal clearance larger than C3 |
| Relubrication feature | Standard | |
| Sealing | 2VSR | Seals on both sides, high temperature |
| Sealing - excess width | WS | Sealing - excess width |
