S3034-H-N-FZ-AB-L
Plummer block housing S3034-H-N-FZ-AB-L
Thêm vào yêu cầu báo giá

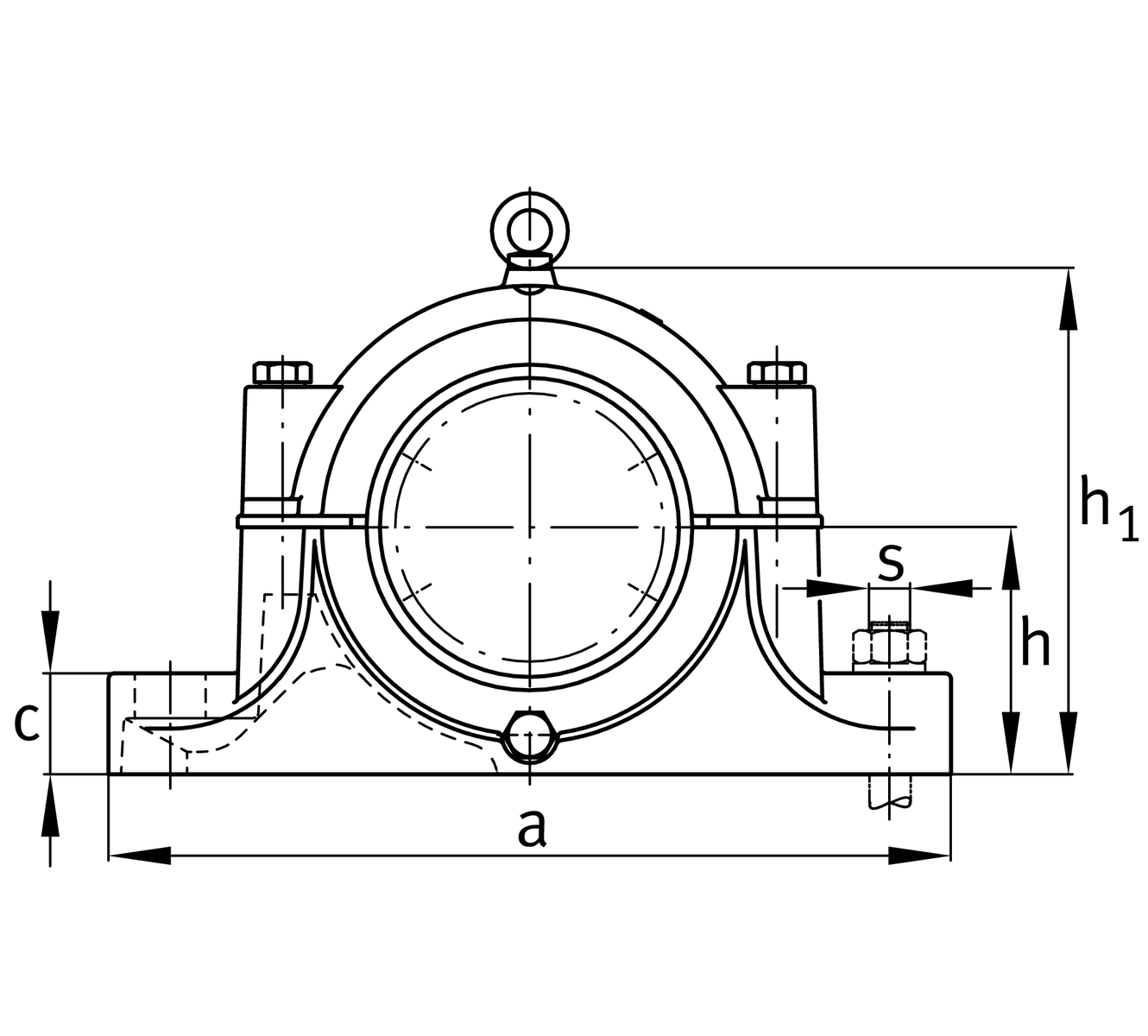

Main Dimensions & Performance Data
d1
150 mm
shaft diameter
a
540 mm
Length base
h1
320 mm
total height
g
200 mm
Width housing
≈m
48.8 kg
Weight

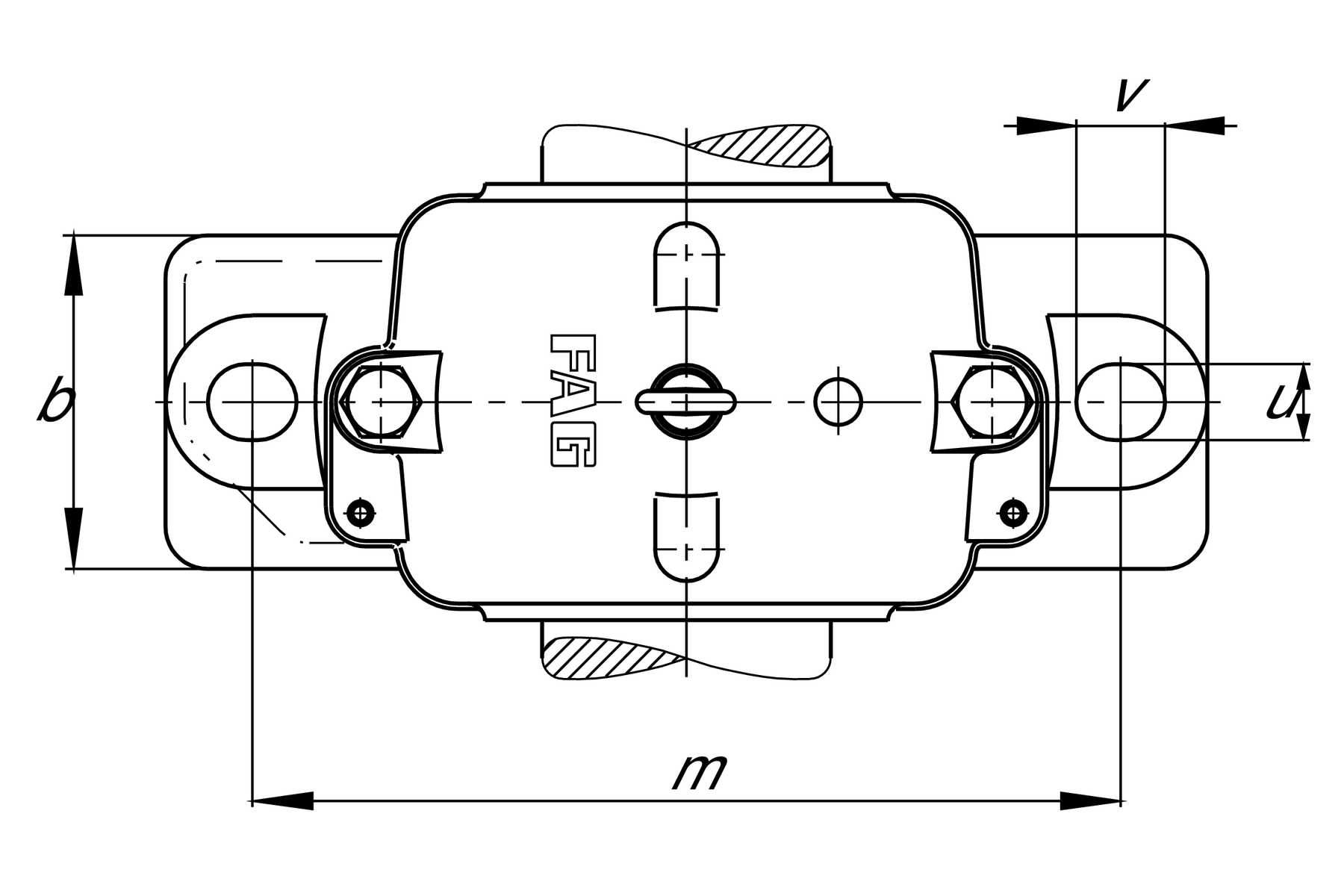

Dimensions
M10x1
Connection thread for lubrication
b
160 mm
Width base
c
55 mm
Height foot
D
260 mm
Outside diameter bearing
g3
25 mm
Wall thickness g3
h
160 mm
Distance shaft axis
m
450 mm
Distance fixing bore
s
M30
size of fixing screw
s
28.575 mm
Screw size
u
36 mm
Width oblong hole
v
48 mm
Lenght oblong hole
