FAG INA Schaeffler
FAG
S3030-H-N-FZ-AB-L
Plummer block housing S3030-H-N-FZ-AB-L
Thêm vào yêu cầu báo giá

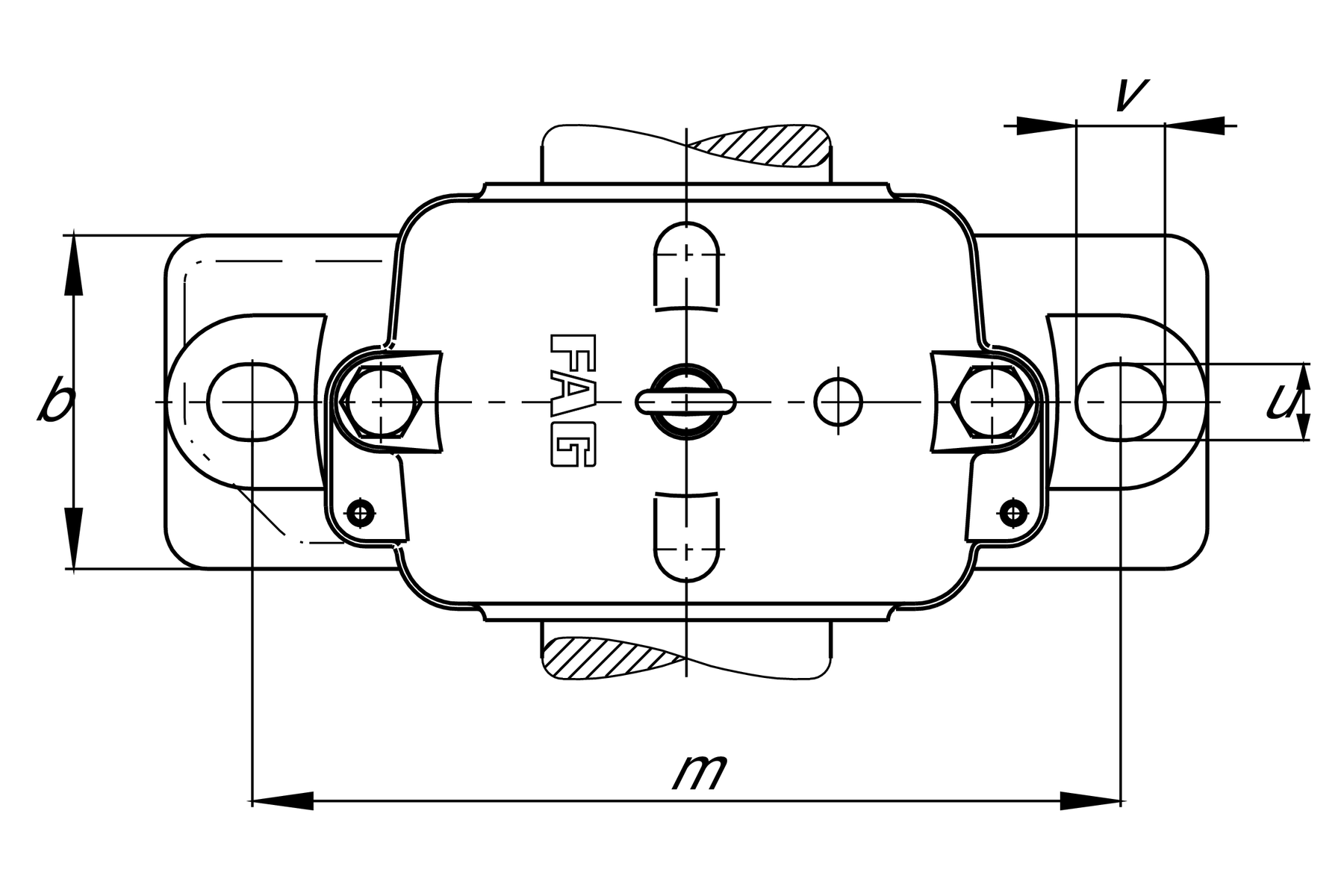

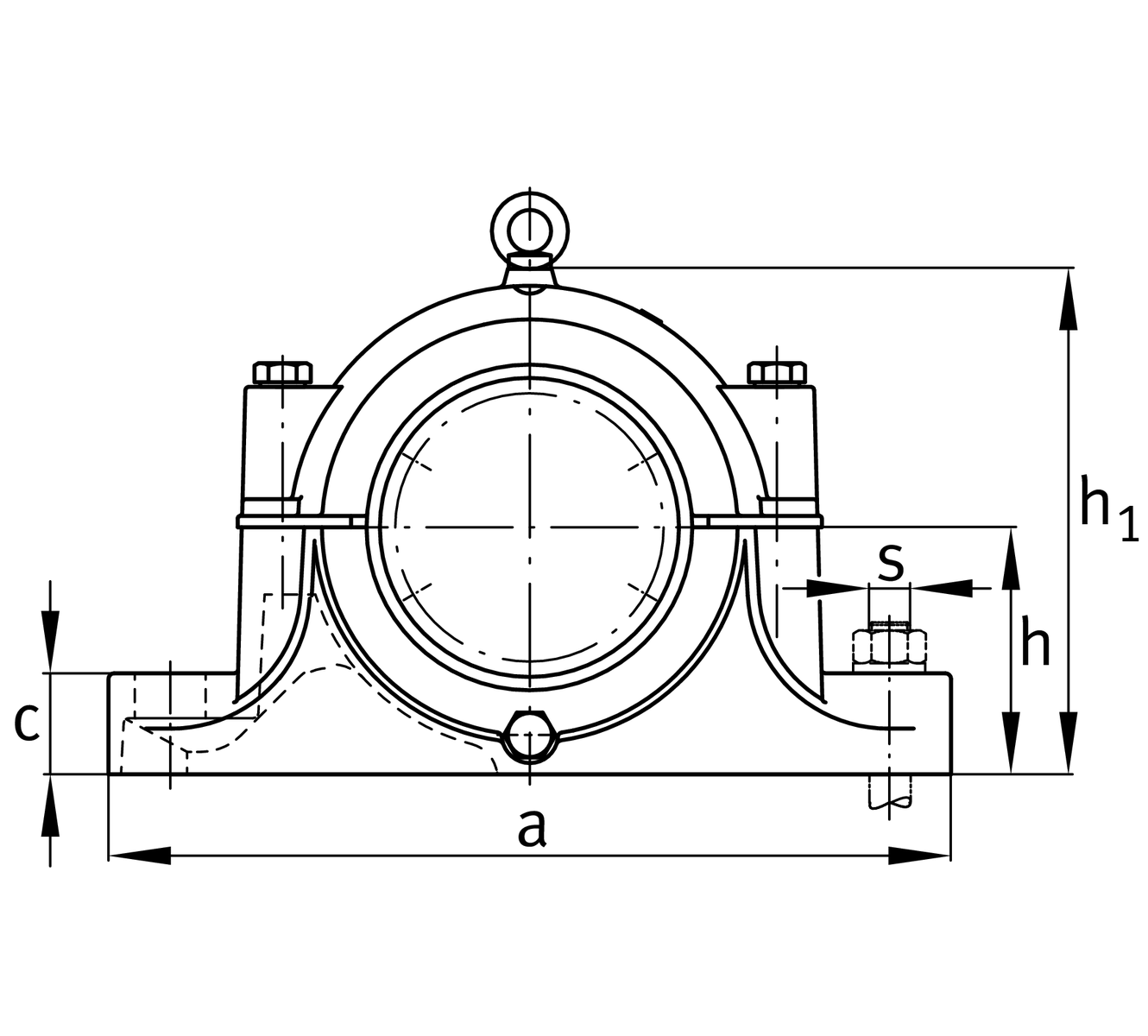

Main Dimensions & Performance Data
d1
135 mm
shaft diameter
a
460 mm
Length base
h1
278 mm
total height
g
175 mm
Width housing
≈m
29 kg
Weight

Dimensions
M10x1
Connection thread for lubrication
b
130 mm
Width base
c
45 mm
Height foot
D
225 mm
Outside diameter bearing
g3
21 mm
Wall thickness g3
h
150 mm
Distance shaft axis
m
380 mm
Distance fixing bore
s
M24
size of fixing screw
s
25.4 mm
Screw size
u
30 mm
Width oblong hole
v
36 mm
Lenght oblong hole
