Flanged housing unit UKFL208

Thêm vào yêu cầu báo giá

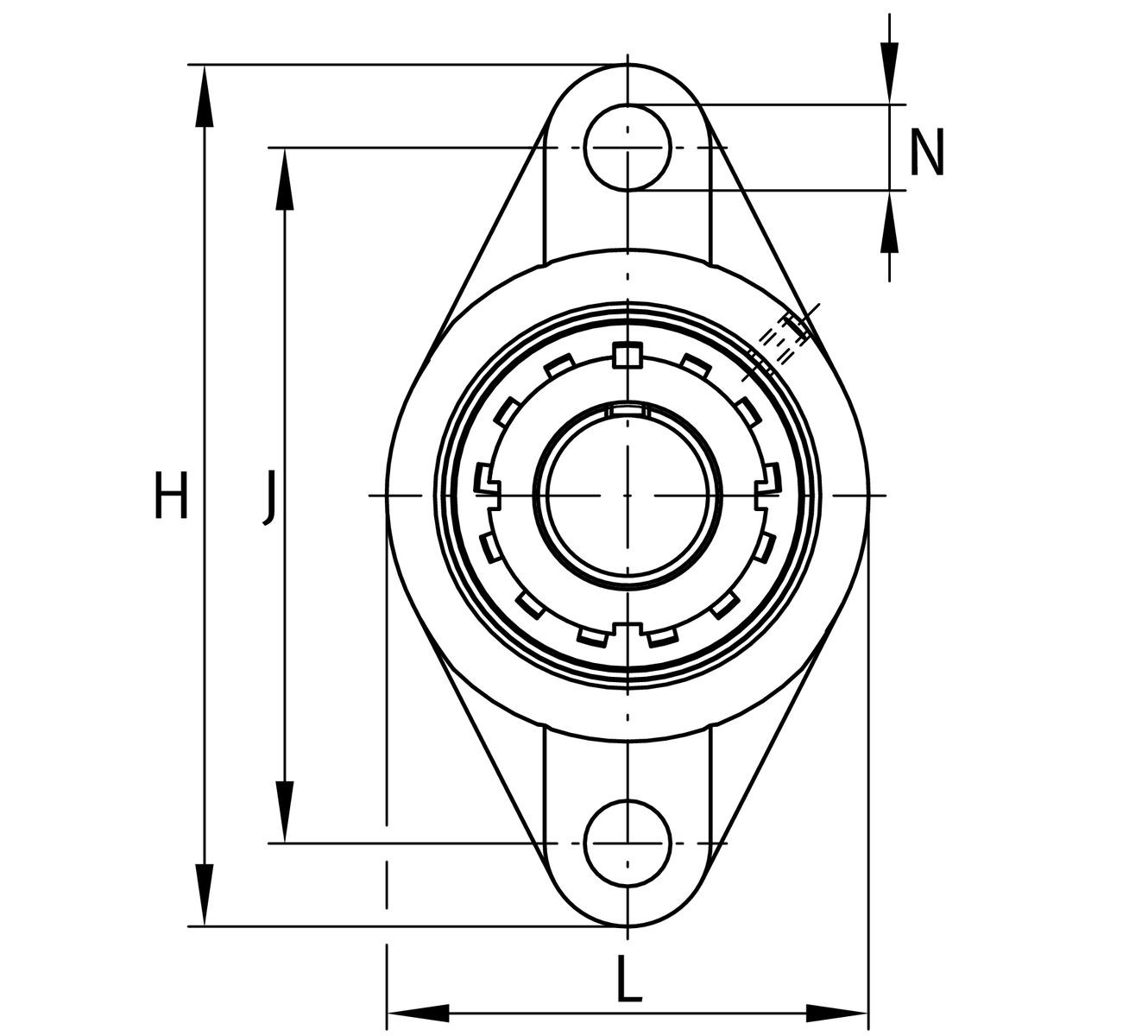

Main Dimensions & Performance Data

d	35 mm	Bore diameter
L	100 mm	Flange width
H	175 mm	Height flange
C_r	34,500 N	Basic dynamic load rating, radial
C_0r	19,800 N	Basic static load rating, radial
C_ur	1,030 N	Fatigue load limit, radial
≈m	1.57 kg	Weight

Mounting dimensions

J	144 mm	Distance fixing bore
N	16 mm	Fixing bore
n	2	Number of screwing holes

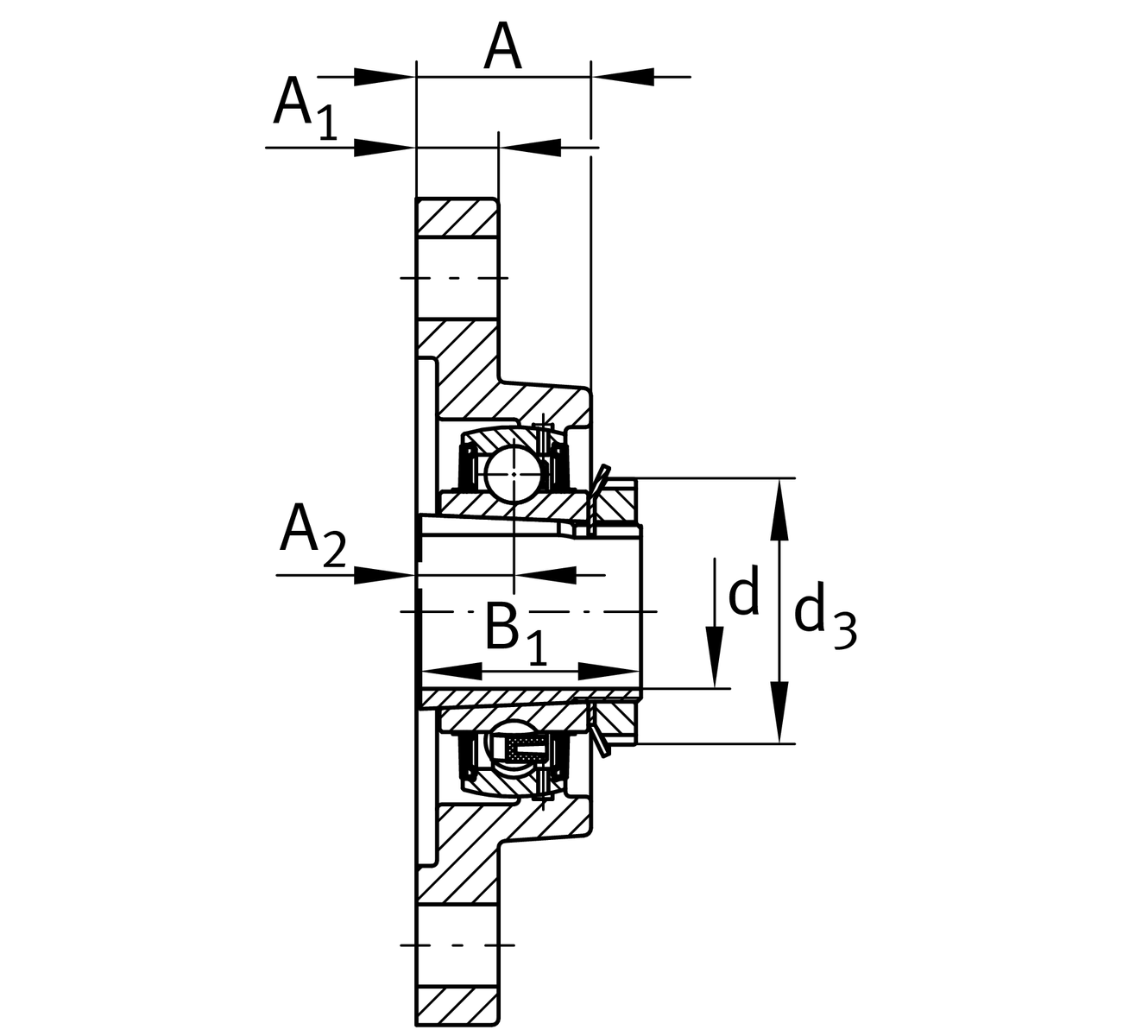

Dimensions

A	36 mm	Height housing
A₁	16 mm	Thickness of flange
A₂	21 mm	Distance raceway
B	31 mm	Width
B₁	46 mm	Locking collar total width
d₃	58 mm	Outside diameter eccentric locking collar

Additional information

	1	Number of housings
	FL208	Housing
	UK208	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
