RUKS45-D-A-H-SR
Braking/clamping element RUKS45-D-A-H-SR
Thêm vào yêu cầu báo giá

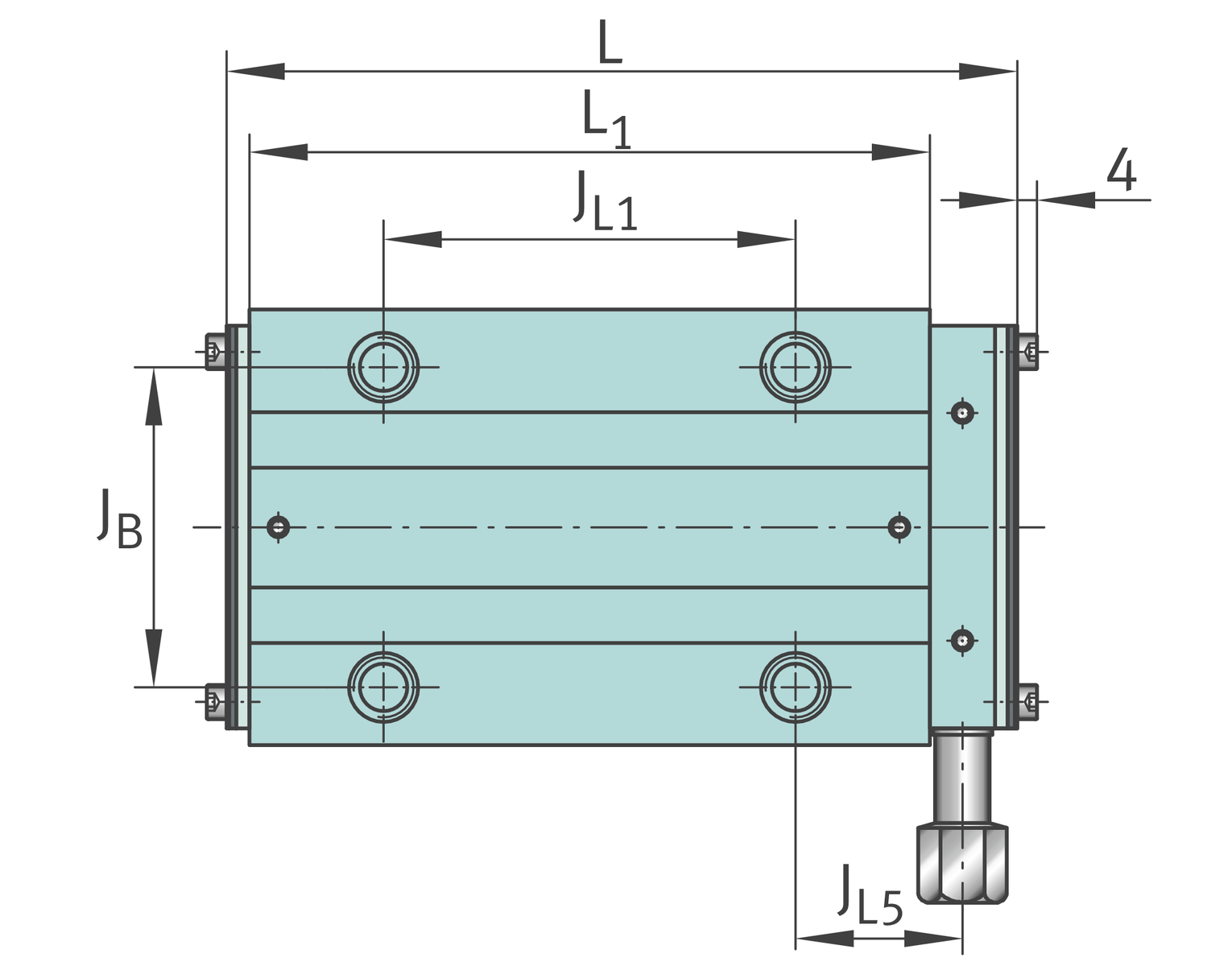

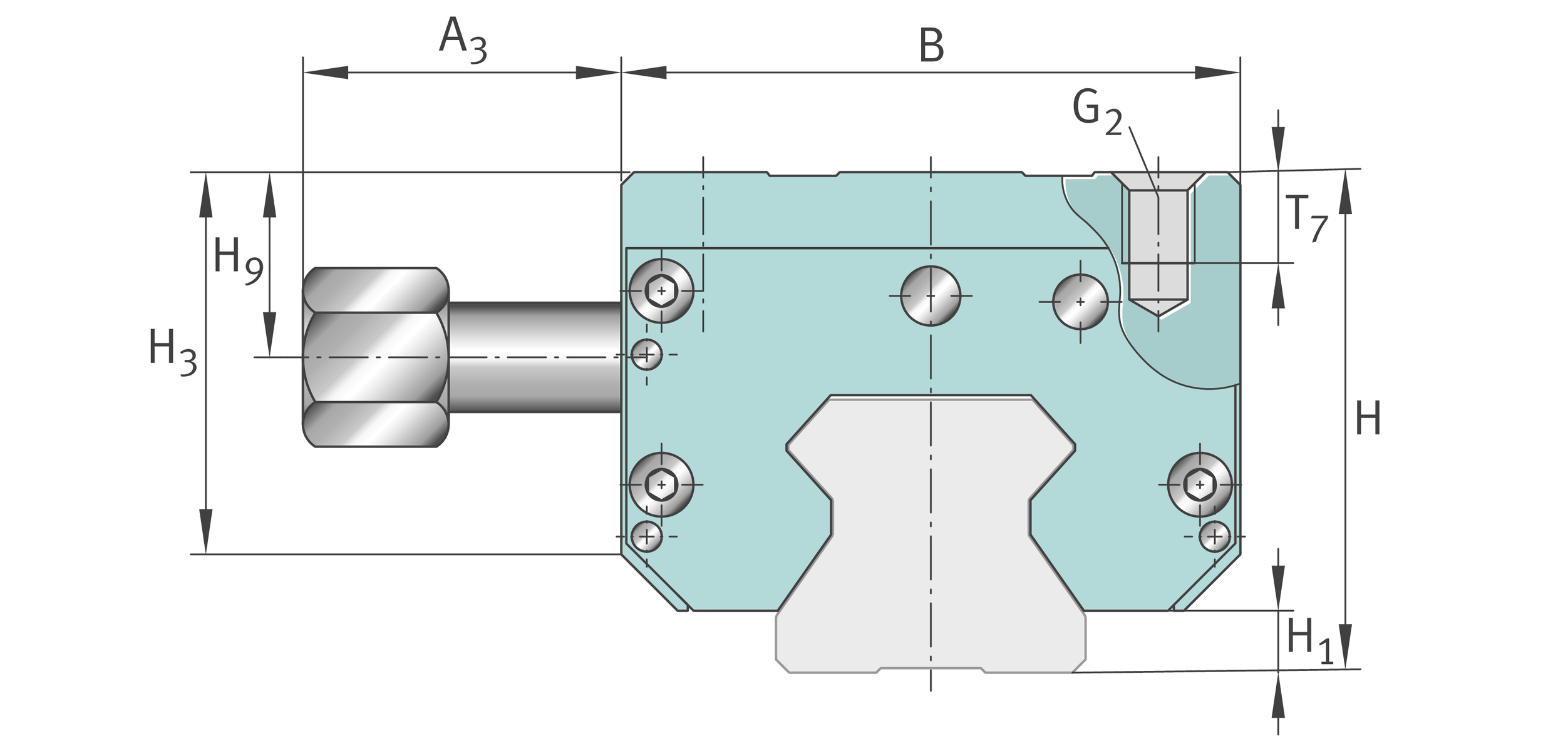

Main Dimensions & Performance Data
H
70 mm
Height sytem
B
84 mm
Width clamping element
L
156.6 mm
Length of clamping element
≈m
4.22 kg
Weight

Mounting dimensions
JB
60 mm
Hole pattern width
A3
39 mm
Mounting dimension oil connector
L1
134 mm
Length saddle plate
JL1
60 mm
Hole pattern lengthwise
JL5
43.5 mm
Distance
N2 max
6 mm
Max diameter lubrication hole adjacent constr
H1
8.7 mm
Space (system)
H3
58.3 mm
T7
12.5 mm
Depth thread
H9
25.8 mm
G2
M10
Size thread above for DIN ISO 4762-12.9
M G2
83 Nm
Tightening torque above 1

Related products
TSX45-E; TSX45-F
Suitable guideway
RUE45-E; RUE45-F
Suitable system

Your current product variant
Size code45
VersionD
Internal designA
Carriage designHhigh carriage

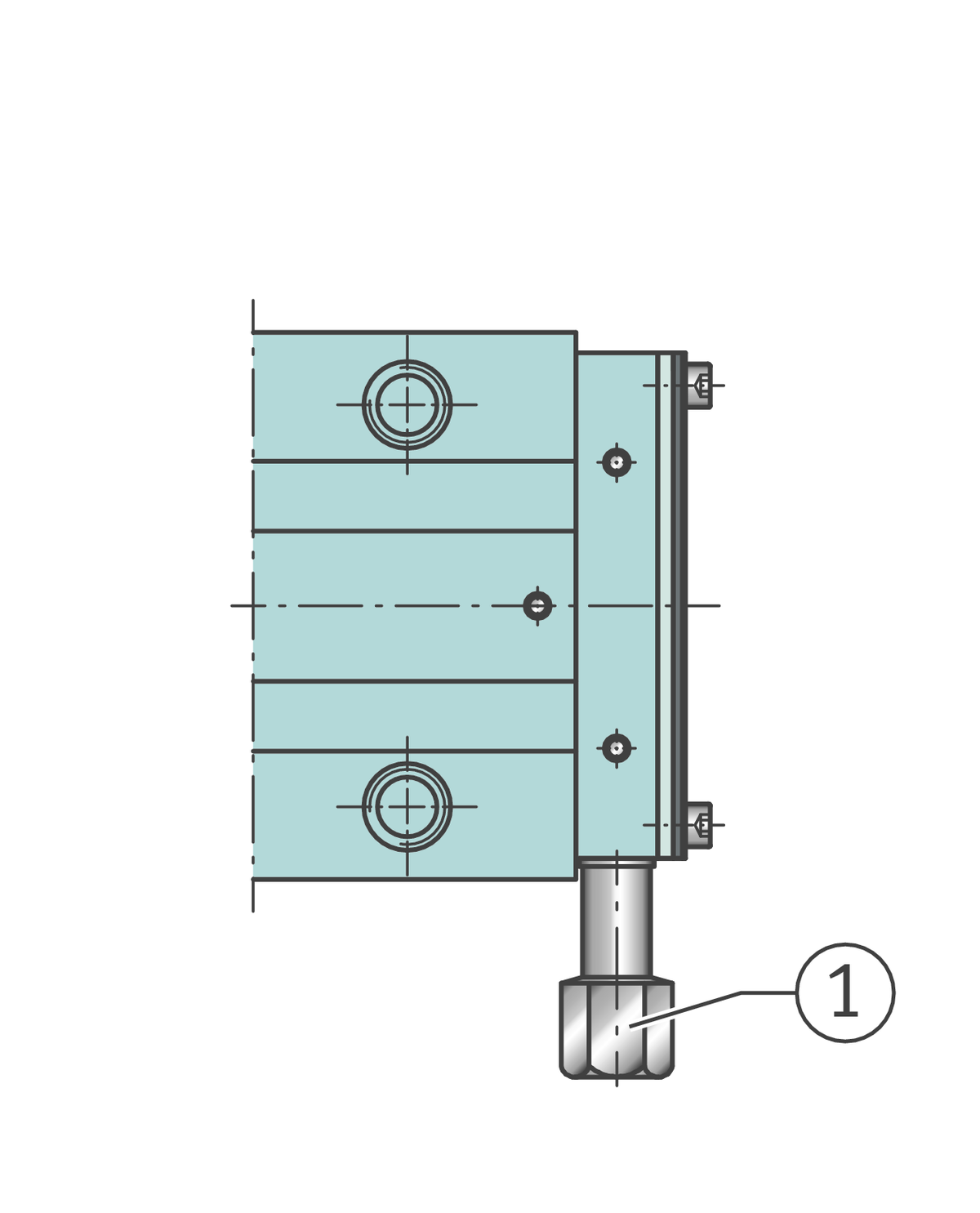

Oil connectorSROil connector on side
